MX29LV640ETTI-70G

64Mbit Parallel NOR Flash, Top Boot, 4 banks, 70ns, 2.7-3.6V, 48-TSOP

10825

Effective Inventory
Go to Inquiry

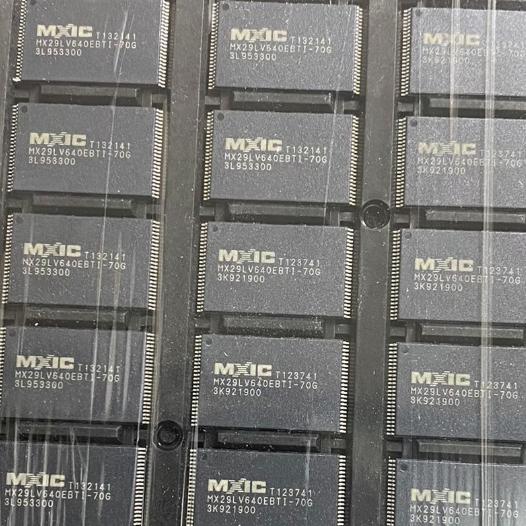

Image for reference only

Manufacturer Part：

MX29LV640ETTI-70G

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX29LV640ETTI-70G is a 64Mbit parallel NOR Flash memory from Macronix’s MX29LV640E series featuring top boot sector architecture. It supports x8/x16 selectable organization via BYTE# pin and offers 70ns access time at 2.7V-3.6V supply. The device comes in a 48-TSOP package and operates over industrial temperature range of -40°C to +85°C. With 4 banks and advanced features like simultaneous read/program, sector protection, and CFI support, it provides high-density code storage for demanding embedded applications.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 64Mbit (8M x 8 / 4M x 16)
Interface Parallel (Asynchronous)
Access Time 70 ns
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP
Architecture Top Boot sector (4 banks)
Endurance 100,000 cycles typical
Data Retention 20 years

Features

  • 64Mbit density with top boot architecture
  • 4 bank architecture for concurrent operations
  • Byte/Word mode switchable via BYTE# pin
  • Fast access time: 70ns at 3.0V-3.6V
  • Fast program: 9us/word typical
  • Fast sector erase: 0.7s typical
  • Low power CMOS design
  • Sector protection and chip unprotect
  • Hardware Ready/Busy# (RY/BY#) output
  • Hardware Reset (RESET#) input
  • WP#/ACC for accelerated program capability
  • JEDEC standard compatible
  • CFI (Common Flash Interface) support
  • RoHS compliant

Applications

  • High-density embedded system code storage
  • Industrial control and automation
  • Networking and telecom equipment
  • Automotive electronics
  • Medical devices
  • Set-top boxes and digital TVs
  • Consumer electronics
  • Aerospace and defense systems

The MX29LV640ETTI-70G is a 64Mbit 3V parallel NOR Flash memory from Macronix featuring top boot sector architecture and 4-bank organization. It supports both x8 and x16 data bus widths via the BYTE# pin selection. With 70ns access time at full 3V supply voltage, it delivers fast read performance suitable for code execution (XIP) applications. The 4-bank architecture divides the 64Mbit memory into four independent 16Mbit banks, enabling read-while-program or read-while-erase operations across different banks for improved system throughput. The top boot architecture places small parameter/boot sectors at the top of the memory address space. Key features include sector protection, chip unprotect, hardware RY/BY# status pin, hardware reset, WP#/ACC for accelerated programming, and CFI (Common Flash Interface) support. The 48-pin TSOP package provides a standard form factor for high-density parallel flash applications. It is in active production and suitable for a wide range of industrial, automotive, and consumer applications requiring reliable high-density non-volatile storage.

The MX29LV640E operates as a 4-bank asynchronous parallel NOR Flash memory. The 64Mbit memory is organized as four 16Mbit banks, each independently controllable. This architecture allows concurrent operations across different banks: while one bank is performing a program or erase operation, another bank can be read normally, eliminating system wait states. In read mode, data is accessed by providing the address and activating CE# and OE#. The BYTE# pin configures x8 (byte) or x16 (word) mode, with DQ15/A-1 serving as either the 16th data bit or the LSB address bit. Program and erase operations are initiated via commands written to the command register, with an internal state machine handling all timing. Status is monitored via DQ7 data polling, DQ6 toggle bit, and the RY/BY# hardware pin. The top boot architecture features small boot sectors at the highest addresses and uniform main sectors. Sector protection and WP# pin provide hardware and software protection against accidental modification.

Pin Type Name Count Description
Address A0-A21 22 Address inputs for 4M word / 8M byte addressing
Data DQ0-DQ14 15 Data input/output lines
Data/Addr DQ15/A-1 1 DQ15 in word mode / A-1 in byte mode
Control CE# 1 Chip Enable, active low
Control OE# 1 Output Enable, active low
Control WE# 1 Write Enable, active low
Control RESET# 1 Hardware Reset, active low
Status RY/BY# 1 Ready/Busy, open drain output
Mode BYTE# 1 Byte/Word mode select
Protect WP#/ACC 1 Write Protect / Accelerated Program
Power VCC 2+ 2.7V-3.6V power supply
Power GND 2+ Ground
Other NC Remaining No internal connection
  • High-density embedded code and data storage
  • Industrial control and automation systems
  • Telecom and networking infrastructure
  • Automotive ADAS and infotainment
  • Medical imaging and equipment
  • Digital set-top boxes and smart TVs
  • Consumer electronics products
  • Aerospace and defense electronics
Manufacturer Part Number Description
Macronix MX29LV640EBTI-70G 64Mbit NOR Flash, Bottom Boot, 48-TSOP
Cypress/Spansion S29GL064N90TFI030 64Mbit NOR Flash, 90ns, 48-TSOP
Micron JS28F640J3D75A 64Mbit StrataFlash, 75ns, 48-TSOP
ISSI IS29LV640D-70TLI 64Mbit Parallel Flash, 70ns, TSOP
