MX29LV800CBTI-70G

8Mbit Parallel NOR Flash, Bottom Boot, 70ns, 2.7-3.6V, 48-TSOP

9345

Effective Inventory
Go to Inquiry

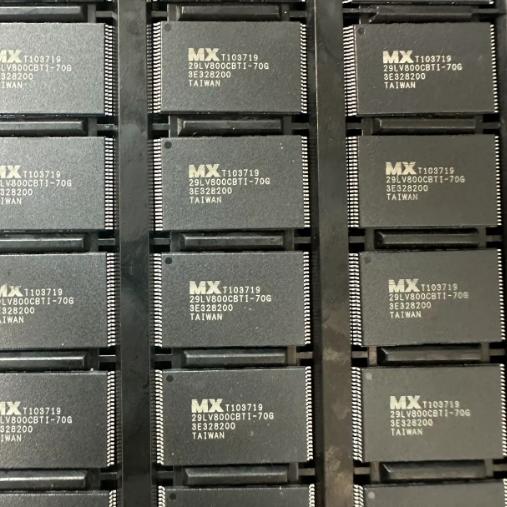

Image for reference only

Manufacturer Part：

MX29LV800CBTI-70G

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX29LV800CBTI-70G is an 8Mbit parallel NOR Flash memory from Macronix’s MX29LV800C series featuring bottom boot sector architecture. It supports x8/x16 selectable organization via BYTE# pin and offers 70ns access time at 2.7V-3.6V supply voltage. The device comes in a 48-TSOP package and operates over industrial temperature range of -40°C to +85°C. With features like sector protection, hardware RY/BY#, and CFI support, it provides reliable code storage for embedded systems.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 8Mbit (1M x 8 / 512K x 16)
Interface Parallel (Asynchronous)
Access Time 70 ns
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP
Architecture Bottom Boot sector
Endurance 100,000 cycles typical
Data Retention 20 years

Features

  • 8Mbit density with bottom boot sector architecture
  • Byte/Word mode switchable via BYTE# pin
  • Fast access time: 70ns at 3V supply
  • Fast program time: 9us/word typical
  • Fast erase time: 0.7s/sector typical
  • Low power CMOS design
  • Sector protect and chip unprotect functions
  • Hardware Ready/Busy# (RY/BY#) output
  • Hardware Reset (RESET#) input
  • WP#/ACC for accelerated program
  • JEDEC standard compatible
  • CFI (Common Flash Interface) support
  • RoHS compliant

Applications

  • Embedded system code storage
  • Industrial control systems
  • Networking and communication equipment
  • Consumer electronics
  • Automotive electronics
  • Medical devices
  • Set-top boxes
  • Boot code and firmware storage

The MX29LV800CBTI-70G is an 8Mbit 3V parallel NOR Flash memory from Macronix’s MX29LV800C series featuring bottom boot sector architecture. It supports both x8 and x16 data bus widths, configurable via the BYTE# pin. With 70ns access time at 2.7V-3.6V supply voltage, it provides fast read performance for code execution applications. The device features bottom boot architecture with small parameter/boot sectors at the bottom of the memory map and larger uniform main sectors, ideal for boot loader and application code storage. Key features include sector protection, chip unprotect, hardware RY/BY# status pin, hardware reset, WP#/ACC for accelerated programming, and CFI (Common Flash Interface) support. The 48-pin TSOP package provides a standard form factor compatible with other 8Mbit parallel flash devices. With 100K program/erase cycle endurance and 20-year data retention, it is a reliable choice for embedded systems requiring moderate-density non-volatile storage.

The MX29LV800C operates as an asynchronous parallel NOR Flash memory with bottom boot architecture. When CE# and OE# are active (low) and WE# is inactive (high), data is read from the memory array addressed by A0-A18. The BYTE# pin controls the data bus width: high for 16-bit word mode (DQ0-DQ15), low for 8-bit byte mode (DQ0-DQ7 with DQ15/A-1 as address A-1). Program and erase operations are commanded through the command register interface, following JEDEC standard conventions. An internal state machine automatically handles all program and erase timing and algorithms. Status is available via DQ7 (Data Polling), DQ6 (Toggle Bit), and the RY/BY# hardware pin. The bottom boot architecture places small 8KB/16KB boot sectors at the lowest memory addresses, with the remainder divided into 64KB uniform sectors. Sector protection allows locking sectors against program/erase operations, and the WP# pin provides hardware write protection.

Pin Number Pin Name Type Description
A0-A18 Address Inputs Input 19 address lines for full 8Mbit addressing
DQ0-DQ14 Data I/O I/O Data input/output lines
DQ15/A-1 Data I/O / A-1 I/O DQ15 (word mode) / A-1 address (byte mode)
CE# Chip Enable Input Active low chip enable
OE# Output Enable Input Active low output enable for read mode
WE# Write Enable Input Active low write enable
RESET# Hardware Reset Input Active low hardware reset
RY/BY# Ready/Busy Output Open drain ready/busy status
BYTE# Byte/Word Select Input Byte mode (low) / Word mode (high)
WP#/ACC Write Protect/ACC Input Write protect / accelerated program input
VCC Power Supply Power 2.7V to 3.6V supply voltage
GND Ground Ground Device ground
  • Embedded system firmware and boot code
  • Industrial control and automation
  • Networking equipment and modems
  • Consumer electronic products
  • Automotive electronics
  • Medical device firmware
  • Set-top boxes and receivers
  • Configuration and parameter storage
Manufacturer Part Number Description
Macronix MX29LV800CTTI-70G 8Mbit NOR Flash, Top Boot, 48-TSOP
Cypress/Spansion S29AL008D70BAI010 8Mbit NOR Flash, Bottom Boot, 48-TSOP
Micron JS28F800C3BD70A 8Mbit StrataFlash, 70ns, 48-TSOP
ISSI IS29LV080B-70BLI 8Mbit Parallel Flash, Bottom Boot, TSOP
