MX30LF4G18AC-TI

4Gbit Parallel SLC NAND Flash, x8, 2KB page, 4-bit ECC, 2.7-3.6V, 48-TSOP

3456

Effective Inventory
Go to Inquiry

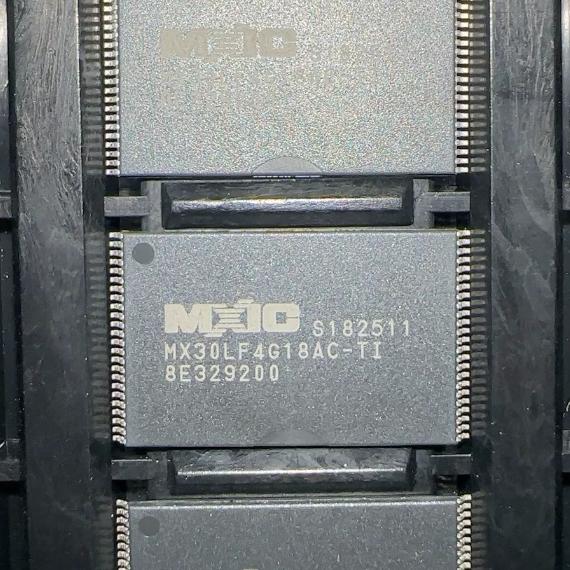

Image for reference only

Manufacturer Part：

MX30LF4G18AC-TI

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX30LF4G18AC-TI is a 4Gbit SLC NAND Flash memory from Macronix featuring standard parallel NAND interface with x8 bus width. It operates from 2.7V to 3.6V and is ONFI 1.0 compliant. The device features 2KB page size, 128KB block size, and requires 4-bit ECC (4b/528B). Available in a 48-TSOP package for industrial temperature range of -40°C to +85°C. While classified as Not For New Designs (replaced by MX30LF4G28AD with 4KB page and 8-bit ECC), it remains widely used in existing applications and legacy systems.

Key Specifications

Memory Type FLASH – NAND SLC (Non-Volatile)
Memory Size 4Gbit (512MB)
Interface Parallel NAND (ONFI 1.0)
Bus Width x8
Page Size 2048 + 64 bytes
Block Size 128K + 4K bytes
ECC Requirement 4-bit ECC per 528 bytes
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP (12x20mm)

Features

  • 4Gbit SLC (Single Level Cell) NAND Flash
  • x8 data bus width
  • ONFI 1.0 compliant interface
  • Page size: (2K + 64) bytes
  • Block size: (128K + 4K) bytes
  • 4-bit ECC requirement per 528 bytes
  • Fast read latency: 25us max (tR)
  • Sequential read: 20ns min cycle time
  • Page program: 300us typ / 600us max
  • Block erase: 1ms typ / 3.5ms max
  • 100,000 program/erase cycles
  • 10 years data retention
  • 30 OTP pages
  • ONFI standard Unique ID
  • Block protection: PT pin & BP bits
  • RoHS compliant

Applications

  • High-density data storage for embedded systems
  • Digital TVs and set-top boxes
  • Networking equipment and routers
  • Industrial control systems
  • Automotive infotainment
  • Medical devices
  • Consumer electronics
  • Multimedia storage applications

The MX30LF4G18AC-TI is a 4Gbit 3V SLC NAND Flash memory from Macronix. It provides high-density non-volatile storage using Single-Level Cell (SLC) NAND technology for excellent reliability and endurance. The device features a standard parallel NAND interface with x8 data bus width and is ONFI 1.0 compliant. The memory has a page size of 2048+64 bytes and a block size of 128K+4K bytes, requiring 4-bit ECC per 528 bytes for data integrity. Performance specifications include 25us maximum page read latency, 20ns minimum sequential read cycle time, 300us typical page program time, and 1ms typical block erase time. The device supports standard NAND commands including cache read, cache program, copy-back, status read, unique ID read, and block protection. It features 30 OTP (One-Time Programmable) pages and ONFI standard Unique ID. Hardware block protection is available via the PT pin and BP bits. With 100K program/erase cycle endurance and 10-year data retention, it is well-suited for demanding embedded storage applications. Note: This device is Not For New Designs; the recommended replacement is MX30LF4G28AD with 4KB page size and 8-bit ECC.

The MX30LF4G18AC operates as a standard parallel NAND Flash memory with SLC (Single-Level Cell) architecture. Each memory cell stores one bit of data by trapping charge in a floating gate, providing higher reliability and endurance compared to multi-level cell (MLC) NAND. The device uses an 8-bit bidirectional data bus for transferring commands, addresses, and data, controlled by CLE (Command Latch Enable), ALE (Address Latch Enable), CE# (Chip Enable), RE# (Read Enable), and WE# (Write Enable) signals. During a read operation, the addressed page is transferred from the NAND array to the internal page buffer (tR = 25us max), then shifted out via the I/O bus. Program operations load data into the page buffer, then program it into the selected memory cells. Erase operations clear entire blocks of 128KB+4KB. The RY/BY# pin indicates when the device is busy executing an operation. Since SLC NAND naturally has better data retention than MLC, only 4-bit ECC is required. Bad blocks are factory-marked and should be managed by the host system’s bad block management algorithm.

Pin Number Pin Name Type Description
I/O0-I/O7 Data I/O I/O 8-bit data bus – commands, addresses, data
CLE Command Latch Enable Input Enables command latching on WE# rising edge
ALE Address Latch Enable Input Enables address latching on WE# rising edge
CE# Chip Enable Input Active low chip enable
RE# Read Enable Input Active low read strobe
WE# Write Enable Input Active low write strobe
WP# Write Protect Input Active low write protect
RY/BY# Ready/Busy Output Open-drain ready/busy status
VCC Power Power Power supply 2.7V-3.6V
VSS Ground Ground Ground connections
NC No Connection – No internal connection
  • High-density embedded data storage
  • Digital TV and set-top box firmware
  • Network routers and access points
  • Industrial automation data logging
  • Automotive infotainment systems
  • Medical device data storage
  • Consumer multimedia products
  • Network storage caching
Manufacturer Part Number Description
Macronix MX30LF4G28AD-TI 4Gb SLC NAND, 4KB page, 8-bit ECC – recommended
Micron MT29F4G08ABAEAWP-IT:E 4Gb SLC NAND, x8, 3V, TSOP
ISSI IS34ML04G081-TLI 4Gb SLC NAND Flash, x8, 3V, TSOP
Winbond W29N04GVSIAA 4Gb SLC NAND, parallel interface
