MX35LF2GE4AB-MI

2Gbit SPI SLC NAND Flash, x4, 104MHz, 2.7-3.6V, 16-SOP, 4-bit ECC

3456

Effective Inventory
Go to Inquiry

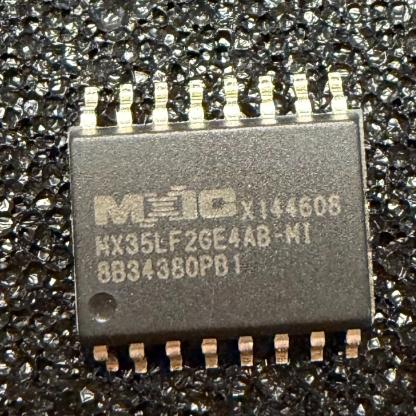

Image for reference only

Manufacturer Part：

MX35LF2GE4AB-MI

Package：

16-SOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX35LF2GE4AB-MI is a 2Gbit SLC NAND Flash memory from Macronix with serial SPI interface. It features x4 (quad) data bus width and operates at up to 104MHz clock frequency. The device comes in a 16-SOP (300mil) package, operates from 2.7V to 3.6V, and supports industrial temperature range. Key features include built-in 4-bit ECC (Error Correction Code), block protection, secure OTP, and low power consumption. This serial NAND flash provides high-density non-volatile storage for applications requiring large data storage capacity.

Key Specifications

Memory Type FLASH – NAND SLC (Non-Volatile)
Memory Size 2Gbit (256MB / 2Gb)
Interface SPI – Quad I/O (x4)
Clock Frequency 104 MHz (max)
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 16-SOP (300mil)
Page Size (2048 + 64) bytes
Block Size (128K + 4K) bytes
Endurance 100,000 cycles typical

Features

  • 2Gbit SLC NAND Flash with Serial Peripheral Interface
  • x4 (Quad) data bus width for high throughput
  • Fast read: 104MHz max clock frequency
  • Page size: 2048 + 64 (spare) bytes
  • Block size: 128K + 4K (spare) bytes
  • Built-in 4-bit ECC (Error Correction Code)
  • Fast page program time: 300us typical
  • Fast block erase time: 1ms typical
  • Array to register latency: 25us
  • Block group protection via BP bits
  • Secure OTP (One-Time-Programmable) area
  • Low power dissipation
  • Single voltage operation: 2.7V to 3.6V
  • Data retention: 10 years
  • RoHS compliant and halogen-free

Applications

  • Digital TVs and set-top boxes
  • Networking and AP routers
  • Embedded systems with large data storage
  • Industrial control systems
  • Automotive infotainment
  • Medical devices and data logging
  • Consumer electronics
  • Multimedia storage applications

The MX35LF2GE4AB-MI is a 2Gbit 3V serial NAND Flash memory from Macronix. It uses Single-Level Cell (SLC) NAND technology for high reliability and endurance, and provides a high-density non-volatile storage solution through a standard SPI-compatible serial interface. The device supports x4 (Quad) data bus width for increased throughput, operating at clock frequencies up to 104MHz. It features a page size of 2048+64 bytes and block size of 128K+4K bytes, with typical program time of 300us per page and erase time of 1ms per block. A key feature is the built-in 4-bit ECC (Error Correction Code) engine, which is enabled by default and corrects up to 4-bit errors per 512 bytes, relieving the host system from implementing ECC algorithms. Security features include block group protection via BP bits and Secure OTP (One-Time-Programmable) memory area. The device operates from a single 2.7V to 3.6V power supply over the full industrial temperature range. The 16-pin 300mil SOP package provides a standard, familiar form factor for designers. With 100K program/erase cycle endurance and 10-year data retention, it is well-suited for high-density data storage applications.

The MX35LF2GE4AB operates as a serial interface NAND Flash memory. Unlike parallel NAND flash, it communicates via a SPI-compatible serial interface, significantly reducing pin count and simplifying board design. In read operations, the host sends a command and address via the serial interface, and the device loads the requested page data into an internal buffer (array-to-register transfer takes ~25us), then shifts the data out serially. Program operations follow a similar pattern – data is shifted into the page buffer serially, then programmed into the NAND array. The built-in 4-bit ECC engine automatically calculates and writes ECC parity data during programming, and performs error detection and correction during reads. This hardware ECC operates transparently to the host, ensuring data integrity without software overhead. Erase operations are performed at the block level (128KB+4KB each), as is standard for NAND flash. The device includes bad block management information, with the first page of each block indicating whether the block is good or factory-bad. Block protection features allow protecting portions of the memory array from accidental program or erase operations.

Pin Number Pin Name Type Description
1 NC – No Connection
2 VCC Power Power supply 2.7V-3.6V
3 VCC Power Power supply (connected internally)
4-7 NC – No internal connections
8 WP# Input Write Protect, active low
9 GND Ground Ground connection
10 SO/SIO1 I/O Serial Output / I/O1
11 SCLK Input Serial Clock input
12 SI/SIO0 I/O Serial Input / I/O0
13 SIO2 I/O Serial I/O 2
14 SIO3 I/O Serial I/O 3
15 HOLD# Input Hold input
16 CS# Input Chip Select, active low
  • Digital TV and set-top box firmware and data
  • Wireless routers and access points
  • High-density data logging systems
  • Industrial automation data storage
  • Automotive infotainment and maps
  • Medical device data storage
  • Multimedia player storage
  • Network storage caching
Manufacturer Part Number Description
Macronix MX35LF2GE4AD-MI 2Gb SPI NAND, 8-bit ECC, enhanced version
Winbond W25N02KVZEIR 2Gb SPI NAND Flash, 3V, 8-SOIC
Micron MT29F2G01ABAGDWB-IT:G 2Gb SLC NAND, SPI, 3.3V, WSON
GigaDevice GD5F2GQ5UEYIGR 2Gb SPI NAND Flash, 3.3V, USON
