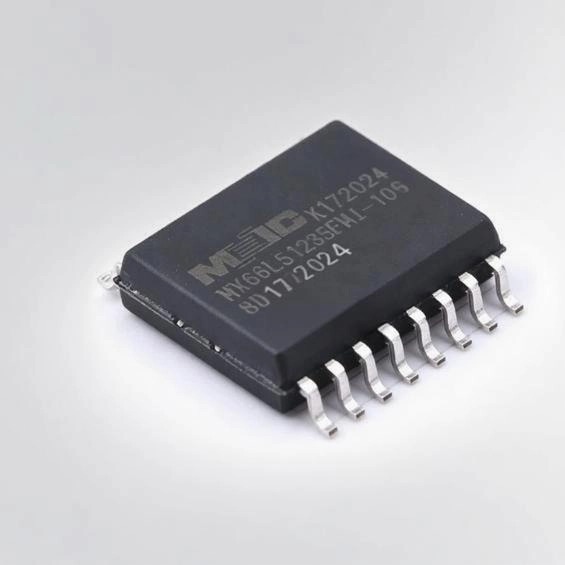

MX66L51235FMI-10G

512Mbit SPI NOR Flash, Quad I/O, QPI, 104/133MHz, 2.7-3.6V, 16-SOP, Stacked Die

2345

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

MX66L51235FMI-10G

Package：

16-SOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX66L51235FMI-10G is a 512Mbit multi-I/O SPI NOR Flash memory from Macronix, part of the MX66L series featuring stacked die architecture for high density. It supports Single I/O, Dual I/O, and Quad I/O operations up to 104MHz (standard) / 133MHz (enhanced) clock frequencies. The device comes in a 16-SOP (300mil) package, operates from 2.7V to 3.6V, and features QPI mode, Program/Erase Suspend/Resume, Fast Boot (XIP), Advanced Sector Protection, Password Protection, and Secured OTP. Manufactured using 75nm process technology.

Key Specifications

Memory Type FLASH – NOR (Non-Volatile)
Memory Size 512Mbit (64M x 8)
Interface SPI – Quad I/O, QPI
Clock Frequency 104 MHz standard, 133 MHz enhanced
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 16-SOP (300mil)
Architecture Stacked die, 4KB sectors
Process Technology 75nm
Endurance 100,000 cycles

Features

  • 512Mbit high-density SPI NOR Flash (stacked die)
  • MXSMIO™: Single/Dual/Quad I/O support
  • Quad Peripheral Interface (QPI) mode
  • 104MHz standard / 133MHz enhanced clock frequency
  • 75nm advanced process technology
  • Uniform 4KB, 32KB, 64KB sectors/blocks
  • Program/Erase Suspend and Resume
  • Fast Boot (XIP) mode for execute-in-place
  • Burst Read with wrap-around
  • Advanced Sector Protection (Individual + Password)
  • Volatile and non-volatile write protection
  • Secured OTP: 4Kbit
  • 256-byte program buffer
  • Adjustable output driver strength
  • SFDP (Serial Flash Discoverable Parameters)
  • RoHS compliant and halogen-free

Applications

  • High-density code and data storage
  • Industrial automation systems
  • Automotive electronics
  • Networking and telecom equipment
  • Set-top boxes and digital TVs
  • Medical equipment
  • Aerospace and defense
  • Data center and storage systems

The MX66L51235FMI-10G is a 512Mbit 3V serial multi-I/O NOR Flash memory from Macronix, the highest density member of the MX66L stacked-die series. It features MXSMIO™ (Serial Multi I/O) technology supporting Single I/O, Dual I/O, and Quad I/O modes, along with QPI (Quad Peripheral Interface) mode for maximum throughput. The device achieves clock frequencies up to 104MHz in standard mode and 133MHz in enhanced mode. Manufactured using 75nm process technology with stacked die architecture to achieve high density in a standard package. The 512Mbit memory is organized as 64M x 8 bits and features uniform 4KB sectors, 32KB blocks, and 64KB blocks for flexible erase operations. Advanced features include Fast Boot mode for XIP (execute-in-place) applications, Program/Erase Suspend and Resume, Burst Read with configurable wrap length, and Advanced Sector Protection with individual block protection and password protection. Security features include 4K-bit secured OTP memory and SFDP compliance. The 16-pin 300mil SOP package provides a familiar form factor for high-density designs. While classified as EOL/Not For New Designs (with MX25L51245G recommended as the 55nm replacement), it remains widely deployed in existing systems.

The MX66L51235F operates as a high-density serial NOR Flash using stacked die architecture, where multiple flash die are stacked vertically within a single package to achieve higher density without increasing the footprint. The device uses 4-byte addressing to access the full 512Mbit memory space, with a command to enter/exit 4-byte address mode. In standard SPI mode, commands and addresses are sent on SI and data is received on SO. In Quad I/O and QPI modes, all four data pins carry data simultaneously, significantly increasing throughput. QPI mode extends this to commands and addresses as well, reducing protocol overhead. The device supports XIP (execute-in-place) mode via Fast Boot, allowing system controllers to execute code directly from the flash without copying to RAM first. Program operations support standard page program and quad page program for faster programming. Program/Erase Suspend/Resume allows temporarily halting operations to perform reads in other sectors. Advanced sector protection provides both individual sector/block protection (non-volatile) and password-protected access, enabling secure storage of sensitive code or data. The status register and configuration register provide detailed control and status information.

Pin Number Pin Name Type Description
1 NC/SIO3 I/O No Connect / I/O3 (alternate pin assignment)
2 VCC Power Power supply 2.7V-3.6V
3 VCC Power Power supply (internal connection)
4-7 NC – No internal connections
8 RESET#/HOLD#/SIO3 I/O Reset/Hold / I/O3 in quad/QPI mode
9 GND Ground Ground connection
10 WP#/SIO2 I/O Write Protect / I/O2 in quad/QPI mode
11 SCLK Input Serial Clock input
12 SI/SIO0 I/O Serial Input / I/O0
13 SO/SIO1 I/O Serial Output / I/O1
14-15 NC – No internal connections
16 CS# Input Chip Select, active low
  • High-density firmware and application code storage
  • Industrial control and automation systems
  • Automotive ADAS and infotainment
  • Enterprise networking and telecom
  • Digital set-top boxes and smart TVs
  • Medical imaging equipment
  • Aerospace and defense electronics
  • Data center storage controllers
