NL668-CN-01

4G LTE Cat 4 Module, MiniPCIe, China Full-Network, 150Mbps, USB/UART, Industrial Temp

1200

Effective Inventory
Go to Inquiry

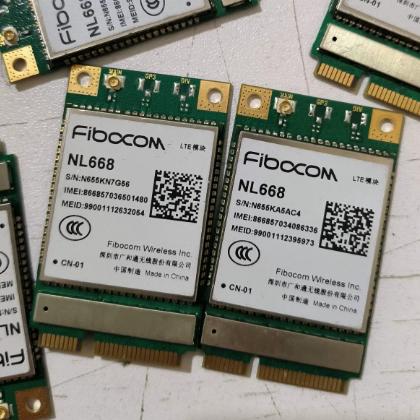

Image for reference only

Manufacturer Part：

NL668-CN-01

Package：

MiniPCIe

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The NL668-CN-01 is a 4G LTE Cat 4 wireless module from Fibocom (广和通) based on the MiniPCIe form factor. It supports multi-mode operation including LTE FDD/TDD, WCDMA, TD-SCDMA, EVDO, CDMA, and GSM/GPRS/EDGE networks, making it compatible with all major network operators in China. The module features data transfer rates up to 150Mbps (DL) / 50Mbps (UL), integrated TCP/IP protocol stack, and multiple interfaces including USB, UART, and PCM audio. The -01 variant supports MAIN antenna only with 2+1 MCP configuration.

Key Specifications

Module Type 4G LTE Cat 4 Module
Form Factor MiniPCIe
Dimensions 51.0 x 30.0 x 4.9 mm
LTE Category Cat 4
Max Data Rate 150Mbps DL / 50Mbps UL
LTE FDD Bands B1, B3, B5, B8
LTE TDD Bands B34, B38, B39, B40, B41
WCDMA Bands B1, B8
TD-SCDMA Bands B34, B39
Power Supply 3.3V ~ 4.3V (Typ. 3.8V)
Operating Temp -40°C ~ 85°C (extended)

Features

  • Multi-mode: LTE FDD/TDD, WCDMA, TD-SCDMA, EVDO, CDMA, GSM
  • China full-network coverage (China Mobile / Unicom / Telecom)
  • LTE Cat 4: 150Mbps DL / 50Mbps UL
  • MiniPCIe standard form factor
  • Embedded TCP/IP and UDP/IP protocol stack
  • AT command control (3GPP TS 27.007 + proprietary)
  • USB 2.0 high-speed interface
  • UART serial interface
  • PCM/I2S digital audio interface
  • SMS (Text and PDU modes)
  • Voice support: VoLTE, AMR, HR, FR, EFR
  • DFOTA firmware upgrade support
  • GNSS support (optional)
  • Driver support: Linux, Windows, Android

    • \li>Industrial temperature range

Applications

  • Industrial routers and gateways
  • M2M (Machine-to-Machine) communication
  • Smart metering and smart grid
  • IoT devices and sensors
  • Vehicle telematics (C-V2X)
  • Public safety and security systems
  • Digital signage and vending machines
  • Remote monitoring and control

The NL668-CN-01 is a 4G LTE Cat 4 wireless communication module from Fibocom (广和通无线股份有限公司), designed specifically for the Chinese market with full-network coverage supporting China Mobile, China Unicom, and China Telecom networks. It is based on the standard MiniPCIe form factor (51x30mm) and supports multiple wireless network modes including LTE FDD/TDD, WCDMA, TD-SCDMA, EVDO, CDMA2000, and GSM/GPRS/EDGE. The module provides maximum data rates of 150Mbps downlink and 50Mbps uplink under LTE Cat 4. The -01 variant features MCP 2+1 antenna configuration supporting MAIN_ANT only. Key interfaces include USB 2.0 (main data interface), UART (debug/AT commands), PCM/I2S (digital audio), and multiple GPIOs. The module has an embedded TCP/IP protocol stack and supports AT command control, SMS services, voice calls (VoLTE and CS), and DFOTA (Differential Firmware Over-The-Air) upgrade. It supports Linux, Windows, and Android operating systems. With extended operating temperature range of -40°C to +85°C and industrial-grade design, it is suitable for various IoT and M2M applications.

The NL668-CN is a multi-mode cellular wireless module that provides data and voice connectivity over cellular networks. The module contains a baseband processor, RF transceiver, power management unit, and memory (MCP) all integrated within the MiniPCIe package. It connects to the host system primarily via USB 2.0 interface, presenting as a network adapter and/or serial ports. AT commands are used for configuration and control, supporting both standard 3GPP AT commands (TS 27.007, TS 27.005) and Fibocom proprietary AT commands for advanced features. The embedded TCP/IP protocol stack allows data communication without requiring the host to implement full network stack. For voice calls, the module supports both VoLTE (Voice over LTE) and circuit-switched voice on 2G/3G networks, with audio available via PCM digital audio interface. The module automatically searches and registers with available cellular networks, with multi-mode capability ensuring fallback to lower generation networks when 4G coverage is unavailable. Firmware can be upgraded via USB using DFOTA for differential updates or full firmware download.

Pin Name Type Description
2/4 USB_DM/USB_DP I/O USB 2.0 differential data pair
25 UART_TXD Output UART serial transmit (debug)
27 UART_RXD Input UART serial receive (debug)
33 WAKEUP_IN Input Wakeup from sleep mode
30 DTR Input Data Terminal Ready / sleep control
28/32 CTS/RTS I/O UART hardware flow control
41/43 PCM_CLK/PCM_SYNC I/O PCM audio clock and sync
45/47 PCM_OUT/PCM_IN I/O PCM audio data output/input
36 W_DISABLE# Input RF disable / airplane mode control
40 PWRKEY Input Power on/off control key
42 RESET# Input Module hardware reset
44 SIM_VDD Output SIM card power supply
46/48 SIM_DATA/SIM_CLK I/O SIM card data and clock
50 SIM_RST Output SIM card reset
18/20 MAIN_ANT/GNSS_ANT RF Main antenna / GNSS antenna (u.FL)
1/3/…/52 3.3V/GND Power Power supply and ground pins
  • Industrial 4G routers and gateways
  • M2M (Machine-to-Machine) communications
  • Smart energy meters and grid monitoring
  • IoT sensor networks and data collection
  • Vehicle telematics and tracking
  • Public safety and security monitoring
  • Digital signage and advertising displays
  • Remote equipment monitoring and control
Manufacturer Part Number Description
Fibocom NL668-CN-00 4G module, MCP 4+2, MAIN+DIV+GNSS
Fibocom NL668-CN-02 4G module, MCP 2+1, MAIN+DIV
Quectel EC20CEHDLG-128-SGNS 4G LTE Cat 4 module, MiniPCIe, China full netcom
MeiG SLM750-CN 4G LTE Cat 4 module, MiniPCIe
