S6R4016W1A-UI10

4Mb (256Kx16) fast async SRAM, 1.65~3.6V, 10ns, byte ctrl, 44-TSOP II, industrial temp

5432

Effective Inventory
Go to Inquiry

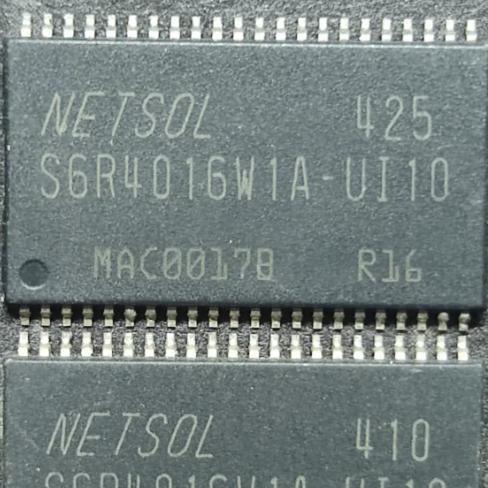

Image for reference only

Manufacturer Part：

S6R4016W1A-UI10

Package：

44-pin TSOP II (400mil)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The S6R4016W1A-UI10 is a 4Mbit (256K x 16) asynchronous fast SRAM from NETSOL, operating at wide voltage range (1.65V to 3.6V) with 10 ns access time. It uses advanced CMOS process with 6-TR cell technology, featuring TTL-compatible I/O, data byte control (LB#/UB#), and fully static operation. Packaged in a 44-pin TSOP II, it is qualified for industrial temperature range (-40°C to +85°C).

Key Specifications

Density 4Mbit (256K x 16)
Organization 256K x 16
Technology CMOS 6-TR cell
Supply Voltage 1.65V to 3.6V (wide range)
Access Time 10 ns
Interface Parallel asynchronous
Byte Control LB# (DQ0-DQ7), UB# (DQ8-DQ15)
Operating Current 30 mA max @ 10ns
Standby Current 6 mA max (CMOS)
Operating Temp -40°C to +85°C (industrial)
Package 44-pin TSOP II (400mil)
Part Status Active

Features

  • 4Mbit fast asynchronous SRAM (256K x 16)
  • Wide supply voltage: 1.65V to 3.6V
  • 10 ns fast access time
  • 6-TR CMOS cell technology for high speed
  • Upper/lower byte control (LB#, UB#)
  • Fully static operation, no refresh or clocks
  • TTL-compatible inputs and outputs
  • Three-state output
  • Low power: 30mA operating, 6mA CMOS standby
  • Industrial temperature grade

Applications

  • High-speed cache and buffer memory
  • Networking and telecom equipment
  • Industrial control systems
  • DSP and FPGA external SRAM
  • Automotive electronics

The S6R4016W1A-UI10 is a 4Mbit (256K x 16) asynchronous fast SRAM from NETSOL, a Korean SRAM specialist. It operates at a wide supply voltage range of 1.65V to 3.6V with 10 ns access time, using advanced CMOS process and 6-TR cell technology. The device features upper/lower byte control via LB# and UB# signals, TTL-compatible I/O, and fully static operation with no clocks or refresh required. The W1A series supports wide voltage operation, making it suitable for both 1.8V and 3.3V systems. Packaged in 44-pin TSOP II for industrial temperature range.

The S6R4016W1A is a fully static asynchronous SRAM. Six-transistor (6-TR) CMOS memory cells retain data without refresh. Address inputs A0-A17 select one of 262,144 word locations (16 bits each). Read: CE# low, OE# low, WE# high — data appears on DQ0-DQ15 after 10ns access time. Write: CE# low, WE# low — data on DQ bus is written to the addressed location. Byte control: LB# low enables DQ0-DQ7 (lower byte), UB# low enables DQ8-DQ15 (upper byte), both low for full 16-bit access. Standby: CE# high — device enters low-power mode with CMOS standby current. The wide voltage range (1.65-3.6V) enables use in battery-powered and mixed-voltage systems.

Pin Group Name Type Function
A0-A17 Address Inputs Input 18-bit address (256K words)
DQ0-DQ7 Lower Byte I/O I/O Lower byte data (controlled by LB#)
DQ8-DQ15 Upper Byte I/O I/O Upper byte data (controlled by UB#)
CE# Chip Enable Input Activates device, active low
OE# Output Enable Input Enables data output, active low
WE# Write Enable Input Enables write operation, active low
LB# Lower Byte Enable Input Enables DQ0-DQ7, active low
UB# Upper Byte Enable Input Enables DQ8-DQ15, active low
VDD Power Power 1.65V to 3.6V supply
VSS Ground Power Ground
  • High-speed L1/L2 cache memory in networking ASICs
  • DSP and FPGA external SRAM at 10ns speed
  • Industrial control system buffer memory
  • Automotive ECU SRAM expansion (wide voltage)
  • Telecom packet buffer and lookup table
Manufacturer Part Number Package Notes
ISSI IS61LV25616AL-10TL 44-TSOP II 4Mb 10ns 3.3V SRAM
Lyontek LY62L25616BML-45SLI 44-TSOP II 4Mb 45ns low-power SRAM
NETSOL S6R4016V1A-UI10 44-TSOP II 3.3V only variant (V1A)
Cypress CY7C1041CV33-10ZSXI 44-TSOP II 4Mb 10ns SRAM alternative
