PCIe Gen1/Gen2 packet switch, 6-port 24-lane, cut-through, server/storage interconnect
13270

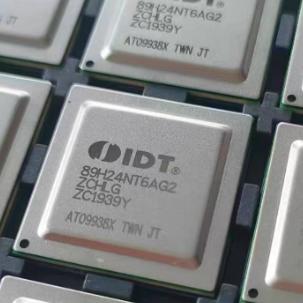

Image for reference only
89H24NT6AG2ZCHLG
484-BBGA, FCBGA
89H24NT6AG2ZCHLG is a Renesas 89H24NT6 PCI Express packet switch, 6-port, 24 lanes, for server and storage interconnect.
| Type | PCI Express packet switch |
| Ports | 6 |
| Lanes | 24 |
| Interface | PCI Express Gen1/Gen2 |
| Series | 89H24NT6 |
Refer to manufacturer datasheet for detailed application information and design guidelines.
89H24NT6AG2ZCHLG is a Renesas 89H24NT6 PCI Express packet switch, 6-port, 24 lanes, for server and storage interconnect.
The 89H24NT6AG2ZCHLG is an NXP/Renesas PCIe packet switch providing non-transparent and transparent bridging between multiple PCIe domains. Cut-through switching minimizes latency by forwarding packet headers before the entire packet is received. The 6-port 24-lane architecture allows flexible topology configurations including fan-out, peer-to-peer, and cascade. Port arbitration and virtual channel support enable QoS-aware traffic management across the switch fabric.
| Pin Group | Name | Description |
|---|---|---|
| I/O | Signal pins | Primary signal interface pins |
| Power | VCC/VDD | Supply voltage pins |
| Ground | GND/VSS | Ground reference pins |
| Control | EN, RST, CS | Enable, reset, and chip select controls |
| Model | Manufacturer | Key Difference |
|---|---|---|
| LS1028A | NXP | Layerscape ARM Cortex-A72, higher performance |
| PEX8749 | Broadcom | PCIe switch alternative |
