Product Overview

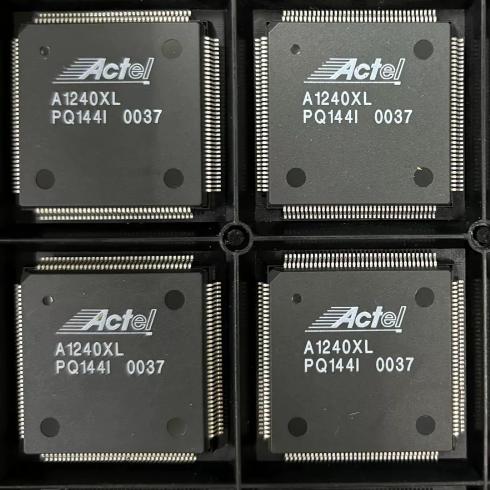

The A1240XL is a 4,000-gate FPGA from Actel’s ACT2 (Integrator Series) family. The XL suffix denotes 3.3V operation. The -1 speed grade is approximately 15% faster than standard. ACT2 devices feature fine-grained architecture with combinatorial and sequential logic modules.
Key Specifications
| Family | ACT 2 Series (Integrator) |
| Gate Count | 4,000 gate array equivalent |
| Logic Modules | 684 (C + S modules) |
| User I/O | Up to 104 |
| Voltage | 3.3V (XL variant) |
| Speed Grade | -1 (15% faster than std) |
| Technology | Antifuse (PLICE) |
Features
- 4,000 gate array equivalent gates
- ACT2 architecture with C-modules and S-modules
- 3.3V low voltage operation (XL)
- -1 speed grade: high performance
- Up to 104 user I/Os
- Two global clock networks
- Nonvolatile antifuse technology
- JTAG boundary scan support
Applications
- System level integration
- High-speed decode logic
- Network interfaces
- Telecom equipment
- Industrial control
- Military applications
