Product Overview

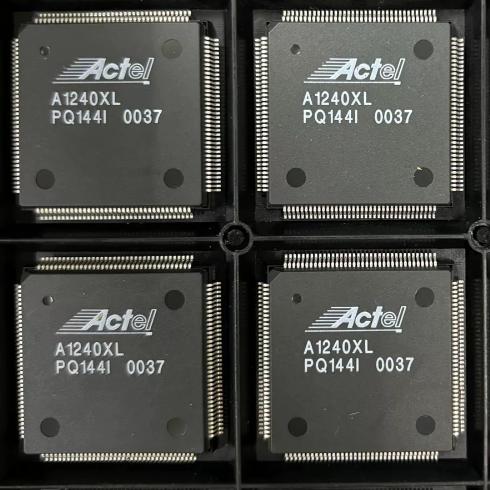

The A1240XL-2 is the -2 speed grade of the Actel A1240XL 4,000-gate ACT2 FPGA. The -2 grade is approximately 25% faster than the standard speed grade. 3.3V operation with the same architecture and logic resources as other A1240XL variants.
Key Specifications
| Family | ACT 2 Series |
| Gate Count | 4,000 gate array equivalent |
| Logic Modules | 684 |
| Speed Grade | -2 (25% faster than std) |
| Voltage | 3.3V (XL) |
| User I/O | Up to 104 |
| Technology | Antifuse (PLICE) |
Features
- 4,000 gate ACT2 FPGA
- -2 high speed grade (25% faster)
- 3.3V low voltage operation
- 684 logic modules
- Up to 104 I/Os
- Two global clock networks
- Nonvolatile antifuse
- JTAG boundary scan
Applications
- High-speed interface logic
- Telecom infrastructure
- Network processing
- High-performance control
- Military systems
