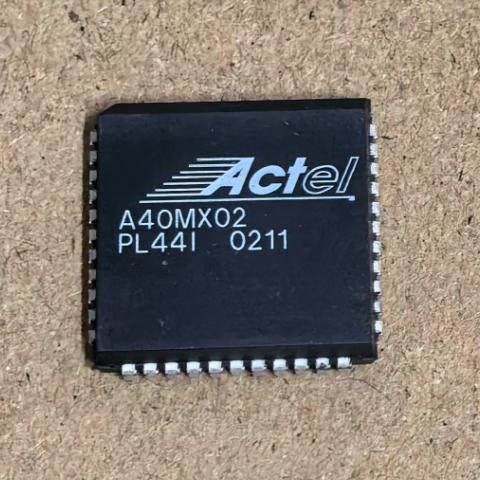

A40MX02

MX Series FPGA, 2000 Gates, Antifuse, 3.3V/5V, 151 Logic Modules

5000

Effective Inventory

Image for reference only

Manufacturer Part：

A40MX02

Package：

PLCC-84, PQFP-100

Brand：

microsemi

Product Categories：

Integrated Circuits ICs

Other recommendations you may be interested in.

MSP430F5304IRGZR

Description

Product Overview

The A40MX02 is a 2,000-gate FPGA from Actel’s MX (eXtended) family with 151 logic modules. The MX series features improved architecture with variable-aspect-ratio logic modules and support for both 3.3V and 5V I/O banks. Nonvolatile antifuse technology.

Key Specifications

Family	MX Series
Gate Count	2,000 gate array equivalent
Logic Modules	151 (S-modules)
Flip-Flops	147
User I/O	Up to 69
Voltage	3.3V/5V (mixed I/O)
Technology	Antifuse (PLICE)

Features

2,000 gate MX series FPGA
151 S-modules with built-in flip-flops
Mixed 3.3V/5V I/O support
Nonvolatile antifuse technology
Sea-of-Modules architecture
High logic utilization
Low power consumption
JTAG boundary scan

Applications

Low-density logic integration
Interface bridging
Glue logic replacement
System control
Battery-powered devices
Industrial control

Product Introduction:A40MX02 Product Introduction

The A40MX02 is a 2,000-gate FPGA from Actel’s MX (eXtended) family with 151 logic modules. The MX series features improved architecture with variable-aspect-ratio logic modules and support for both 3.3V and 5V I/O banks. Nonvolatile antifuse technology.

Working Principle:A40MX02 Working Principle

MX architecture features ‘Sea-of-Modules’ with variable-aspect-ratio logic modules (S-modules with built-in flip-flops). Offers better utilization and performance than ACT series. Mixed 3.3V/5V I/O banks allow interfacing with multiple voltage domains.

Pin Description:A40MX02 Pin Definition and Functions

Pin Group	Name	Description
I/O	User I/O	Up to 69 user I/O
Clock	CLK	Global clock networks
JTAG	TCK, TDI, TDO, TMS	Boundary scan
Power	VCC, VCCI, GND	Core and I/O supplies

Application Scenarios:In which products and applications isA40MX02 used

Low-density logic integration
Interface bridging
Glue logic replacement
System control
Battery-powered devices
Industrial control

Alternative Models:What chips are recommended as replacements for A40MX02

Manufacturer	Part Number	Description
Actel	A40MX04	4000-gate MX FPGA
Actel	A42MX09	9000-gate MX FPGA
Actel	A1020B	ACT1 2000-gate alternative
