A42MX09

MX Series FPGA, 9000 Gates, Antifuse, 3.3V/5V, 546 Logic Modules

5000

Effective Inventory

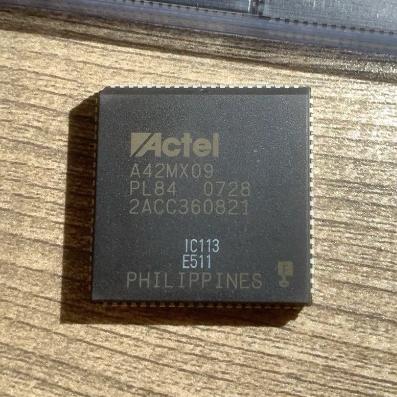

Image for reference only

Manufacturer Part：

A42MX09

Package：

PQFP-160/208, BGA

Brand：

microsemi

Product Categories：

Integrated Circuits ICs

Other recommendations you may be interested in.

MSP430F5304IRGZR

Description

Product Overview

The A42MX09 is a 9,000-gate FPGA from Actel’s MX family with 546 logic modules. Features the MX series’ advanced S-module architecture with built-in flip-flops, mixed 3.3V/5V I/O banks, and nonvolatile antifuse configuration. Suitable for medium-density system integration.

Key Specifications

Family	MX Series
Gate Count	9,000 gate array equivalent
Logic Modules	546 (S-modules)
Flip-Flops	546
User I/O	Up to 140
Voltage	3.3V/5V mixed I/O
Technology	PLICE Antifuse

Features

9,000 gate array equivalent
546 S-modules with flip-flops
Mixed 3.3V/5V I/O banks
Up to 140 user I/Os
PLICE antifuse nonvolatile technology
High performance and utilization
JTAG boundary scan support
Instant-on configuration

Applications

Medium-density system integration
Interface controllers
Network processors
DSP peripherals
Industrial automation
Telecom equipment

Product Introduction:A42MX09 Product Introduction

The A42MX09 is a 9,000-gate FPGA from Actel’s MX family with 546 logic modules. Features the MX series’ advanced S-module architecture with built-in flip-flops, mixed 3.3V/5V I/O banks, and nonvolatile antifuse configuration. Suitable for medium-density system integration.

Working Principle:A42MX09 Working Principle

Medium-density MX FPGA with S-module architecture. Each S-module combines combinatorial logic with a D-type flip-flop for efficient sequential circuit implementation. Variable-aspect-ratio routing provides high utilization.

Pin Description:A42MX09 Pin Definition and Functions

Pin Group	Name	Description
I/O	User I/O	Up to 140 user I/O
Clock	CLK0, CLK1	Global clock networks
JTAG	TCK, TDI, TDO, TMS	Boundary scan
Power	VCC, VCCI, GND	Core and I/O power

Application Scenarios:In which products and applications isA42MX09 used

Medium-density system integration
Interface controllers
Network processors
DSP peripherals
Industrial automation
Telecom equipment

Alternative Models:What chips are recommended as replacements for A42MX09

Manufacturer	Part Number	Description
Actel	A42MX16	16000-gate MX FPGA
Actel	A32140DX	3200DX with SRAM
Actel	A40MX04	4000-gate smaller MX
