AR1011-I/SS

4/5/8-wire resistive touch controller, 10-bit, UART, 20-SSOP Industrial AEC-Q100

14406

Effective Inventory
Go to Inquiry

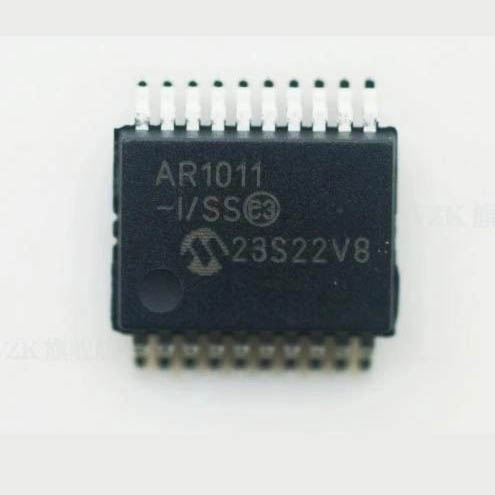

Image for reference only

Manufacturer Part：

AR1011-I/SS

Package：

20-SSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The AR1011-I/SS is a 4/5/8-wire resistive touch screen controller from Microchip mTouch AR1000 series. UART, 10-bit 140sps, on-chip EEPROM calibration. 20-SSOP, AEC-Q100.

Key Specifications

Manufacturer Microchip Technology
Type Resistive Touch Controller
Wires 4, 5, or 8
Resolution 10-bit
Sample Rate 140 sps
Interface UART
Supply Voltage 2.5V to 5.25V
Temperature -40°C to +85°C
Package 20-SSOP
Qualification AEC-Q100

Features

  • 4/5/8-wire resistive panel support
  • 10-bit 140sps resolution
  • On-chip EEPROM for calibration
  • Drift compensation
  • AEC-Q100 automotive qualified
  • Sleep mode for low power

Applications

  • Automotive infotainment touch panels
  • Industrial HMI
  • Portable GPS and PDA
  • POS terminals

Resistive touch controller, 4/5/8-wire, 10-bit, UART, 20-SSOP, AEC-Q100.

Processes touch data using proprietary algorithms. Detects touch events, converts panel voltages to 10-bit coordinates, transmits via UART.

Pin Name Function
1-4 S0-S3 Sense Inputs
  • Automotive infotainment touch panels
  • Industrial HMI
  • Portable GPS and PDA
  • POS terminals
Part Notes
AR1021-I/SS I2C/SPI version
