BTS724G

Quad-channel smart high-side power switch, 4x 3.3A, 70mOhm, 5.5~40V, AEC-Q100, PG-DSO-20

6789

Effective Inventory
Go to Inquiry

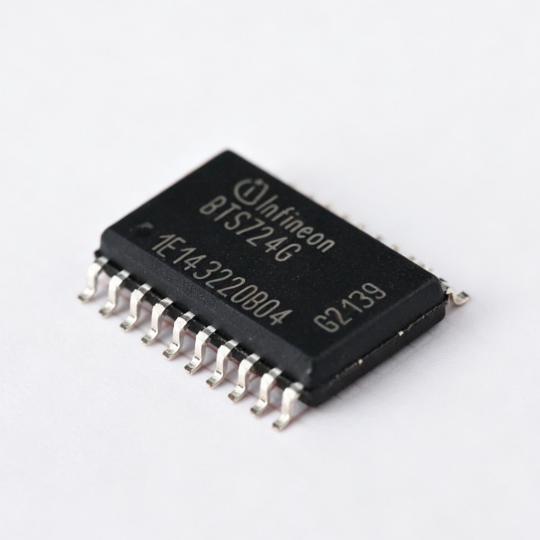

Image for reference only

Manufacturer Part：

BTS724G

Package：

PG-DSO-20 (12.8 x 7.6 x 2.45mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The BTS724G is a quad-channel smart high-side power switch from Infineon Technologies (Classic PROFET 24V family), integrating four independent N-channel power MOSFETs with comprehensive protection and diagnostic circuitry in a single PG-DSO-20 package. Each channel provides 3.3A nominal load current with 70mOhm typical on-resistance at 25°C. It features overtemperature, overcurrent, and ESD protection, CMOS-compatible inputs, and digital status feedback for automotive and industrial applications.

Key Specifications

Type Quad-channel high-side power switch
Family Classic PROFET 24V
Channels 4
Supply Voltage (Vbb) 5.5V to 40V
Overvoltage Protection 41V to 52V
Nominal Load Current (per channel) 3.3A (all channels active, Ta=85°C)
Short Circuit Current 15A (self-limited)
On-Resistance 70 mOhm typ. @ 25°C (per channel)
Turn-on Time 250 us max
Turn-off Time 270 us max
Standby Current Very low (uA range)
ESD Capability 4.0 kV (input pins)
Operating Temp -40°C to +150°C (junction)
Power Dissipation 3.6W (Ta=25°C, all channels)
Package PG-DSO-20
Qualification AEC-Q100 (automotive)
Part Status Active

Features

  • Quad-channel smart high-side power switch (4 IN / 4 OUT)
  • Integrated vertical power FET per channel
  • 70 mOhm typical on-resistance per channel at 25°C
  • 3.3A nominal load current per channel (all active)
  • Short-circuit protection with self-limited current (15A)
  • Overtemperature protection with hysteresis
  • Load dump protection up to 60V
  • CMOS-compatible input (3.3V/5V logic)
  • Digital diagnostic status feedback (ST pins)
  • Very low standby current
  • Fast demagnetization of inductive loads
  • Separate logic ground from load ground
  • AEC-Q100 automotive qualified
  • Planned availability until at least 2039

Applications

  • Automotive lamp and LED driver
  • Solenoid and relay driver
  • DC motor control (small motors)
  • Industrial power distribution
  • High-performance cockpit controller
  • Consumer electronics power switch

The BTS724G is a quad-channel smart high-side power switch from Infineon Technologies’ Classic PROFET 24V family. It integrates four independent N-channel power MOSFETs with comprehensive protection and diagnostic circuitry in a single PG-DSO-20 package. Each channel delivers 3.3A nominal load current with 70mOhm typical on-resistance at 25°C. The device features overtemperature, overcurrent (self-limited to 15A), ESD, and load dump protection, CMOS-compatible inputs for direct MCU interfacing, and digital status feedback for diagnostics. AEC-Q100 qualified for automotive applications, with planned availability until at least 2039.

The BTS724G operates as four independent high-side power switches. Each channel is controlled by a CMOS-compatible logic input (IN1-IN4). When IN is high, the corresponding power FET turns on, connecting Vbb to the output (OUT). When IN is low, the FET turns off. Protection mechanisms: Overcurrent — each channel self-limits at 15A, shutting down if the fault persists. Overtemperature — thermal shutdown with hysteresis prevents junction damage. Load dump — internal clamping protects against automotive load dump pulses up to 60V. Diagnostics — the ST (status) pins provide digital feedback: low indicates fault (short circuit, overtemperature, or open load) on the corresponding channel pair. Fast demagnetization internally clamps inductive load energy. The separate logic ground (GND) isolates sensitive logic from load current paths.

Pin Name Type Function
1 IN1 Input Channel 1 control input (CMOS)
2 GND Power Logic ground (separate from load ground)
3 IN2 Input Channel 2 control input
4 Vbb Power Main supply (5.5V to 40V)
5 OUT1 Output Channel 1 power output
6 OUT1 Output Channel 1 power output (parallel)
7 OUT2 Output Channel 2 power output
8 OUT2 Output Channel 2 power output (parallel)
9 Vbb Power Main supply
10 ST1/2 Output Status feedback for channels 1 & 2
11 IN3 Input Channel 3 control input
12 ST3/4 Output Status feedback for channels 3 & 4
13 Vbb Power Main supply
14 OUT3 Output Channel 3 power output
15 OUT3 Output Channel 3 power output (parallel)
16 OUT4 Output Channel 4 power output
17 OUT4 Output Channel 4 power output (parallel)
18 Vbb Power Main supply
19 IN4 Input Channel 4 control input
20 GND Power Logic ground
  • Automotive lamp driver (headlight, taillight, indicator)
  • Solenoid and relay driver for body control modules
  • Small DC motor control (wiper, window, mirror)
  • Industrial power distribution and smart fuse replacement
  • High-performance cockpit and infotainment controller
  • Consumer electronics multi-load power management
Manufacturer Part Number Package Notes
Infineon BTS724GXUMA1 PG-DSO-20 Tape & reel variant, identical specs
Infineon BTS7200-4EPA PG-DSO-20 Quad PROFET+2, newer generation
STMicroelectronics VND5T100AJTR-E PowerSSO-12 Quad high-side switch alternative
Texas Instruments TPIC8101 SOIC Quad high-side driver alternative
