CY7C68013A-56PVXC

EZ-USB FX2LP USB 2.0 MCU, 8051 48MHz, 16KB RAM, 480Mbps, 56-SSOP

9701

Effective Inventory
Go to Inquiry

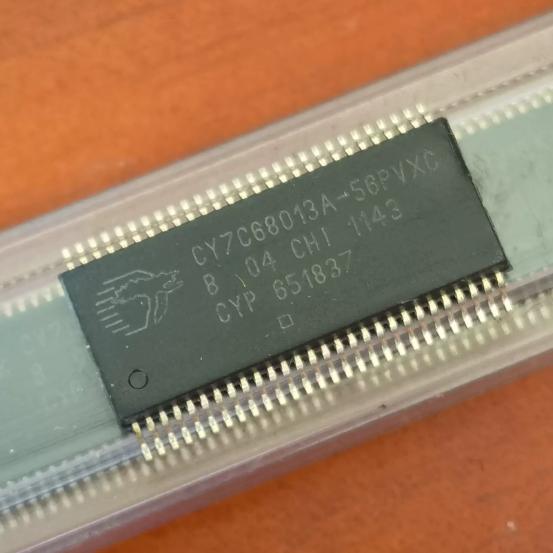

Image for reference only

Manufacturer Part：

CY7C68013A-56PVXC

Package：

56-SSOP (18.54 x 7.6mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The CY7C68013A-56PVXC is an EZ-USB FX2LP USB 2.0 high-speed peripheral controller from Infineon (formerly Cypress). It integrates an enhanced 8051 core at 48MHz, USB 2.0 transceiver, SIE, and GPIF in a 56-SSOP package. With 16KB on-chip RAM, 24 GPIOs, and 480Mbps throughput, it provides a single-chip USB peripheral solution. Not recommended for new designs.

Key Specifications

Manufacturer Infineon (Cypress)
Core Enhanced 8051 @ 48MHz
USB 2.0 High-Speed 480Mbps
RAM 16KB on-chip
GPIO 24
Interfaces I2C, UART x2, USB, GPIF
Supply Voltage 3.0V to 3.6V
Temperature 0°C to +70°C
Package 56-SSOP
Status Not Recommended for New Designs

Features

  • USB 2.0 HS certified, integrated transceiver
  • Enhanced 8051 core at 48MHz
  • GPIF for glueless ASIC/FPGA connection
  • Slave FIFO 8/16-bit parallel interface
  • I2C + 2x UART + 3x Timer
  • Low suspend current 300µA

Applications

  • Industrial cameras and 3D scanners
  • Biometric and portable medical devices
  • Memory card readers and ADSL modems
  • Data acquisition and debug tools

EZ-USB FX2LP USB 2.0 MCU, 8051 48MHz, 16KB RAM, GPIF, 56-SSOP.

Integrates 8051 core with USB 2.0 transceiver and SIE. Firmware runs from internal 16KB RAM loaded via USB. GPIF provides programmable state machine for glueless external bus interfaces. Slave FIFO mode allows external masters to access endpoint buffers.

Pin Name Function
15,16 D+/D- USB Data
49 RESET# Reset
  • Industrial cameras and 3D scanners
  • Biometric and portable medical devices
  • Memory card readers and ADSL modems
  • Data acquisition and debug tools
Part Notes
CY7C68013A-56BAXCT 56-VFBGA option
CYUSB3014 USB 3.0 FX3 successor
