Home > Integrated Circuits ICs > CY8C3446LTI-074

CY8C3446LTI-074

PSoC 3, 8051 core, 24 UDB, analog, TQFP-100

13046

Effective Inventory
Go to Inquiry

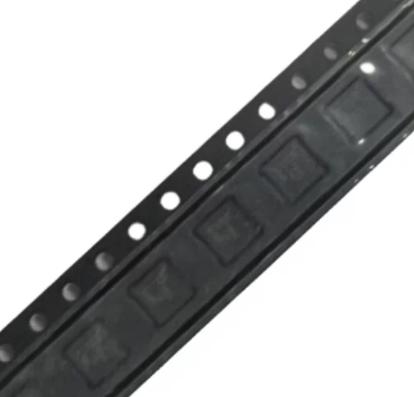

Image for reference only

Manufacturer Part：

CY8C3446LTI-074

Package：

TQFP-100

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

H01524A

VICTRON_SMP-C5884 (W6009, EE35)

SMP-C6060 / BPC_IP65_12V_XL(25A)

TLE42644G-HT,SOT223-4

IKW75N65ES5XKSA1

74HCT4053D.653

SPT25/ 5-V-50

LP2985-33DBV

Description

Product Overview

The CY8C3446LTI-074 from Infineon (Cypress) is a PSoC 3 programmable system-on-chip combining an 8051 core at 50 MHz with 24 universal digital blocks (UDBs), a delta-sigma ADC, PGAs, DACs, and comparators. It enables custom mixed-signal peripherals configured in hardware without RTL.

Key Specifications

Function PSoC 3 programmable system-on-chip
Core 8051 (up to 50 MHz)
Flash 32 KB
RAM 2 KB + 1 KB EPACT
UDBs 24 universal digital blocks
Analog Delsigma ADC, PGA, comparator, DAC
Package TQFP-100 (14x14mm)

Working Principle

The 8051 core runs application firmware. 24 UDBs implement custom digital peripherals (counters, PWM, UART, SPI, state machines) configured via PSoC Creator. Analog blocks include an 8-20 bit delta-sigma ADC, up to 4 PGAs, 4 voltage DACs, and 4 comparators with routing fabric. All analog and digital routing is configured at design time, eliminating external glue logic.

Applications

  • Custom mixed-signal peripheral
  • Motor control with analog sense
  • Sensor interface with PGA+ADC
  • Industrial control

The CY8C3446LTI-074 from Infineon (Cypress) is a PSoC 3 programmable system-on-chip combining an 8051 core at 50 MHz with 24 universal digital blocks (UDBs), a delta-sigma ADC, PGAs, DACs, and comparators. It enables custom mixed-signal peripherals configured in hardware without RTL.

The 8051 core runs application firmware. 24 UDBs implement custom digital peripherals (counters, PWM, UART, SPI, state machines) configured via PSoC Creator. Analog blocks include an 8-20 bit delta-sigma ADC, up to 4 PGAs, 4 voltage DACs, and 4 comparators with routing fabric. All analog and digital routing is configured at design time, eliminating external glue logic.

Pin Group Name Description
GPIO P0-P4 Programmable I/O (analog/digital)
Power VDD/VSS 1.8-5V supply
Debug SSCLK/SSDATA SWD debug
XTAL XTAL_IN/OUT External crystal
  • Custom mixed-signal peripheral
  • Motor control with analog sense
  • Sensor interface with PGA+ADC
  • Industrial control
Model Manufacturer Key Difference
CY8C5888 Infineon PSoC 5LP (ARM Cortex-M3)
