EM638165TS-6G

128Mb SDRAM, 8M x 16bit, 166MHz, 3.3V, TSOP-54

5000

Effective Inventory
Go to Inquiry

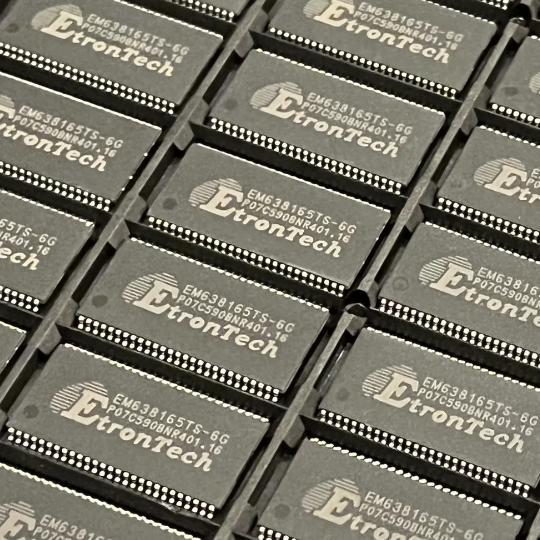

Image for reference only

Manufacturer Part：

EM638165TS-6G

Package：

TSOP-54

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The EM638165TS-6G is a 128Mbit synchronous DRAM (SDRAM) organized as 8M x 16 bits with 4 internal banks. It operates at 166MHz clock frequency with 6ns access time (-6G speed grade) and features a 3.3V single supply voltage. Packaged in a 54-pin TSOP II package, it is suitable for embedded systems, networking equipment, and set-top boxes.

Key Specifications

Type SDRAM
Capacity 128Mbit (8M x 16bit)
Speed 166MHz / 6ns (-6G)
Voltage 3.3V ± 0.3V
Banks 4 banks
Package 54-pin TSOP II

Features

  • 128Mbit SDRAM: 8M x 16 x 4 banks
  • 166MHz / 6ns access time
  • 3.3V single supply
  • LVTTL compatible
  • Programmable CAS latency 2/3
  • Auto-refresh and self-refresh

Applications

  • Embedded system memory
  • Network routers/switches
  • Set-top boxes
  • Industrial control
  • DSP systems

The EM638165TS-6G is a 128Mbit synchronous DRAM (SDRAM) organized as 8M x 16 bits with 4 internal banks. It operates at 166MHz clock frequency with 6ns access time (-6G speed grade) and features a 3.3V single supply voltage. Packaged in a 54-pin TSOP II package, it is suitable for embedded systems, networking equipment, and set-top boxes.

The EM638165TS operates as a synchronous DRAM where all operations are synchronized to the rising edge of the clock input. It uses multiplexed addressing with separate row and column addresses latched by RAS# and CAS# respectively. The 4-bank architecture allows interleaved operation for improved bandwidth.

Pin Group Name Description
Data DQ0-DQ15 16-bit data bus
Address A0-A11 Multiplexed address inputs
Bank BA0, BA1 Bank select (4 banks)
Clock CLK, CKE Clock and clock enable
Control CS#, RAS#, CAS#, WE# Command inputs
Data Mask LDQM, UDQM Byte data mask
  • Embedded system memory
  • Network routers/switches
  • Set-top boxes
  • Industrial control
  • DSP systems
Manufacturer Part Number Description
Samsung K4S281632K-UC60 128Mb SDRAM, 166MHz
Micron MT48LC8M16A2P-6A 128Mb SDRAM, 166MHz
ISSI IS42S16800D-6TLI 128Mb SDRAM, industrial
