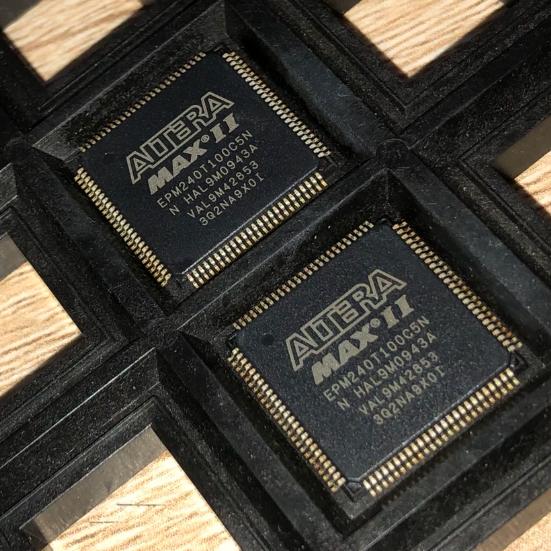

EPM240T100C5N
100-pin TQFP
EPM240T100C5N is an Intel/Altera MAX II EPM240 CPLD, 240 macrocells, 100-pin TQFP, commercial grade.
| Type | MAX II CPLD |
| Macrocells | 240 |
| UFM | 8,192 bits user flash |
| Package | 100-pin TQFP (T100) |
| Speed Grade | C5 |
| Series | EPM240 |
Refer to manufacturer datasheet for detailed application information and design guidelines.
EPM240T100C5N is an Intel/Altera MAX II EPM240 CPLD, 240 macrocells, 100-pin TQFP, commercial grade.
The EPM240T100C5N is a MAX II CPLD from Intel/Altera. It uses a macrocell-based architecture with programmable AND/OR logic arrays and flip-flops. The Macrocells are grouped into Logic Array Blocks (LABs) interconnected by a programmable routing matrix. User Flash Memory (UFM) provides non-volatile storage. Configuration is instant-on from on-chip flash, enabling the device to be operational immediately after power-up without external configuration. I/O elements support multiple standards and feature programmable drive strength and slew rate.
| Pin Group | Name | Description |
|---|---|---|
| I/O | GPIO | Programmable I/O with multiple drive strength settings |
| Power | VCC, VCCIO | Core and I/O supply (1.8V/2.5V/3.3V) |
| Ground | GND | Ground reference |
| JTAG | TDI, TDO, TMS, TCK | IEEE 1149.1 JTAG boundary scan and ISP |
| Clock | CLK | Global clock input |
| Model | Manufacturer | Key Difference |
|---|---|---|
| XC2C128 | Xilinx | CoolRunner-II, 128 macrocell, ultra-low power |
| MACHXO2 | Lattice | 6K LUT CPLD with embedded flash |
