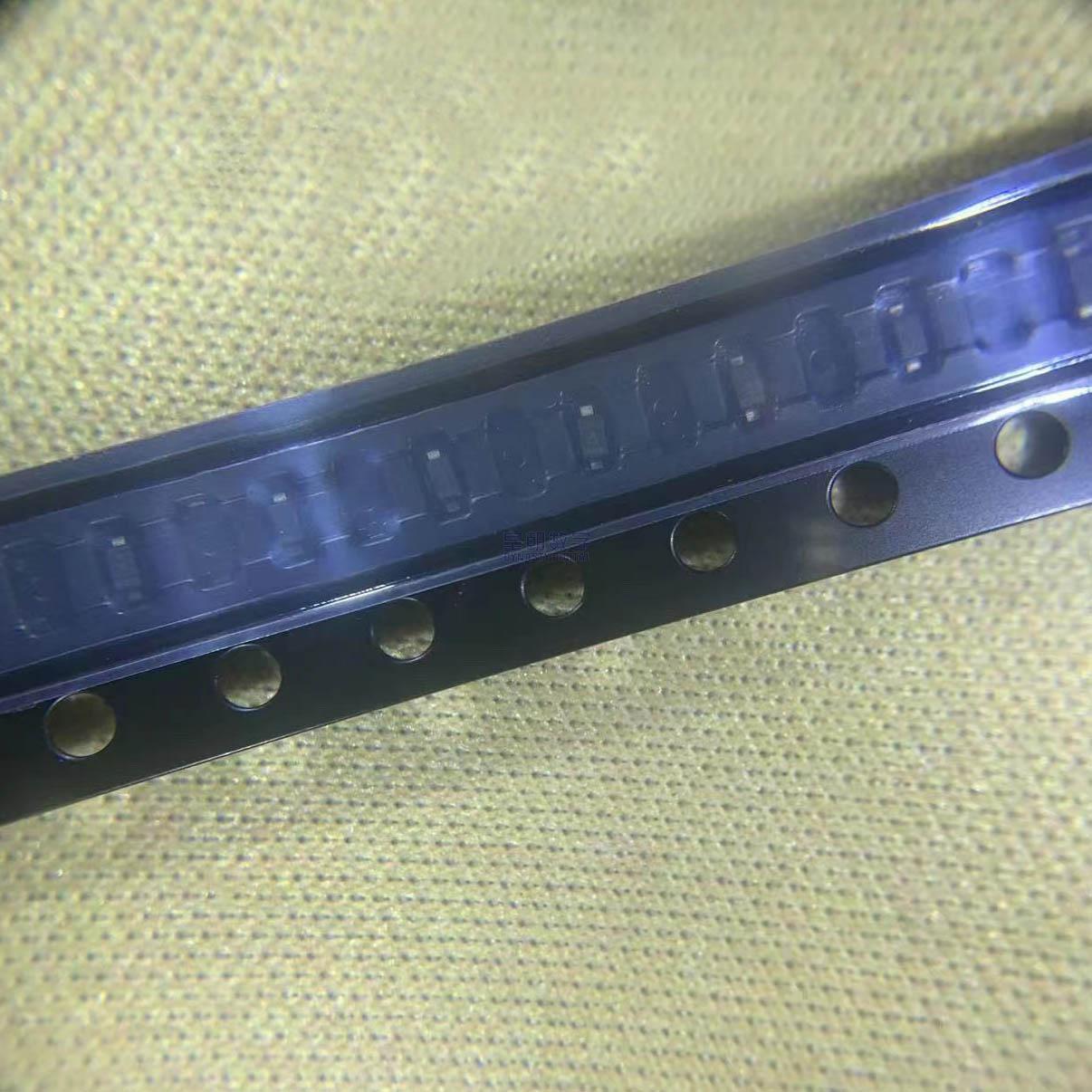

ESD5Z12T1G

The ESD5Z12T1G is a unidirectional electrostatic discharge (ESD) protection diode from ON Semiconductor, designed to provide robust transient voltage protection for sensitive electronic circuits in a compact surface-mount package. Part of ON Semi’s extensive portfolio of circuit protection devices, the ESD5Z series offers high ESD withstand capability with low capacitance in ultra-small packages, making them ideal for protecting high-speed data lines and I/O ports in space-constrained portable electronics. The ESD5Z12T1G variant has a 12 V reverse standoff voltage (VRWM), meaning it can be used on circuits operating at up to 12 V without conducting significant leakage current. This makes it suitable for protecting 12 V power supply rails, automotive 12V systems, and lower-voltage data lines where the working voltage is 12 V or less. The device provides an impressive ESD protection level of ±30 kV for both contact discharge and air discharge — far exceeding the IEC 61000-4-2 Level 4 standard (±8 kV contact, ±15 kV air). This high ESD rating ensures robust protection against even severe electrostatic discharge events that can occur during manufacturing, handling, or end-user operation. With a peak pulse power rating of 200 W for an 8/20 µs pulse waveform, the device can also absorb significant transient energy from lightning-induced surges and other fast transient events. The clamping voltage of 20 V maximum at 1 A peak pulse current ensures that protected circuits see voltages well below typical damage thresholds. A key feature for high-speed applications is the low capacitance of 15 pF typical, which minimizes signal distortion on high-frequency data lines. The response time is sub-nanosecond (< 1 ns), ensuring the device activates almost instantly when an ESD event occurs. The ultra-compact SOD-523 package measures only 1.6 mm × 0.8 mm × 0.7 mm, saving valuable PCB real estate and enabling protection in dense board designs. Packaged in tape-and-reel with 3,000 or 10,000 pieces per reel, the device is fully optimized for high-volume automated SMT assembly. It is RoHS compliant, lead-free, halogen-free, and rated for MSL 1 moisture sensitivity (unlimited floor life). With its combination of high ESD protection, low capacitance, small size, and 12 V rating, the ESD5Z12T1G is widely used in portable electronics, automotive 12V systems, industrial I/O interfaces, and consumer devices.

The ESD5Z12T1G operates as a Transient Voltage Suppressor (TVS) diode — essentially a zener diode optimized for very fast transient response and high peak power handling. In normal operation (when the line voltage is below the reverse standoff voltage VRWM of 12 V), the diode is reverse-biased and only a tiny leakage current (less than 100 nA) flows through it. In this state, the device appears essentially as an open circuit to the protected line, with only its small capacitance (15 pF) affecting the signal — this is why low capacitance is critical for high-speed data lines. When an ESD event or transient voltage spike occurs and the voltage on the line rises above the breakdown voltage (VBR, minimum 13.3 V), the diode enters avalanche breakdown. In avalanche mode, the diode begins to conduct heavily, providing a low-impedance path that shunts the transient current to ground and clamps the voltage across the protected circuit to a safe level. The clamping voltage (VC) of 20 V maximum (at 1 A peak pulse current) represents the maximum voltage that will appear across the protected circuit during a 1 A, 8/20µs transient event — well below the typical damage threshold of most 12 V-rated semiconductor devices. The 200 W peak pulse power rating indicates how much energy the device can absorb from a single transient pulse (specified for the standard 8/20µs pulse waveform used in surge testing). Unlike fuses or other one-time protection devices, TVS diodes are self-resetting: after the transient event passes and the voltage returns to normal levels, the diode automatically returns to its high-impedance blocking state and is ready to protect against the next event. The ‘unidirectional’ designation means the diode only conducts in the reverse breakdown direction for positive transients above VRWM. For negative-going transients (below ground), the diode acts as a simple forward-biased diode, clamping the voltage to approximately -0.7 V (one forward diode drop below ground). This is appropriate for circuits where the signal never goes below ground, such as unipolar power supply rails and positive-only data signals. (For bidirectional signals that swing both above and below ground, a bidirectional TVS with two diodes back-to-back would be used.) The very fast response time (< 1 ns) is critical for ESD protection because ESD events rise extremely quickly (typically in under 1 ns per the IEC 61000-4-2 standard). If the protection device doesn't activate fast enough, the ESD pulse can reach the protected IC before clamping occurs. The ESD5Z12T1G's sub-nanosecond response ensures it activates well within the ESD rise time, providing effective protection. Overall, the device works by sitting in parallel with the protected circuit (between the signal/power line and ground), normally invisible to the circuit but providing a fast, low-impedance shunt path when dangerous transient voltages appear.

The ESD5Z12T1G is a 2-terminal unidirectional ESD protection diode in SOD-523 (SC-79) ultra-small surface-mount package.

Package Details:

• Package Style: SOD-523 (also known as SC-79, ultra-small outline diode)
• Number of Terminals: 2 (diode package)
• Package Dimensions: ~1.6 mm (length) × 0.8 mm (width) × 0.7 mm (height)
• Lead Configuration: Two flat terminals on opposite ends
• Polarity Marking: Cathode (pin 2) typically marked with a band/dot
• Mounting: Surface mount technology (SMT)
• Termination: Matte tin (lead-free), solderable
• Packaging: Tape and reel (3,000 or 10,000 pieces per reel)
• Weight: Very light (milligrams)

Placement & Connection Notes:

• Place as close as possible to the connector/ESD entry point for best protection
• Cathode (marked end) connects to the protected line (signal or VCC)
• Anode connects to ground (GND)
• Use short, wide PCB traces for minimum inductance
• Multiple devices can be used for multi-line protection (e.g., USB D+/D-)
• Refer to the ON Semiconductor ESD5Z12T1G datasheet for exact dimensions, recommended PCB footprint, and application circuits

• High-Speed Data Line Protection: Used on USB, HDMI, DisplayPort, Ethernet, and other high-speed data interfaces to protect transceiver ICs from ESD damage during cable plug/unplug and handling, with low 15pF capacitance ensuring minimal signal integrity degradation
• Portable Electronics: Found in smartphones, tablets, laptops, wearables, and portable media players for ESD protection on I/O ports, charging ports, headphone jacks, and button inputs — the ultra-small SOD-523 package fits easily in space-constrained designs
• Computer Peripherals & Interfaces: Used in keyboards, mice, external drives, monitors, printers, and other computer peripherals to protect USB, audio, and video interface ports from user-induced ESD events
• 12V Power Rail Protection: Deployed on 12 V power supply inputs and DC-DC converter outputs to clamp transient voltage spikes and protect downstream 12V-rated ICs from over-voltage damage caused by hot-plug events, load dumps, and inductive switching transients
• Automotive Electronics (12V Systems): Used in automotive body electronics, infotainment systems, and sensor modules to protect 12V power lines and I/O circuits from ESD, load dump, and other automotive transients (where AEC-Q101 qualified variants are used)
• Communication & Networking Equipment: Found in routers, switches, modems, and telecom equipment for protecting Ethernet ports, serial interfaces, and power inputs from ESD and lightning-induced transients
• Industrial I/O & Sensor Interfaces: Deployed in industrial controllers, PLCs, and sensor interfaces to protect 12V sensor supply rails and digital I/O lines from ESD and transient voltages in industrial environments
• Consumer Electronics: Used in TVs, set-top boxes, audio/video equipment, gaming consoles, and home automation devices for ESD protection on HDMI, USB, audio, and power input ports
