2SA2151A

The 2SA2151A is a high-voltage, high-current silicon PNP epitaxial planar power transistor from Sanken Electric, designed primarily for high-fidelity audio power amplifier output stages. With a collector-emitter voltage rating of -230 V and continuous collector current of -15 A, this device is capable of delivering substantial output power in audio amplifier designs.

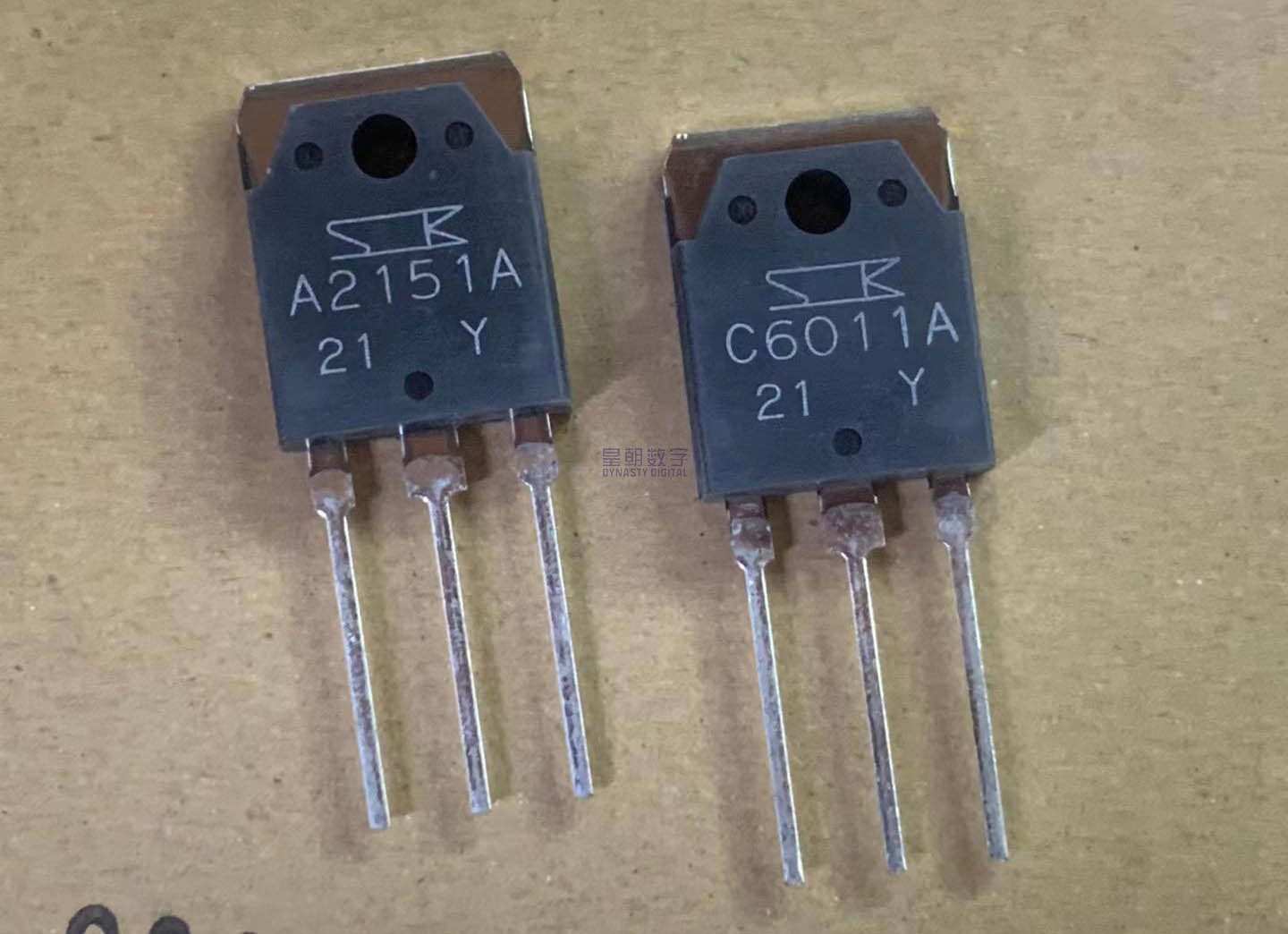

As the PNP complement to the NPN 2SC6011A, the 2SA2151A forms a matched pair widely used in push-pull (complementary symmetry) audio output stages. The DC current gain (hFE) ranges from 50 to 180, with three gain ranks available for better matching between complementary pairs: O-rank (50-100), P-rank (70-140), and Y-rank (90-180). This gain grading allows amplifier designers to select closely matched pairs for improved symmetry and reduced distortion.

The device features a wide Area of Safe Operation (ASO), which is critical for reliable operation in linear audio amplifier applications where the transistor operates across the full voltage-current range. The saturation voltage of -0.5 V max at -5 A collector current contributes to low output stage losses. The transition frequency (fT) of 20 MHz typical ensures good gain well into the audio bandwidth and beyond, contributing to amplifier stability and high-frequency response.

Housed in the TO-3P (SC-65) package, the 2SA2151A provides excellent thermal dissipation through its metal flange, enabling efficient heat sinking for the 160 W power dissipation rating (at 25°C case temperature). The junction temperature range of -55°C to +150°C provides ample thermal headroom for high-power operation with proper heatsinking. Note: DigiKey has listed the original 2SA2151 (non-A version) as obsolete, with 2SA1294 as a recommended substitute, but the 2SA2151A remains in active production from Sanken for audio applications.

The 2SA2151A is a PNP bipolar junction transistor (BJT) using epitaxial planar construction. Here is how it operates:

1. Device Structure: A PNP transistor consists of three semiconductor regions – an n-type base sandwiched between p-type emitter and p-type collector regions. The 2SA2151A uses epitaxial planar construction where the collector is formed on a heavily doped substrate, with a lightly doped epitaxial layer on top that forms the main collector drift region. The base is diffused into the epitaxial layer, and the emitter is diffused into the base region.

2. Basic Operation (PNP):
– Active Mode: When VEB > VEB(ON) (~ -0.7 V) and VEC > VCE(sat), the transistor operates in the active (linear) region. Holes are injected from the emitter into the base, where they diffuse across to the collector. The base current controls the collector current: Ic = hFE * Ib.
– Saturation: When VEC drops below VCE(sat) (~ -0.5 V), both base-emitter and base-collector junctions are forward biased. The transistor acts as a closed switch with low voltage drop.
– Cutoff: When VEB < VEB(ON), very little current flows (leakage only). The transistor acts as an open switch. 3. Gain Characteristics: The DC current gain hFE ranges from 50 to 180, specified at VCE = -4 V and IC = -3 A. Gain varies with collector current, temperature, and voltage. Gain ranks (O/P/Y) allow selecting matched pairs. hFE typically decreases at very high currents (toward 15 A) and very low currents. 4. Frequency Response: The transition frequency fT (20 MHz typical) is the frequency at which the current gain drops to unity. For audio applications (up to 20 kHz), the gain is well above the DC hFE value, ensuring ample feedback margin for low-distortion amplifier designs. The output capacitance Cob (~450 pF) affects high-frequency performance and stability compensation. 5. Thermal Considerations: – Total power dissipation: 160 W at TC = 25°C – Thermal resistance junction-to-case: typically ~0.78°C/W – Maximum junction temperature: 150°C – Proper heatsinking is essential for high-power operation 6. Safe Operating Area (SOA): The wide SOA means the transistor can safely operate across a wide range of voltage and current conditions simultaneously. This is especially important in audio amplifiers where the instantaneous operating point varies throughout the signal cycle. A wide SOA prevents second breakdown failures.

TO-3P Package Pinout (front view, pins facing down):

    ___________
   /
  |  [Tab]      |  <-- Case = Collector (C)
   ___________/
     |   |   |
     1   2   3
    B    E    C

Pin order from left to right (looking at front of device, pins pointing down): Pin 1 = Base, Pin 2 = Emitter, Pin 3 = Collector. The metal tab/case is also the collector (same electrical potential as Pin 3). TO-3P (also known as SC-65 or TO-247-3 in some classifications). Package dimensions: approx 15.6 x 20.0 mm body, 5.0 mm max height, 5.08 mm pin pitch. Mounting hole in center of tab for heatsink attachment.

Important: The case/tab is at collector potential. When mounting to a grounded heatsink, an insulating pad (e.g., mica or thermal pad) and insulating bushings must be used to prevent electrical shorting of the collector to ground.

• Hi-Fi Audio Power Amplifiers (Output Stage): High-fidelity audio power amplifiers where the 2SA2151A (PNP) paired with 2SC6011A (NPN) forms the complementary push-pull output stage. The -230 V rating enables high-voltage rail designs for 100W+ per channel output power. Wide SOA and low saturation voltage contribute to low distortion and high efficiency.
• Professional Audio Equipment: Studio monitors, PA systems, instrument amplifiers, and professional audio amplifiers requiring high power, high reliability, and excellent sound quality. Multiple gain ranks (O/P/Y) enable precise gain matching between complementary pairs for optimal cancellation of even-order harmonics.
• High-Voltage Linear Regulators: Series-pass elements in high-voltage linear power supplies and regulators. The -230 V VCEO rating allows regulators with high input-output differential voltages. PNP configuration is useful for low-dropout and negative regulator topologies.
• DC-DC Converters and Power Supplies: Switching elements in high-voltage DC-DC converters, offline switching power supplies, and inverter circuits. The 15 A current rating and 160 W dissipation handle substantial power levels, while the 20 MHz fT supports moderate switching frequencies.
• Motor Drive Circuits: Power stages in DC motor controllers, servo drives, and variable-speed motor drives requiring high current and voltage capability. PNP devices are used for high-side switching configurations in H-bridge motor drive circuits.
• High-Voltage Switching Circuits: High-voltage switching applications in industrial equipment, inverters, and power distribution systems. The wide SOA ensures reliable operation under inductive load switching conditions where voltage and current stress overlap during transitions.
• Industrial Power Control: Industrial control systems, welding equipment, and power management requiring high-voltage, high-current PNP switching or linear control. The rugged epitaxial planar construction and wide SOA provide reliable operation in demanding industrial environments.
