SGM4890YMS

1.1W Class AB audio power amplifier, 2.5-5.5V supply, BTL output, 0.01μA shutdown current, MSOP-8, -40°C to 85°C

12296

Effective Inventory
Go to Inquiry

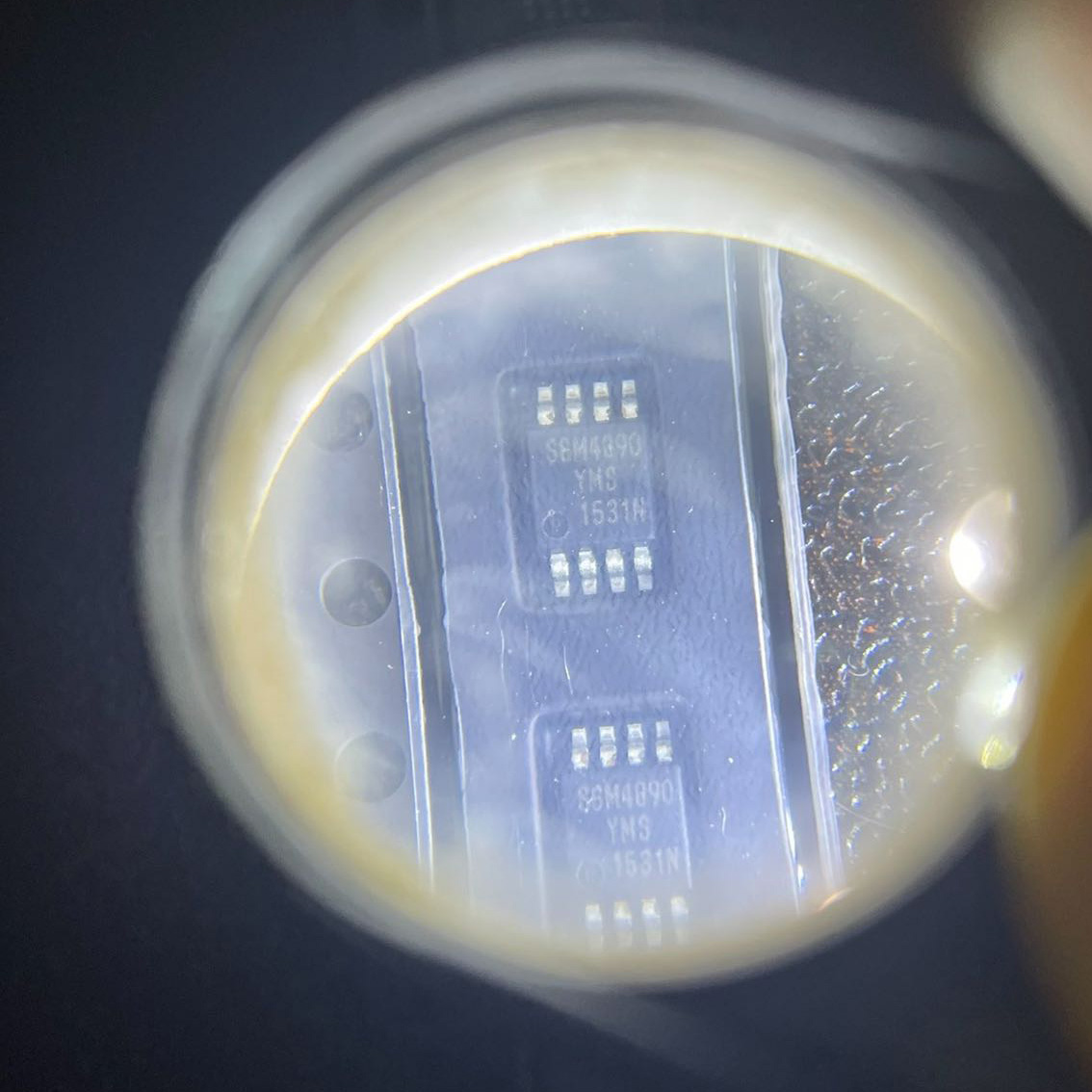

Image for reference only

Manufacturer Part：

SGM4890YMS

Package：

MSOP-8

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

SST25VF020B-80-4I-SAE

SN74LVC1G74DCU

SC33911BAC

S-81337HG-KE-T1

OSG95R350HF

MT5016A

MJL4302

MJL4281

Description

Product Overview

The SGM4890YMS is a 1.1W fully integrated Class AB audio power amplifier from SG Micro Corp (SGMICRO). Designed for portable applications, it operates from a single 2.5V to 5.5V power supply and delivers 1.1W of continuous output power into an 8Ω BTL (Bridge-Tied Load) speaker with 1% THD+N at 5V supply. The device features shutdown mode with ultra-low quiescent current, thermal shutdown protection, and requires no output coupling or bootstrap capacitors, making it ideal for space-constrained portable devices.

Key Specifications

Manufacturer SG Micro Corp (SGMICRO)
Product Category Class AB Audio Power Amplifier
Output Power (8Ω, THD+N=1%) 1.1W @ VCC=5.0V
Output Power (8Ω, THD+N=1%) 0.58W @ VCC=3.6V
Supply Voltage Range 2.5V to 5.5V
Quiescent Current (5V, no load) 4mA (typ), 8mA (max)
Shutdown Current 0.01μA (typical)
THD+N @ 1kHz 0.01% (typical)
PSRR @ 217Hz -72 dB @ VCC=5V
Wake-up Time (1μF bypass) 110ms typical
Shutdown Logic Level 1.8V compatible (active low)
Operating Temperature -40°C to +85°C
Package MSOP-8 (Green, RoHS compliant)

Features

  • 1.1W into 8Ω BTL load from 5V supply (THD+N = 1%)
  • Wide supply voltage range: 2.5V to 5.5V
  • Ultra-low shutdown current: 0.01μA typical
  • Excellent power supply rejection ratio (PSRR)
  • Fast turn-on time
  • Unity gain stable
  • Internal thermal shutdown protection
  • No output coupling capacitors required
  • No bootstrap capacitors required
  • Externally controlled gain (via external resistors)
  • Externally controlled turn-on time (via bypass capacitor)
  • Shutdown pin compatible with 1.8V logic
  • Green MSOP-8 package (RoHS & halogen free)
  • -40°C to +85°C operating temperature range

Applications

  • Mobile phones and smartphones
  • Portable audio players (MP3 players)
  • Personal digital assistants (PDAs)
  • GPS navigation devices
  • Notebook computers
  • Portable gaming devices
  • Bluetooth speakers
  • Wearable audio devices

The SGM4890YMS is a high-performance, fully integrated Class AB audio power amplifier manufactured by SG Micro Corp. Specifically designed for portable electronic devices, this amplifier delivers 1.1W of continuous output power into an 8Ω bridge-tied load (BTL) from a 5V power supply with only 1% total harmonic distortion plus noise (THD+N). Operating from a single 2.5V to 5.5V supply, it is compatible with standard lithium-ion battery systems. The SGM4890 features a low-power shutdown mode with a typical quiescent current of just 0.01μA, significantly extending battery life in portable applications. The shutdown pin is compatible with 1.8V logic levels, enabling direct interface with low-voltage microcontrollers. A key advantage of this device is its capacitor-less design – neither output coupling capacitors nor bootstrap capacitors are required, reducing bill of materials cost and PCB space. The gain is externally configurable via resistors, and the turn-on time can be adjusted using a bypass capacitor. Housed in a compact, green MSOP-8 package (RoHS compliant and halogen-free), the SGM4890 operates over the -40°C to +85°C temperature range and includes built-in thermal shutdown protection for enhanced reliability.

The SGM4890 is a Class AB bridged (BTL) audio power amplifier that drives a speaker connected between two complementary outputs, effectively doubling the output voltage swing compared to a single-ended amplifier. The input signal is fed to a differential preamplifier stage that sets the closed-loop gain based on external feedback resistors. The preamplifier output drives two power output stages operating in push-pull configuration: one output sources current while the other sinks current, creating a differential voltage across the speaker load. The Class AB biasing scheme ensures low crossover distortion while maintaining reasonable efficiency. An internal bias generator provides stable reference voltages for all amplifier stages, and a common-mode feedback loop ensures the output DC offset remains within tight specifications. The shutdown control pin, when driven low, disables the entire amplifier including the bias circuitry, reducing current consumption to near-zero levels. The turn-on/off behavior is controlled by the bypass capacitor, which provides a soft-start ramp that minimizes audible clicks and pops during power transitions. Internal thermal shutdown protection disables the output stages if the junction temperature exceeds safe limits, preventing device damage.

Pin Number Pin Name Description
1 SHUTDOWN Shutdown Control Input (active low, 1.8V logic compatible)
2 BYPASS Bypass Capacitor Connection (for soft-start)
3 IN+ Non-inverting Input
4 IN- Inverting Input
5 VO- Negative Output (BTL Output B)
6 V+ Positive Power Supply
7 VO+ Positive Output (BTL Output A)
8 GND Ground
  • Smartphones and mobile phones
  • Portable MP3 and media players
  • Personal digital assistants (PDAs)
  • GPS navigation systems
  • Notebook and tablet computers
  • Portable gaming consoles
  • Bluetooth audio devices and speakers
  • Wearable technology with audio output
Model Manufacturer Description
LM4890 Texas Instruments 1W audio power amplifier, MSOP-8
PAM8303 Diodes Inc. 3W class D audio amplifier
NS4150 Nsiway 3W class AB/D audio amplifier
HT6809 Hottech 3W class D audio amplifier
SGM4891 SGMICRO 1.2W audio amp, TDFN-2×2-8L package
Recommend Parts
