VL813-Q7

USB 3.0 4-port hub controller, 5Gbps SuperSpeed, integrated PHY+DC-DC+BC1.2, QFN-76, VIA Labs VL813

3420

Effective Inventory
Go to Inquiry

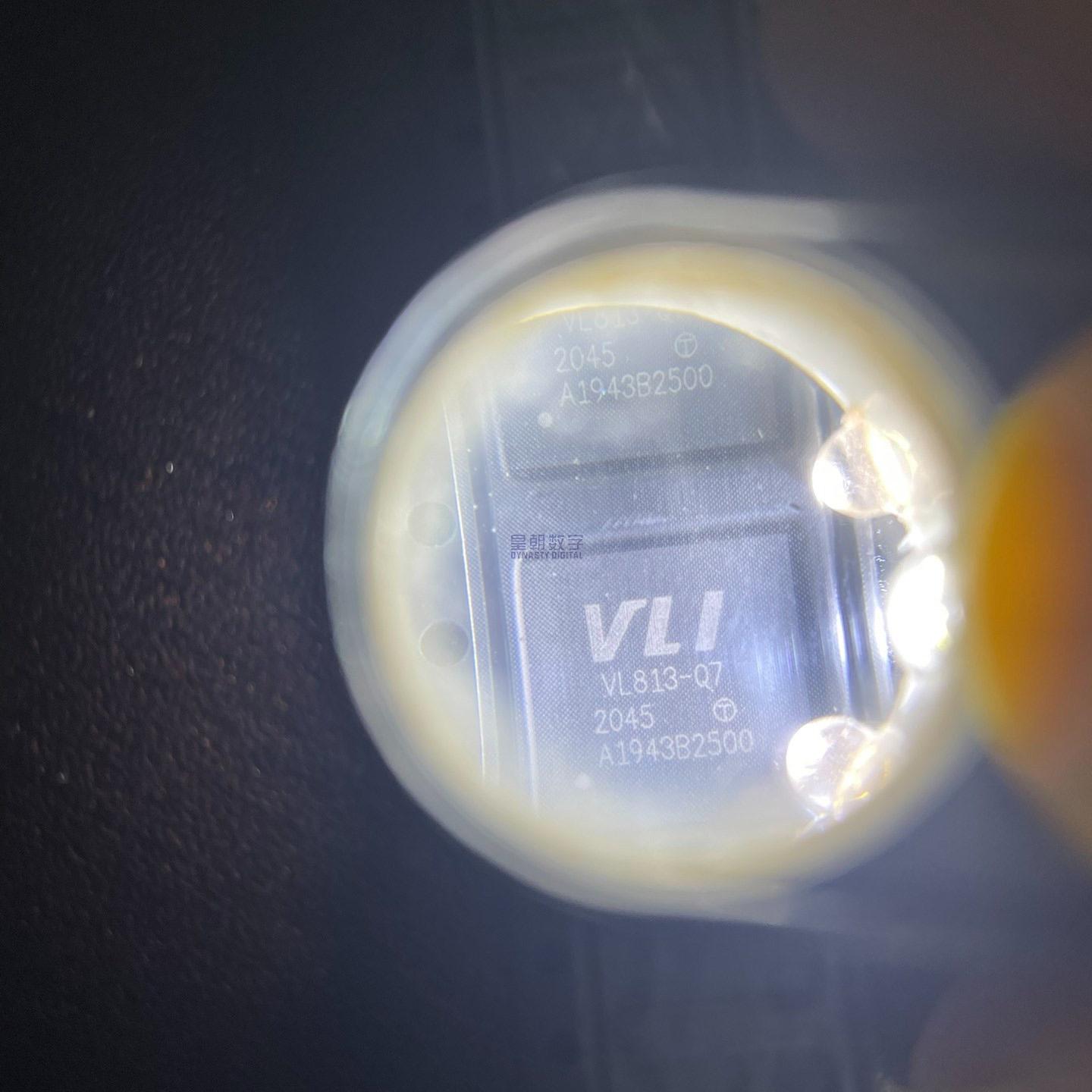

Image for reference only

Manufacturer Part：

VL813-Q7

Package：

QFN-76 (Q7) - 9.0 x 9.0 x 0.85 mm, 0.4mm pitch, exposed thermal pad

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1042

TJA1040

TH8055JDC

NCF3320EHN

MT8870DSR1

MCP2510-I

MCP23017-E

MAX485ESA

Description

Product Overview

The VL813-Q7 is a SuperSpeed USB 3.0 hub controller from VIA Labs, Inc. (VLI), a leading supplier of USB connectivity solutions. The VL813 is a 4-port USB 3.0 hub controller that integrates all necessary functions for a USB 3.0 hub implementation, including SuperSpeed (5 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) support on both upstream and downstream ports.

Packaged in a 76-pin QFN (Q7 suffix) package measuring 9 mm × 9 mm with 0.4 mm pitch, the VL813 features VIA Labs’ in-house designed USB 3.0 PHY with advanced CMOS technology for low power consumption and high signal integrity. The device supports full USB 3.0 hub compliance including hub class requests, multiple TT (Transaction Translator) architecture for USB 2.0 traffic, and various low-power management modes including U0, U1, U2, U3, and selective suspend.

The VL813-Q7 integrates a 5V to 3.3V/1.2V DC-DC converter, reducing external component count and BOM cost. It also features integrated battery charging (BC1.2) support on downstream ports, allowing connected devices to charge at higher currents when the hub is in standby or when only the charging function is needed. The device operates from a single 5V supply and supports both self-powered and bus-powered hub configurations, making it highly versatile for a wide range of USB hub applications.

Key Specifications

Parameter Value
USB Specification USB 3.0 SuperSpeed (5 Gbps)
Hub Configuration 1 upstream port + 4 downstream ports
Speed Support SuperSpeed (5Gbps), High-Speed (480Mbps), Full-Speed (12Mbps), Low-Speed (1.5Mbps)
Controller Architecture Single-chip USB 3.0 hub controller
USB PHY Integrated USB 3.0 PHY (SuperSpeed + USB 2.0)
Transaction Translator Multiple TT (Multi-TT) for full USB 2.0 bandwidth
Power Management U0, U1, U2, U3, selective suspend, USB LPM
Battery Charging BC1.2 CDP/DCP support on downstream ports
Supply Voltage 5 V (single supply, with internal regulators)
Integrated Regulators 5V to 3.3V and 5V to 1.2V DC-DC converters
Package QFN-76 (Q7), 9 x 9 mm, 0.4 mm pitch
Operating Temperature 0°C to 70°C (commercial) / –40°C to 85°C (industrial option)
Host Interface I²C/SMBus for configuration and firmware
LED Control Integrated LED indicators for port status

Features

  • USB 3.0 SuperSpeed compliant, 5 Gbps data transfer rate
  • Four downstream SuperSpeed USB 3.0 ports
  • Full backward compatibility with USB 2.0/1.1/1.0
  • Multi-TT (Transaction Translator) architecture
  • Integrated USB 3.0 PHY and USB 2.0 PHY
  • Single 5 V supply with integrated DC-DC converters
  • Integrated battery charging (BC1.2 CDP/DCP)
  • Supports both self-powered and bus-powered modes
  • Low power consumption with USB 3.0 LPM support
  • UASP (USB Attached SCSI Protocol) compatible
  • Port status LED drivers (per-port activity indicators)
  • I²C/SMBus interface for configuration and control
  • Built-in firmware with customizable PID/VID
  • Customizable with external SPI flash (optional)
  • 76-pin QFN package, 9 × 9 mm footprint
  • RoHS compliant and lead-free

Applications

  • Standalone USB 3.0 hubs and docking stations
  • Monitor and display USB hubs
  • Keyboard and monitor integrated hubs
  • Laptop and PC motherboard USB expansion
  • USB-C docks and adapters
  • External storage enclosures with hub
  • Industrial USB hubs and kiosks
  • TV and set-top box USB ports

The VL813-Q7 is a high-performance SuperSpeed USB 3.0 4-port hub controller from VIA Labs, Inc. (VLI), a fabless semiconductor company specializing in USB connectivity solutions. As one of VLI’s most popular USB 3.0 hub controllers, the VL813 provides a complete single-chip solution for adding USB 3.0 hub functionality to a wide variety of products.

The VL813 supports the full USB 3.0 SuperSpeed data rate of 5 Gbps on both the upstream and all four downstream ports. It maintains full backward compatibility with USB 2.0, USB 1.1, and USB 1.0 devices, supporting High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) operation. The device features a Multi-TT (Transaction Translator) architecture, which ensures that USB 2.0 devices on different downstream ports can operate at full bandwidth simultaneously, without sharing the USB 2.0 bandwidth as single-TT hubs do.

A key advantage of the VL813 is its high level of integration. The device includes VIA Labs’ proprietary in-house USB 3.0 PHY, known for low power consumption and excellent signal integrity, reducing the need for external signal conditioning components. It also integrates 5V-to-3.3V and 5V-to-1.2V DC-DC converters, allowing the entire hub to operate from a single 5V supply and minimizing the number of external power components required.

The VL813 supports USB Battery Charging Specification 1.2 (BC1.2), enabling downstream ports to charge connected devices at higher currents (up to 1.5A for DCP mode) when the system is in standby or when charging-only mode is activated. This feature is particularly valuable in docking stations, monitor hubs, and desktop hubs.

Available in a 76-pin QFN package (9mm x 9mm) with 0.4mm pitch, the VL813-Q7 provides a compact, cost-effective solution for USB 3.0 hub implementations across consumer, industrial, and computing applications.

The VL813 USB 3.0 hub controller operates through several key functional blocks:

1. USB 3.0 Upstream Port: The upstream port connects to the host computer or a higher-level hub. It handles SuperSpeed (5Gbps) traffic using differential signaling on two pairs (TX and RX). The port is fully compliant with the USB 3.0 specification including link layer, protocol layer, and hub class requests.

2. USB 3.0 Downstream Ports: Four SuperSpeed downstream ports each have their own USB 3.0 PHY. The hub controller manages the routing of SuperSpeed packets between the upstream port and the appropriate downstream port(s), handling hub-specific functions such as split transactions, broadcast, and selective suspend.

3. USB 2.0 Hub Function: Integrated within the VL813 is a complete USB 2.0 hub supporting HS/FS/LS speeds. The Multi-TT architecture provides dedicated Transaction Translators for each downstream port, preventing USB 2.0 devices from blocking each other and maintaining full bandwidth per port.

4. Hub Controller Logic: The main controller logic handles all hub-level functions including configuration, power management, port status monitoring, over-current detection, and LED control. It manages both USB 3.0 and USB 2.0 hub functions in a coordinated manner.

5. Power Management: The VL813 supports all USB 3.0 power management states (U0 active, U1/U2 low-power states, U3 suspend). It also supports USB Link Power Management (LPM) and selective suspend, allowing individual ports to enter low-power states while others remain active.

6. Integrated Regulators: Built-in DC-DC converters generate the 3.3V and 1.2V supplies needed by the internal logic and PHY from the 5V system supply. This reduces BOM cost and board space by eliminating the need for external regulators.

7. Battery Charging (BC1.2): The downstream ports support Battery Charging Specification 1.2, with both CDP (Charging Downstream Port) and DCP (Dedicated Charging Port) modes, enabling faster charging of smartphones, tablets, and other USB-charged devices.

<n

<n

Group Signal Type Count Description
USB 3.0 Upstream SS_TX/RX 2 diff pairs SuperSpeed upstream transmit and receive differential pairs
USB 3.0 Downstream SS_TX/RX ×4 8 diff pairs 4 SuperSpeed downstream ports, each with TX+RX pairs
USB 2.0 Upstream DP/DM 1 diff pair USB 2.0 upstream data pair
USB 2.0 Downstream DP/DM ×4 4 diff pairs 4 USB 2.0 downstream port data pairs
Power VDD_5V multiple 5V main supply input
Power VDD_3V3 multiple 3.3V (internal LDO or external supply)
Power VDD_1V2 multiple 1.2V core supply
Ground GND multiple Ground pins and exposed thermal pad
Port Power Control PWR_EN ×4 4 Downstream port power enable outputs (to MOSFETs)
Over-Current OC# ×4 4 Over-current detection inputs (from power switches)
LED Control LED ×4 4 Port status LED driver outputs
Configuration I²C (SCL/SDA) 2 I²C/SMBus interface for configuration and FW update
Configuration SPI 4 SPI flash interface (optional, for firmware storage)
Clock XTAL_IN/OUT 2 Crystal oscillator interface (typical 25MHz or 30MHz)
Reset RESET# 1 Chip reset input (active low)
Straps CFG pins several Configuration strap pins for mode selection at power-up
BC1.2 CDP/DCP control per port Battery charging mode control signals

Note: Pin list is an abstraction based on typical USB 3.0 hub controller architecture. The 76-pin QFN package includes all USB data, power, control, and configuration pins. Exact pin assignment should refer to the official VIA Labs datasheet. Exposed thermal pad must be soldered to the ground plane for proper thermal dissipation.

  • Standalone USB Hubs: Desktop and portable USB 3.0 hubs offering 4 SuperSpeed ports for PC and Mac expansion, where the VL813’s high integration enables compact designs with minimal external components.
  • Monitor and Display Hubs: USB hubs integrated into monitors and all-in-one PCs, providing convenient side-mounted USB ports for keyboard, mouse, storage, and other peripherals.
  • Docking Stations: USB-C and USB 3.0 docking stations for laptops, where the VL813 provides downstream USB expansion alongside video, Ethernet, and charging functions.
  • Motherboard Expansion: Desktop PC motherboards and laptop mainboards using the VL813 to expand the number of available USB 3.0 ports from a single host controller.
  • External Storage Enclosures: Multi-drive USB 3.0 storage enclosures where the hub controller allows multiple drives to share a single USB connection to the host computer.
  • Industrial USB Hubs: Industrial-grade USB hubs for factory automation, data acquisition, and kiosk systems requiring reliable USB connectivity in demanding environments (industrial temperature variant).
  • Smart TV and Set-Top Boxes: Smart TVs, set-top boxes, and media players that need multiple USB ports for external storage, wireless adapters, and input devices.
  • Keyboard and Peripheral Hubs: High-end keyboards and peripheral devices with integrated USB 3.0 pass-through hubs for additional connectivity.
Manufacturer Part Number Ports USB Spec Notes
VIA Labs VL812-Q7 4 USB 3.0 Previous generation, similar feature set
VIA Labs VL817-Q7 4 USB 3.1 Gen1 Newer generation with PD support
Realtek RTL9210B – USB 3.1 USB-to-NVMe bridge, not a hub
Texas Instruments TUSB8041 4 USB 3.0 TI USB 3.0 hub controller
Microchip USB5744 4 USB 3.1 Gen1 SmartHub with battery charging
Realtek RTS5411 4 USB 3.0 Cost-effective alternative hub
