MAX485ESA

RS-485/RS-422 half-duplex transceiver, 2.5Mbps, 5V, low power, SOIC-8, industrial temp

11200

Effective Inventory
Go to Inquiry

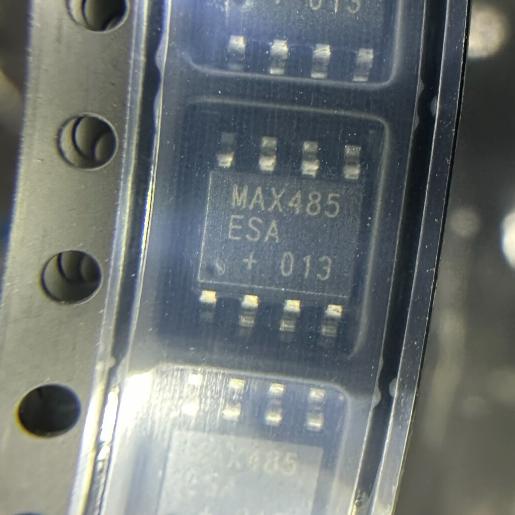

Image for reference only

Manufacturer Part：

MAX485ESA

Package：

SOIC-8 Narrow (3.9 x 4.9 mm, 1.27mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MAX485ESA is a low-power RS-485/RS-422 transceiver from Analog Devices (formerly Maxim Integrated). Designed for half-duplex communication, this device combines one driver and one receiver in a single SOIC-8 package. The MAX485 features an unrestricted slew rate driver supporting data rates up to 2.5 Mbps, with short-circuit current limiting and thermal shutdown protection. The receiver includes a fail-safe feature that guarantees a logic-high output when the input is open-circuited.

Key Specifications

Manufacturer Analog Devices / Maxim Integrated
Type RS-485/RS-422 Transceiver
Mode Half-Duplex
Data Rate Up to 2.5 Mbps
Supply Voltage 5V (single supply)
Supply Current 300 µA typical (no load)
Number of Drivers 1
Number of Receivers 1
Operating Temperature -40°C to +85°C
Package SOIC-8 (Narrow)
Bus Pins per Unit Load 1 unit load (12kΩ input)

Features

  • Half-duplex RS-485/RS-422 transceiver
  • Up to 2.5 Mbps data rate (unlimited slew rate)
  • Single 5V supply operation
  • Low quiescent current: 300 µA typical
  • Short-circuit current limited drivers
  • Thermal shutdown protection
  • Receiver fail-safe (open circuit = logic high)
  • Up to 32 transceivers on the bus
  • -40°C to +85°C industrial temperature range
  • SOIC-8 package

Applications

  • Industrial control local area networks
  • RS-485/RS-422 communication links
  • Level translation and interface bridging
  • Building automation and HVAC systems
  • Security and access control systems
  • Industrial sensors and instrumentation

The MAX485ESA is a low-power RS-485/RS-422 transceiver manufactured by Analog Devices (formerly Maxim Integrated). It is part of the MAX481/MAX483/MAX485/MAX487–MAX491/MAX1487 family of RS-485 transceivers, each designed for different speed and power requirements. The MAX485 specifically features an unrestricted slew rate driver capable of transmitting at data rates up to 2.5 Mbps, making it suitable for high-speed industrial communication applications. The device contains one driver and one receiver, designed for half-duplex operation where transmission and reception share the same differential pair but occur at different times. The driver output is short-circuit current limited and protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input features a fail-safe design that guarantees a logic-high output if the input is open-circuited, ensuring known output states under fault conditions. The MAX485 is a 1-unit-load device (12kΩ receiver input resistance), allowing up to 32 transceivers on a single RS-485 bus. The ‘E’ grade version supports the industrial temperature range of -40°C to +85°C.

The MAX485ESA operates as a differential line transceiver for RS-485/RS-422 communication standards. In transmit mode, the driver converts TTL/CMOS level digital input signals (DI pin) into differential output signals on the A and B bus pins. The driver outputs swing between approximately 0V and VCC – 1.4V, creating a differential voltage of at least 1.5V across the 54Ω characteristic impedance of the transmission line. The driver is enabled by the DE (Driver Enable) pin. In receive mode, the differential receiver detects the voltage difference between the A and B inputs and converts it back to a TTL/CMOS level output on the RO pin. The receiver is enabled when the RE (Receiver Enable) pin is low. The receiver has a fail-safe feature that ensures a high output state when the differential input is open, shorted, or connected to a terminated but undriven bus. The device includes several protection features: driver short-circuit current limiting prevents damage from bus faults, and thermal shutdown disables the driver outputs when junction temperature exceeds safe limits. For half-duplex operation, DE and RE are typically controlled together (or tied together with an inverter) to either drive the bus or listen to the bus.

Pin Name Type Function
1 RO Output Receiver Output (TTL/CMOS level)
2 RE Input Receiver Enable (active low)
3 DE Input Driver Enable (active high)
4 DI Input Driver Input (TTL/CMOS level)
5 GND Ground Ground
6 A I/O Differential bus A (non-inverting)
7 B I/O Differential bus B (inverting)
8 VCC Power Positive supply voltage (5V)
  • Industrial control networks and PLC communication
  • Building automation and HVAC control systems
  • Security systems and access control networks
  • Level translation between different logic families
  • Remote sensor monitoring and data acquisition
  • Instrumentation and test equipment interfaces
Manufacturer Part Number Package Notes
Texas Instruments SN75176B SOIC-8 Industry-standard RS-485 transceiver
Analog Devices MAX487ESA+ SOIC-8 1/4 unit load, 128 devices on bus
Analog Devices MAX483ESA+ SOIC-8 Slew-rate limited, 250kbps
Analog Devices MAX485ECSA+ SOIC-8 Enhanced ESD protection version
MaxLinear SP3485EN SOIC-8 3.3V RS-485 transceiver
