Product Overview

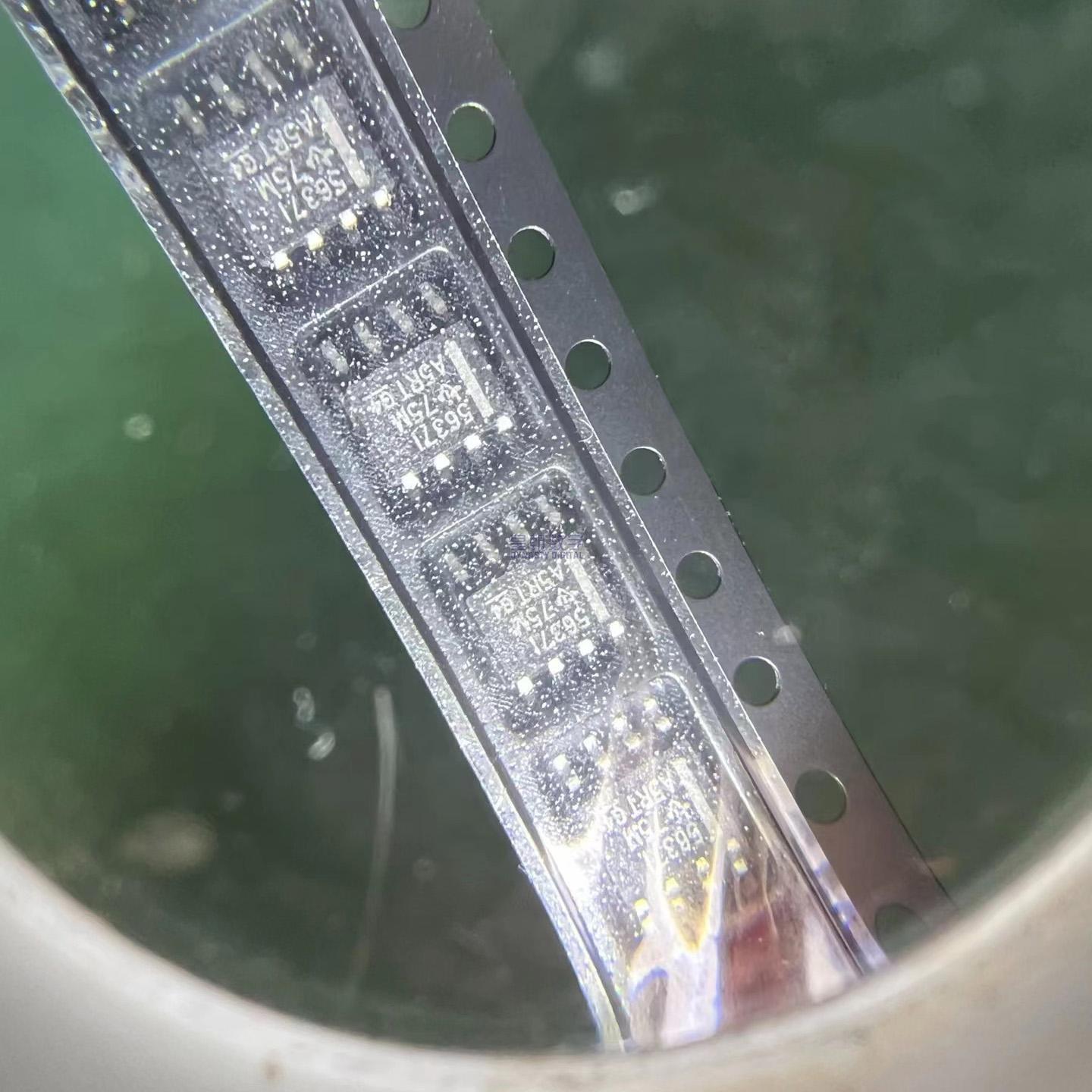

The TLV5637IDR-1 is a dual 10-bit voltage-output digital-to-analog converter (DAC) from Texas Instruments, designed for general-purpose applications requiring compact, low-power analog voltage generation. Operating from a single 2.7 V to 5.5 V supply, it features a 3-wire serial interface compatible with SPI, QSPI, and Microwire standards for glueless connection to microcontrollers and DSPs. Each of the two DAC channels uses a resistor string architecture with a rail-to-rail output buffer providing x2 gain and Class-AB output stage for low output impedance and fast settling. A key feature is the programmable settling time – 0.8 us in Fast mode or 2.8 us in Slow mode – enabling designers to optimize speed versus power consumption. The integrated programmable precision reference can supply up to 1 mA and also serve as a system reference. With differential nonlinearity under 0.1 LSB typical and guaranteed monotonicity over temperature, the TLV5637 delivers consistent performance across the -40 degC to +85 degC industrial temperature range. Packaged in an 8-pin SOIC (D) form factor, it is ideal for digital servo control loops, industrial process control, digital offset and gain adjustment, machine and motion control, mass storage device calibration, and other applications requiring compact, low-power dual-channel DAC performance.
Key Specifications
| Resolution | 10 bits |
| Number of DAC Channels | 2 (Dual) |
| Architecture | Resistor String |
| Output Type | Buffered Voltage Output (rail-to-rail, x2 gain) |
| Output Voltage Range | 0 V to V_ref x 2 (0 V to ~5 V with internal ref) |
| Digital Interface | 3-wire Serial (SPI / QSPI / Microwire compatible) |
| Supply Voltage (VDD) | 2.7 V to 5.5 V |
| Settling Time (Fast Mode) | 0.8 us typical |
| Settling Time (Slow Mode) | 2.8 us typical |
| INL (Integral Nonlinearity) | +/-1 LSB max |
| DNL (Differential Nonlinearity) | +/-0.1 LSB typical |
| Monotonicity | Guaranteed over temperature |
| Reference Type | Internal (programmable) or External |
| Reference Output Current | Up to 1 mA |
| Output Sink/Source Current | +/-1 mA |
| Power Consumption | 4.2 mW typical @ 5 V |
| Power-Down Mode | Yes |
| Update Rate | Up to ~278 kSPS |
| Operating Temperature | -40 degC to +85 degC |
| Package | SOIC-8 (D) |
Features
- Dual 10-bit voltage-output DAC
- Programmable internal voltage reference
- Programmable settling time (0.8 us fast / 2.8 us slow)
- 3-wire serial interface (SPI / QSPI / Microwire compatible)
- Compatible with TMS320 DSP serial ports
- Rail-to-rail output buffer with x2 gain
- Class-AB output stage for stability and fast settling
- Differential nonlinearity < 0.1 LSB typical
- Monotonic output over temperature
- Internal reference can source 1 mA (system reference)
- Power-down mode for low standby current
- Single supply: 2.7 V to 5.5 V
- CMOS implementation, low power
- Compact 8-pin SOIC package
- Industrial temperature range: -40 degC to +85 degC
- RoHS compliant
Applications
- Digital servo control loops
- Digital offset and gain adjustment
- Industrial process control systems
- Machine and motion control devices
- Mass storage device calibration
- Programmable voltage references and sources
- Data acquisition and test equipment
- Motor control and precision positioning
- Audio volume control and tone adjustment
- Sensor calibration and trimming circuits
- Battery-powered instrumentation
- Programmable current sources
- LED brightness control
- Automotive electronics
