TAS5760M

55W stereo Class-D audio amplifier, I2S input, closed-loop, 4.5V-26.4V, EQ/DRC, HTSSOP-48

8640

Effective Inventory
Go to Inquiry

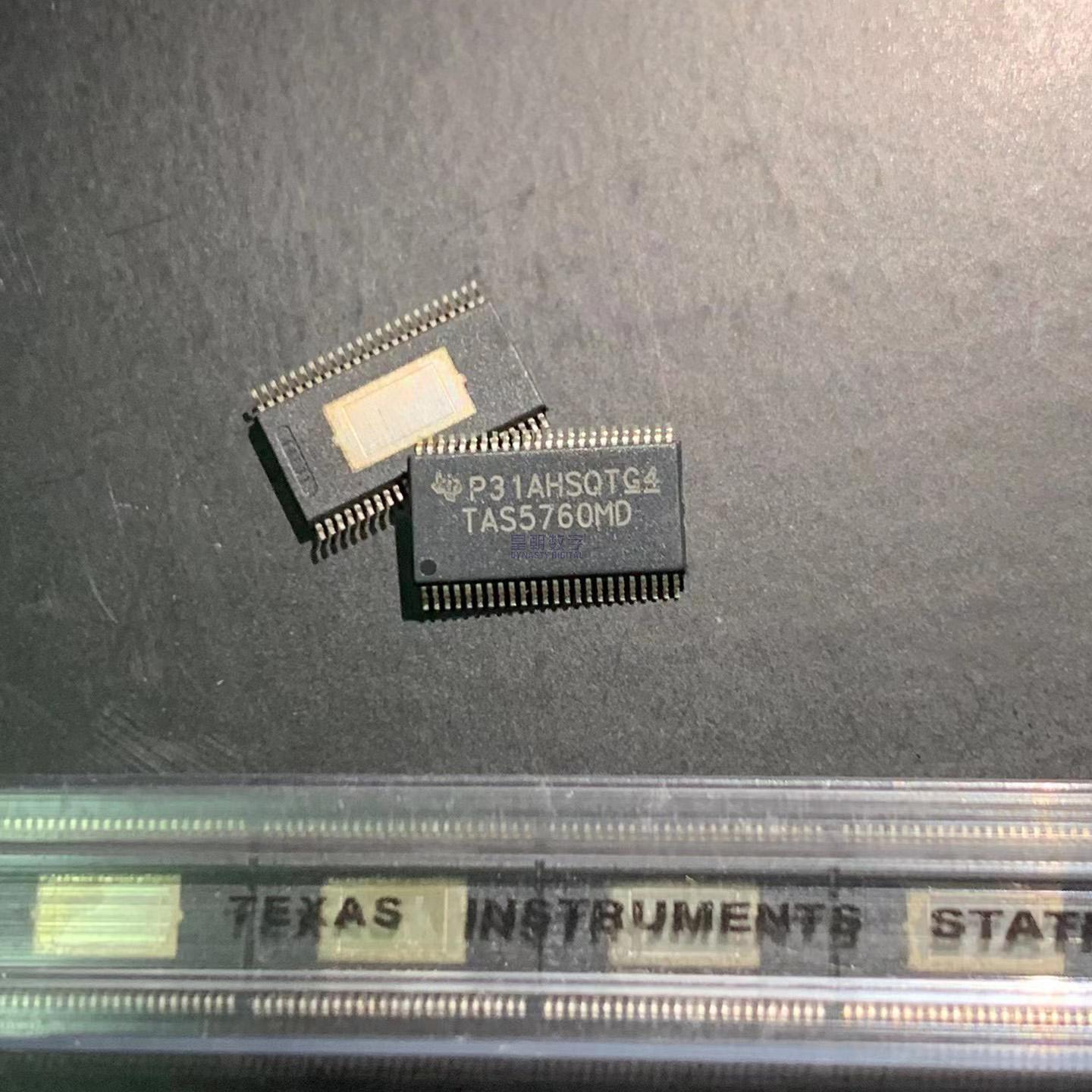

Image for reference only

Manufacturer Part：

TAS5760M

Package：

HTSSOP-48 (12.5 x 8.1 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TLV5637IDR-1

TLV3491AIDBVR

TJA1042

TJA1040

TH8055JDC

TDA10046HT

TC4066BP

TAS5716

Description

Product Overview

The TAS5760M is a 55 W stereo closed-loop digital-input Class-D audio amplifier from Texas Instruments, designed for cost-effective high-performance audio applications. Operating from a single 4.5 V to 26.4 V power supply, it delivers 0.03% THD+N at 1 kHz and 105 dB SNR with its closed-loop architecture providing improved PSRR and higher damping factor. The device supports stereo bridge-tied load (BTL) or mono parallel bridge-tied load (PBTL) configurations and accepts I2S, left-justified, and right-justified serial audio inputs at sample rates of 32, 44.1, 48, 88.2, and 96 kHz. Both hardware pin control and software I2C control modes are available, with integrated digital clipper, selectable gain options, and adjustable switching frequency (384 kHz or 768 kHz). Offered in a thermally enhanced 48-pin HTSSOP package, the TAS5760M is pin-to-pin compatible with the TAS5760xx family, enabling easy design scalability.

Key Specifications

Audio Input Digital (I2S / LJ / RJ)
Architecture Class-D (Closed-loop)
Output Power (Stereo BTL) Up to 55 W / channel (10% THD+N)
Output Power (Mono PBTL) Up to 114 W (10% THD+N)
THD+N @ 1 kHz 0.03% (at 1 W, 8Ω)
SNR (A-weighted) 105 dB
Idle Channel Noise 100 µVrms (A-weighted)
Power Supply (PVDD) 4.5 V to 26.4 V
Sample Rate Range 32 kHz to 96 kHz
Switching Frequency 384 kHz / 768 kHz (selectable)
Load Impedance 2Ω to 8Ω
MOSFET Rds(on) 120 mΩ
Control Interface Hardware pins + I2C software
Operating Temperature -25°C to +85°C
Package HTSSOP-48 (12.5 x 8.1 mm)

Features

  • 55 W stereo / 114 W mono PBTL Class-D amplifier
  • Closed-loop architecture for improved PSRR and damping factor
  • 0.03% THD+N, 105 dB SNR, 100 µVrms idle noise
  • Single I2S stereo input (32-96 kHz sample rates)
  • Hardware pin control + I2C software control modes
  • Integrated digital output clipper
  • Programmable I2C address (2 options)
  • Adjustable switching frequency: 384 kHz / 768 kHz
  • Selectable speaker gain options
  • 120 mΩ output MOSFET on-resistance
  • Comprehensive protection: clock error, DC, short-circuit, over-temperature, programmable over-current
  • Pin-compatible TAS5760xx family
  • Thermally enhanced HTSSOP-48 package
  • RoHS compliant, lead-free

Applications

  • Flat-panel LCD/LED TVs and display monitors
  • Soundbars and audio docking stations
  • PC speakers and desktop audio
  • Bluetooth and wireless speakers
  • General-purpose audio amplification
  • Home theater systems
  • Gaming consoles and accessories
  • Multimedia projectors

The TAS5760M is a high-performance stereo digital-input Class-D audio amplifier from Texas Instruments, delivering up to 55 W of stereo output power with a wide 4.5 V to 26.4 V power supply range. Featuring a closed-loop amplifier architecture for improved PSRR and higher damping factor, it achieves 0.03% THD+N at 1 kHz and 105 dB SNR. The device supports stereo BTL (bridge-tied load) or mono PBTL (parallel bridge-tied load) configurations, accepting I2S/left-justified/right-justified serial audio input at sample rates from 32 kHz to 96 kHz. Both hardware pin control and software I2C control modes are available, with integrated digital clipper, programmable gain options, and adjustable switching frequency. Packaged in a thermally enhanced 48-pin HTSSOP, the TAS5760M is ideal for flat-panel TVs, soundbars, PC audio, and general-purpose audio systems.

The TAS5760M employs a closed-loop Class-D amplifier architecture that uses feedback from the output stage to the input modulator, significantly improving power supply rejection ratio (PSRR) and damping factor compared to open-loop designs. The digital signal path receives serial audio data via I2S interface and processes it through an integrated digital clipper, volume control, and pulse-width modulation (PWM) stage. The PWM modulator generates complementary gate drive signals for the H-bridge output MOSFETs, which switch at frequencies of 384 kHz or 768 kHz (user selectable). The output stage uses MOSFETs with 120 mΩ on-resistance for high efficiency. Closed-loop operation ensures consistent output power despite supply voltage variations and provides tighter bass response through higher damping factor. The device includes comprehensive protection features including clock error detection, DC offset protection, short-circuit protection, over-temperature protection, and programmable over-current protection for robust operation under fault conditions.

Pin Group Pins Description
Digital Audio Input SDIN, SCLK, LRCLK I2S serial data input, bit clock, word clock (32-96 kHz)
Amplifier Outputs (BTL) OUTA+/OUTA-, OUTB+/OUTB- Channel A/B bridge-tied load speaker outputs
Amplifier Outputs (PBTL) OUTA+/OUTB+, OUTA-/OUTB- Parallel BTL mono configuration (high current)
Power Pins PVDD, AVDD, DVDD Power stage supply (4.5-26.4V), analog supply, digital supply
Ground Pins PGND, AGND Power ground, analog ground
Control Pins (HW mode) SPK_GAIN[1:0], SPK_SD, PBTL/SCL, FREQ/SDA, SPK_SLEEP/ADR, SFT_CLIP Gain select, shutdown, PBTL mode, frequency select, sleep, soft clip
I2C Interface (SW mode) SCL, SDA Serial control bus for register programming
Fault/Status SPK_FAULT Fault reporting output (active low)
Regulator VREG Internal regulator output (connect capacitor)
  • Flat-panel LCD/LED TVs and monitors
  • Soundbars and audio docking stations
  • PC speakers and desktop audio systems
  • Bluetooth and wireless speaker systems
  • General-purpose audio amplification
  • Home theater in a box (HTIB)
  • Gaming consoles and accessories
  • Multimedia projectors
Model Power Channels Key Features
TAS5716 20W Stereo Full EQ/DRC, 16 biquads, bass boost
TAS5760L 10W Stereo Lower power version, same package
TAS5760MD 20W Stereo With DirectPath headphone driver
TAS5754M 2x50W Stereo Higher power, hybrid flow
TAS5805M 2x25W Stereo Modern 4.5-26.5V, ultra-low idle
TPA3116D2 2x50W Stereo Analog input alternative
