Product Overview

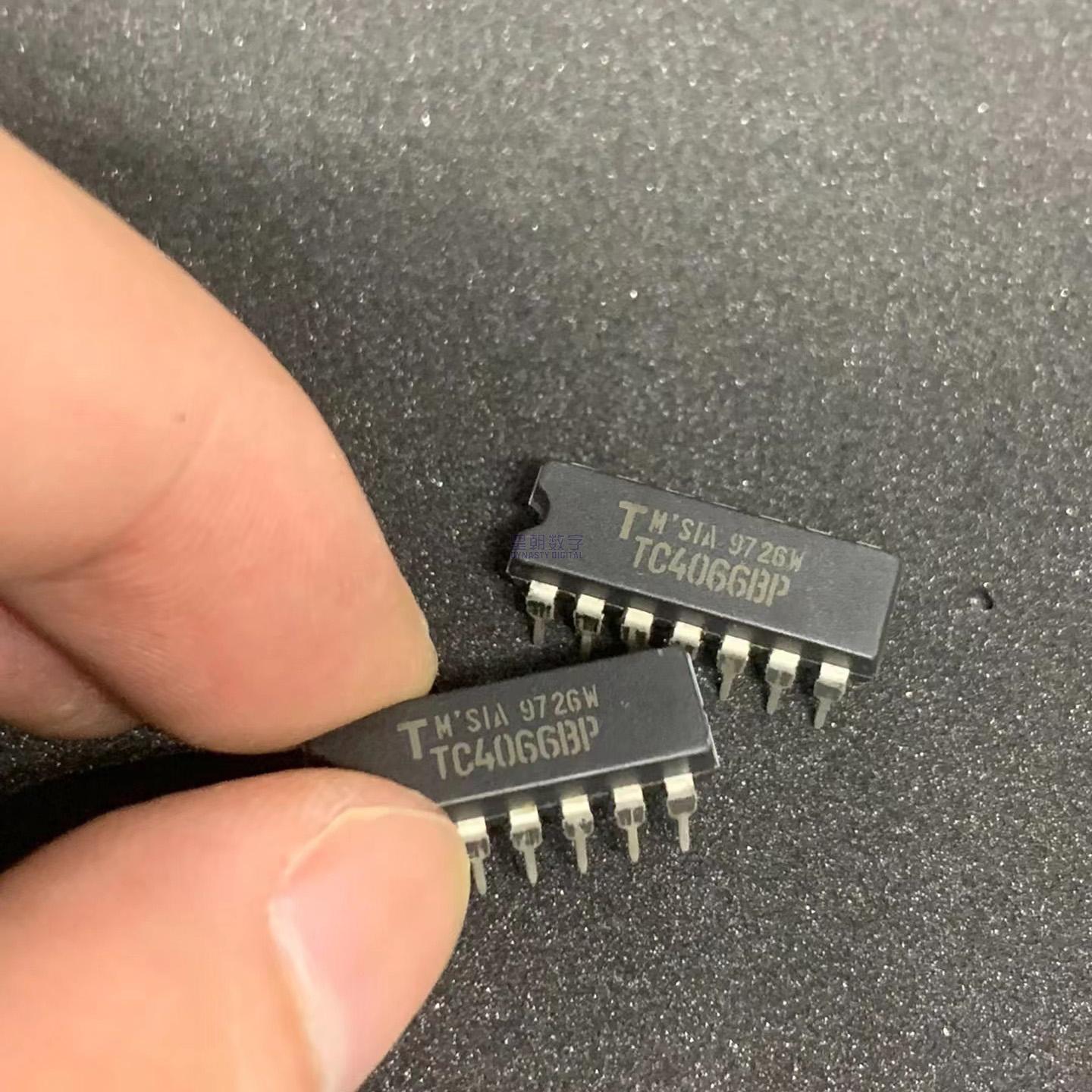

The TC4066BP is a quad bilateral (bidirectional) analog switch from Toshiba’s standard CMOS logic family, providing four independent SPST (Single-Pole Single-Throw) switch circuits in a single 14-pin DIP package. Each switch conducts bidirectionally when its control input is high and blocks when low, with the ability to pass both analog and digital signals. Built on CMOS technology, it features low on-resistance (250 Ω typ. at 5 V, 70 Ω typ. at 15 V), very high off-resistance (>1 GΩ), and low power consumption typical of CMOS devices. The wide operating voltage range of 3 V to 18 V accommodates various system levels, and the standard 4000-series pinout ensures broad compatibility. The through-hole DIP-14 package makes it well-suited for prototyping, breadboarding, and applications where through-hole construction is preferred.
Key Specifications
| Type | Quad Bilateral Analog Switch (SPST) |
| Technology | CMOS (Standard 4000 series) |
| Number of Switches | 4 independent channels |
| Supply Voltage Range | 3 V to 18 V |
| On-Resistance (Ron) | 250 Ω typ. @ VDD=5V |
| On-Resistance (Ron) | 110 Ω typ. @ VDD=10V |
| On-Resistance (Ron) | 70 Ω typ. @ VDD=15V |
| Off-Resistance (Roff) | > 1 GΩ typ. |
| Ron Matching (between switches) | 10 Ω typ. @ VDD=5V |
| Propagation Delay (tpd_tpz) | 5 ns typ. @ VDD=15V |
| Control Input High (VIH) | 3.5 V min. @ VDD=5V |
| Control Input Low (VIL) | 1.5 V max. @ VDD=5V |
| Signal Range | 0 V to VDD |
| Power Dissipation | 300 mW max. (DIP package) |
| Operating Temperature | -40°C to +85°C |
| Package | DIP-14 (through-hole, 2.54mm pitch) |
Features
- 4 independent bilateral (bidirectional) switches
- CMOS transmission gate structure (NMOS + PMOS parallel)
- Low on-resistance: 70-250 Ω (depending on VDD)
Very high off-isolation: > 1 GΩ
- Wide supply voltage range: 3 V to 18 V
- Low power consumption (CMOS)
- Bidirectional signal flow (analog or digital)
- Matched switch characteristics between channels
- Standard 4000-series CMOS equivalent (CD4066B)
- High noise immunity
- -40°C to +85°C industrial temperature range
- Through-hole DIP-14 package
- RoHS compliant, lead-free
- Low cost, general-purpose switch solution
Applications
- Analog signal switching and routing
- Digital signal multiplexing and demultiplexing
- Audio and video signal selector circuits
- Data acquisition and sample-hold systems
- Chopper, modulator, and demodulator circuits
- Analog multiplexer/demultiplexer designs
- Function generators and test equipment
- Industrial control and automation
- Prototyping, breadboarding, and education
- Communication systems signal paths
