TAS5716

20W stereo Class-D digital audio amplifier with EQ, DRC, bass boost, 4-channel, I2S input, HTQFP-64

6520

Effective Inventory
Go to Inquiry

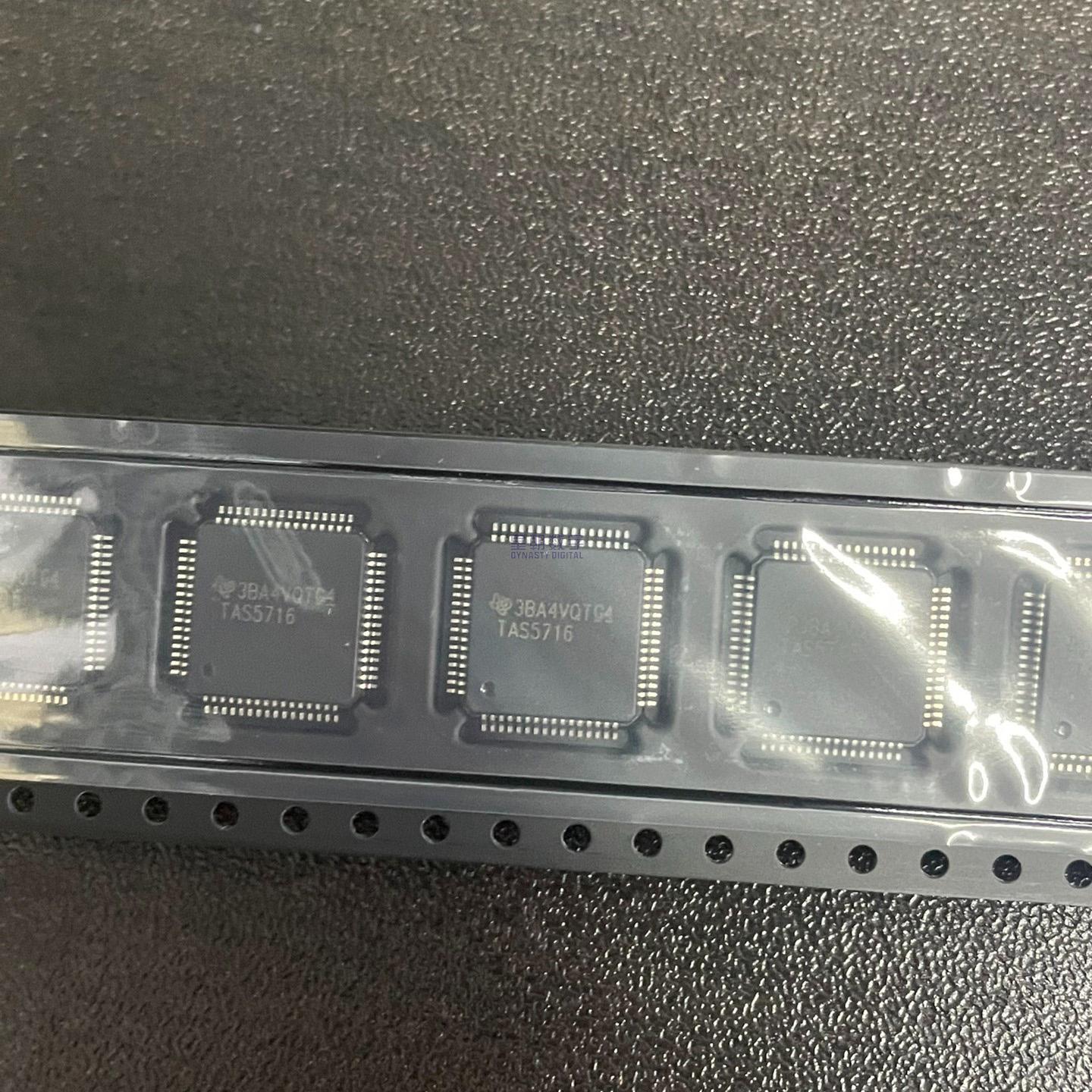

Image for reference only

Manufacturer Part：

TAS5716

Package：

HTQFP-64 (10x10 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TLV5637IDR-1

TLV3491AIDBVR

TJA1042

TJA1040

TH8055JDC

TDA10046HT

TC4066BP

TAS5760M

Description

Product Overview

The TAS5716 is a high-performance 20-W stereo digital-input Class-D audio amplifier from Texas Instruments, featuring integrated speaker equalization, dynamic range control (DRC), bass boost, and 3D sound enhancement. Part of TI’s PurePath digital audio family, it accepts two serial audio input ports supporting up to four channels and offers flexible output configurations including stereo bridged (20 W x 2), four-channel single-ended (10 W x 4), and 2.1-channel (stereo + subwoofer) modes. The closed-loop power stage architecture provides improved power supply rejection and higher damping factor for superior audio quality. With support for 32 kHz to 192 kHz sample rates and 0.05% THD+N performance, the TAS5716 is ideal for flat-panel TVs, soundbars, PC speakers, and home audio systems requiring high efficiency with rich audio processing.

Key Specifications

Audio Input Digital (I2S / LJ / RJ)
Architecture Class-D (Closed-loop)
Output Power (BTL) 20 W x 2 into 8Ω @ 18 V
Output Power (SE) 10 W x 4 into 4Ω
THD+N @ 1 kHz 0.05%
SNR (Dynamic Range) > 90 dB
Power Supply (PVCC) 10 V to 26 V
Analog Supply (AVDD) 3.0 V to 3.6 V
Sample Rate Range 32 kHz to 192 kHz
Efficiency Up to ~90%
Load Impedance 4Ω (min)
Control Interface I2C (software mode) + hardware pins
Operating Temperature 0°C to +85°C
Package HTQFP-64 (10×10 mm)

Features

  • 20 W stereo Class-D amplifier with closed-loop architecture
  • Two serial audio inputs (up to 4 channels)
  • Flexible output configs: 2x BTL, 4x SE, or 2.1-channel
  • 0.05% THD+N, > 90 dB dynamic range
  • Improved PSRR with closed-loop design
  • 16 programmable biquads for speaker EQ
  • Dynamic range control (DRC) with adaptive coefficients
  • Bass boost and loudness compensation
  • 3D sound enhancement
  • Supports 32-192 kHz sample rates
  • Headphone and subwoofer PWM outputs
  • AM interference avoidance support
  • Factory-trimmed internal oscillator (no external crystal)
  • I2C control interface + hardware control mode
  • Thermal and short-circuit protection
  • 64-pin HTQFP surface mount package

Applications

  • Flat-panel TVs and display monitors
  • Soundbars and sound bases
  • PC speakers and desktop audio systems
  • Bluetooth and wireless speaker systems
  • 2.1-channel home audio setups
  • Gaming consoles and accessories
  • Multi-room audio systems
  • Automotive infotainment (qualified variants)
  • Multimedia projectors

The TAS5716 is a 20-W stereo closed-loop digital-input Class-D audio power amplifier from Texas Instruments, designed for high-performance audio applications. It accepts two serial audio input ports (supporting up to four audio channels) and supports multiple output configurations: 2-channel bridged (20 W x 2), 4-channel single-ended (10 W x 4), or 2.1-channel (10 W x 2 + 20 W subwoofer). The device integrates comprehensive audio processing including 16 programmable biquads for speaker equalization, dynamic range control (DRC), bass boost, loudness compensation, and 3D sound enhancement. Operating with a 10 V to 26 V power stage supply and 3 V to 3.6 V analog supply, it delivers 0.05% THD+N at 1 kHz and supports sample rates from 32 kHz to 192 kHz.

The TAS5716 uses a closed-loop Class-D amplifier architecture that significantly improves power supply rejection ratio (PSRR) and damping factor compared to open-loop designs. The digital audio processing path accepts I2S/left-justified/right-justified serial data at rates from 32 kHz to 192 kHz, applying 8x oversampling with a fourth-order noise shaper for flat noise floor across the audio band (20 Hz to 20 kHz). The amplifier switches at 384 kHz for 32/48/96/192 kHz data and 352.8 kHz for 44.1/88.2/176.4 kHz data. The integrated PWM modulator generates the gate drive signals for the H-bridge power MOSFETs, with dead-time insertion to prevent shoot-through. The closed-loop architecture provides higher damping factor for tighter bass response and constant output power despite supply voltage variations. The device includes both hardware and software control interfaces, with an internal factory-trimmed oscillator eliminating the need for an external crystal.

Pin Group Description
Audio Inputs SDIN1, SDIN2 – 2 serial data inputs (I2S/LJ/RJ), SCLK, LRCLK, MCLK
PWM Outputs OUTA/OUTB, OUTC/OUTD (2 BTL outputs) or 4 SE outputs; subwoofer and headphone PWM outs
Power Pins PVCC (10-26V), AVDD (3.0-3.6V), DVDD (3.3V internal LDO), VREG
Ground Pins AGND, PGND – analog and power ground
Control Interface SDA, SCL – I2C control interface for register programming
Reset/Mute RESET, MUTE – system reset and soft mute control
Clock/OSC XTAL_OSC – internal oscillator pin (no external crystal needed)
Protection OTW (over-temperature warning), FAULT – thermal and short-circuit reporting
  • Flat-panel TVs and displays
  • Soundbars and home theater systems
  • PC speakers and desktop audio
  • Bluetooth speaker systems
  • Automotive audio head units
  • Gaming consoles and accessories
  • Multi-room audio systems
  • 2.1-channel speaker systems
Model Power Channels Input Key Features
TAS5707 20W Stereo Digital Similar, no EQ/DRC
TAS5731M 30W Stereo Digital Higher power, EQ+DRC
TAS5754M 2x50W Stereo Digital Higher power, hybrid flow
TAS5805M 2x25W Stereo Digital Modern replacement, lower idle power
TPA3116D2 2x50W Stereo Analog Analog input alternative
