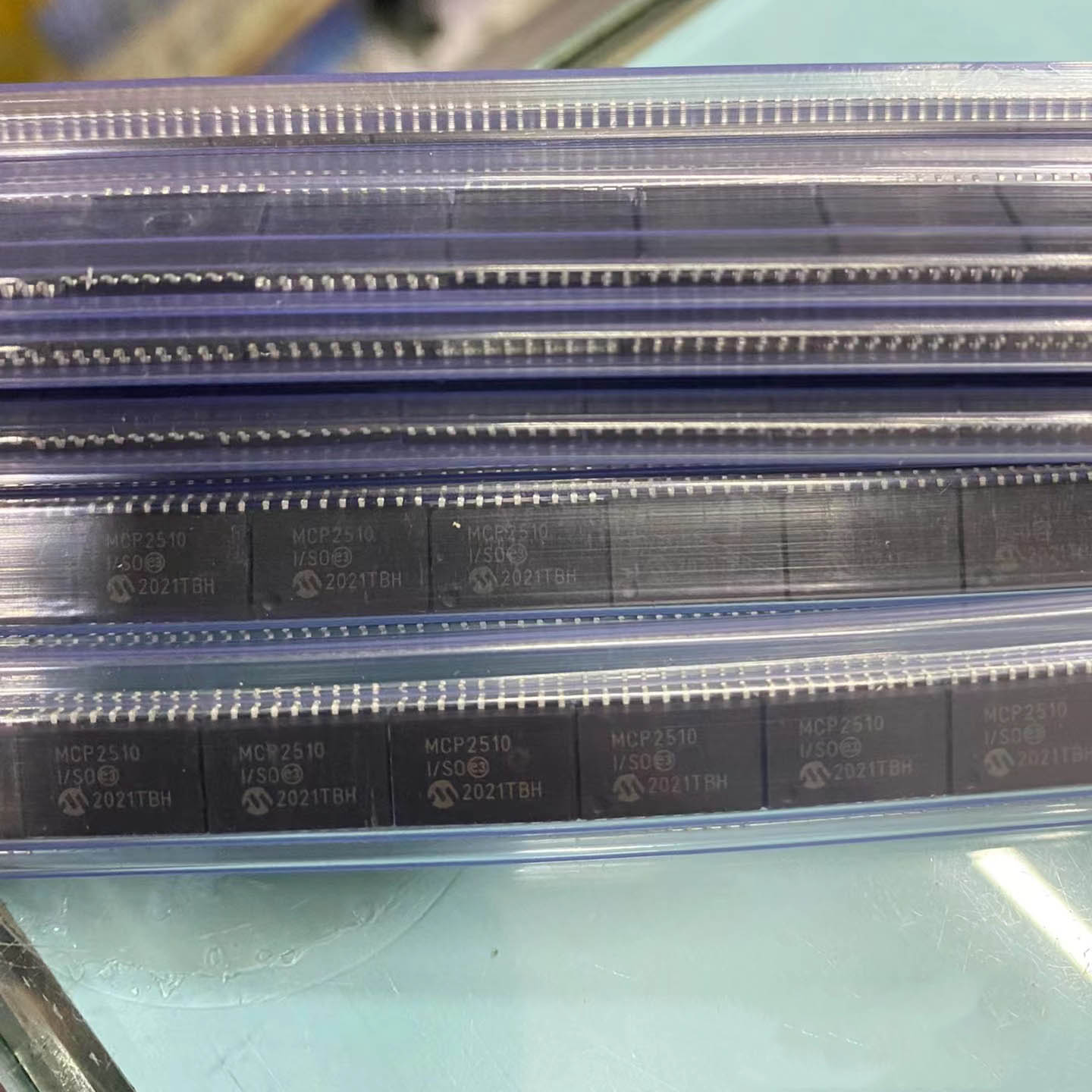

Product Overview
The MCP2510-I is a standalone CAN (Controller Area Network) controller with SPI interface from Microchip Technology. This device implements the CAN 2.0B specification, supporting both standard and extended data frames at data rates up to 1 Mb/s. It features two receive buffers, three transmit buffers, and six acceptance filters with two masks. The MCP2510-I operates from 2.7V to 5.5V and comes in an 18-pin PDIP/SOIC package, making it ideal for adding CAN connectivity to microcontroller systems via SPI.
Key Specifications
| Manufacturer | Microchip Technology |
| Protocol | CAN 2.0B (ISO 11898) |
| Data Rate | Up to 1 Mb/s |
| Interface | SPI (up to 10 MHz) |
| Supply Voltage | 2.7V to 5.5V |
| Operating Temperature | -40°C to +85°C |
| Package | PDIP-18 / SOIC-18 |
| Receive Buffers | 2 (with prioritization) |
| Transmit Buffers | 3 (with prioritization) |
| Acceptance Filters | 6 (with 2 masks) |
| Interrupt Output | Multi-source, selectable |
Features
- Implements CAN 2.0B protocol (standard & extended frames)
- Data rates up to 1 Mb/s
- SPI interface (up to 10 MHz clock)
- Two receive buffers with prioritized message storage
- Three transmit buffers with abort capability
- Six 29-bit acceptance filters and two masks
- One-shot transmission mode
- Programmable clock output for MCU
- Low-power sleep mode with wake-up filter
- Extended temperature range: -40°C to +85°C
- Automotive and industrial control networks
- CAN bus gateways and bridges
- Industrial sensor networks
- Building automation and HVAC
- Medical equipment networking
- Embedded systems requiring CAN connectivity
- Automotive body electronics and powertrain control modules
- Industrial automation networks and fieldbus systems
- CAN bus gateways and protocol converters
- Building automation and HVAC control systems
- Medical device networking and patient monitoring
- Marine and aerospace data bus systems
- Automotive Electronics: All automotive-grade components pass AEC-Q series certification, featuring excellent stability and durability to adapt to complex vehicle operating environments.
- Medical Devices: High-reliability components meet medical industry safety and compliance regulations, ensuring stable operation for medical equipment.
- Industrial Control & Consumer Electronics: Products conform to universal international electronic industry standards, suitable for long-term continuous operation of various equipment.
- Accepted Payment Methods
- T/T (Bank Wire Transfer): The primary settlement method for bulk orders and a widely used international payment channel.
- PayPal: Ideal for small orders, sample orders and quick payments.
Settlement Currency
US Dollar (USD) is the default settlement currency. RMB is available for domestic customers.
Bank Charges
All transfer fees, intermediary bank charges and other remittance-related expenses shall be borne by the buyer.
- Payment Requirements
- Sample and small orders: Shipment will be arranged upon full payment.
- In-stock bulk orders: Goods will be delivered within 2 to 3 working days after full payment.
- Logistics Partners
- International Express: DHL, FedEx, UPS, TNT
- Economy Logistics: Air freight and sea freight for large-volume cargo
- Domestic Delivery: SF Express, Yunda Express
- Order Processing Time
- In-stock items: Orders confirmed and fully paid before 14:00 (GMT+8) will be shipped on the same day. All other orders will be dispatched within 1 to 2 working days.
- Out-of-stock or sourced items: The delivery lead time will be confirmed separately according to brand and inventory status.
- Estimated Transit Time
- International Express: 3 – 7 working days globally
- Air Freight: 7 – 12 working days
- Sea Freight: 25 – 40 working days for heavy and large bulk cargo
- Shipping Fee Rules
- Shipping cost is calculated based on package weight, volume, destination and delivery method.
- Both freight prepaid and freight collect are available. Please provide your courier account number in advance if you choose freight collect.
- Free international express delivery is offered for large orders. Terms for long-term partners can be negotiated separately.
- Shipment Tracking
Within 24 hours after dispatch, we will send the tracking number, commercial invoice, packing list and other documents to your email or communication account. You may check the shipment status online in real time.
MOQ & Sample Service
We support flexible minimum order quantities for samples, small-batch and large-batch orders. All sample orders shall comply with the above shipping and payment policies.
Packaging Standard
All electronic components are packed with professional anti-static and shockproof materials. Original factory packaging is available for branded chips and integrated circuits.
Import Duties & Taxes
All import duties, customs clearance fees and local taxes incurred for international shipments shall be borne by the buyer. We will provide complete customs documents to assist you with clearance procedures.
- Handling of Lost or Damaged Goods
- In case of loss or severe damage during transit, please contact us within 48 hours after receiving the tracking information. We will assist you in filing a claim with the logistics provider.
- We shall not be liable for any losses caused by incorrect delivery address, wrong contact information or the buyer’s refusal to complete customs clearance.
- Address: Room 2919, Guoli Building, Huaqiang North, Futian District, Shenzhen, Guangdong Province, China
- Business Hours: 09:00 – 18:00, Monday to Friday. Closed on weekends and official public holidays.
- Notice: Please make an appointment via email or communication tools one day in advance, and present your order information upon pickup.
- All components are packed separately to avoid damage caused by friction and collision;
- Shockproof buffer materials are added for fragile products to ensure transportation safety;
- Each package is clearly marked with part number, quantity, batch number and specifications for easy inventory counting and management.
- Anti-static Packaging: Static-sensitive components such as chips, circuit boards and sensors are packaged with anti-static bags, shielding boxes and conductive foam in strict accordance with international anti-static standards to prevent static damage.
- Vacuum Moisture-proof Packaging: Moisture-sensitive components are vacuum-sealed with desiccants to isolate humid air, suitable for ocean transportation and long-term storage.
- Original Factory Packaging: Integrated circuits of brands such as NXP are delivered with original reels, trays or tubes by default, retaining complete original packaging and adapting to automated SMT production lines.
- Discrete Device Packaging: Discrete devices such as SMD resistors, power resistors and LEDs are quantitatively and classifiedly packaged with accurate quantity and clear marking.
- Connector / Aviation Connector Packaging: Hard outer packaging is adopted to prevent pin bending and structural deformation.
Applications
The MCP2510-I is a fully integrated CAN (Controller Area Network) controller from Microchip Technology that implements the CAN 2.0B specification. Designed to interface with microcontrollers via a Serial Peripheral Interface (SPI), it provides a simple way to add CAN connectivity to virtually any microcontroller-based system. The MCP2510 supports both standard (11-bit identifier) and extended (29-bit identifier) data frames and remote frames at baud rates up to 1 Mb/s. It features two receive buffers with prioritized message storage, three transmit buffers with configurable transmission priority and abort capability, and six acceptance filters with two acceptance masks to reduce CPU overhead. The device provides an interrupt output pin that can be configured to trigger on multiple events including receive buffer full, transmit buffer empty, error conditions, and bus-off state. A programmable clock output is available to drive the host microcontroller or other system components. The MCP2510 operates from a 2.7V to 5.5V supply, supporting both 3.3V and 5V system designs, and features a low-power sleep mode with wake-on-bus-activity for power-sensitive applications. The ‘I’ suffix indicates the industrial temperature range of -40°C to +85°C.
The MCP2510-I operates as an independent CAN protocol controller that handles all layers of the CAN 2.0B protocol including bit timing, CRC generation/checking, error handling, and message filtering. The host microcontroller communicates with the MCP2510 through the SPI interface, reading and writing to internal registers that configure the device and transfer message data. On the transmit side, the CPU loads a message into one of three transmit buffers, sets the priority, and initiates transmission by setting the TXREQ bit. The MCP2510 then handles the complete CAN frame transmission including arbitration, bit stuffing, CRC generation, and acknowledgment checking. On the receive side, incoming CAN messages are processed by the protocol engine, which checks the message identifier against the acceptance filters. If a match is found, the complete message (identifier, data length code, data bytes, and CRC) is stored in one of the two receive buffers and an interrupt is generated. The two receive buffers allow reception of back-to-back messages without CPU intervention. The six acceptance filters can be individually configured to match specific message identifiers, and the two masks define which bits of the identifier are compared against the filter values. This hardware filtering significantly reduces the host CPU load by only passing relevant messages. The bit timing is fully programmable through the CNF1, CNF2, and CNF3 configuration registers, supporting standard CAN baud rates from 10 kb/s up to 1 Mb/s with proper oscillator selection.
| Pin | Name | Type | Function |
|---|---|---|---|
| 1 | TXCAN | Output | CAN transmit output (to CAN transceiver) |
| 2 | RXCAN | Input | CAN receive input (from CAN transceiver) |
| 3 | CLKOUT | Output | Programmable clock output |
| 4 | TX0RTS | Input | Transmit buffer 0 request-to-send input |
| 5 | TX1RTS | Input | Transmit buffer 1 request-to-send input |
| 6 | TX2RTS | Input | Transmit buffer 2 request-to-send input |
| 7 | OSC2 | Output | Crystal oscillator output |
| 8 | OSC1 | Input | Crystal oscillator input |
| 9 | VSS | Ground | Ground |
| 10 | RX0BF | Output | Receive buffer 0 full interrupt output |
| 11 | RX1BF | Output | Receive buffer 1 full interrupt output |
| 12 | INT | Output | Main interrupt output (active-low) |
| 13 | SCK | Input | SPI serial clock input |
| 14 | SI | Input | SPI serial data input |
| 15 | SO | Output | SPI serial data output |
| 16 | CS | Input | SPI chip select input (active-low) |
| 17 | RESET | Input | Master reset input (active-low) |
| 18 | VDD | Power | Positive supply voltage (2.7V to 5.5V) |
| Manufacturer | Part Number | Package | Notes |
|---|---|---|---|
| Microchip | MCP2515-I/SO | SOIC-18 | CAN 2.0B controller with faster SPI |
| Microchip | MCP25625 | SOIC-14 | CAN controller + transceiver in one package |
| Texas Instruments | MCP2551 | SOIC-8 | CAN transceiver (external required) |
| NXP | SJA1000T | DIP-28 | Standalone CAN controller alternative |
| STMicroelectronics | L9617 | SOIC-8 | CAN transceiver |
