MCP6S26-I

6-channel PGA, SPI interface, gains 1-32V/V, 10MHz BW, rail-to-rail, 2.5-5.5V, SOIC-14

6800

Effective Inventory
Go to Inquiry

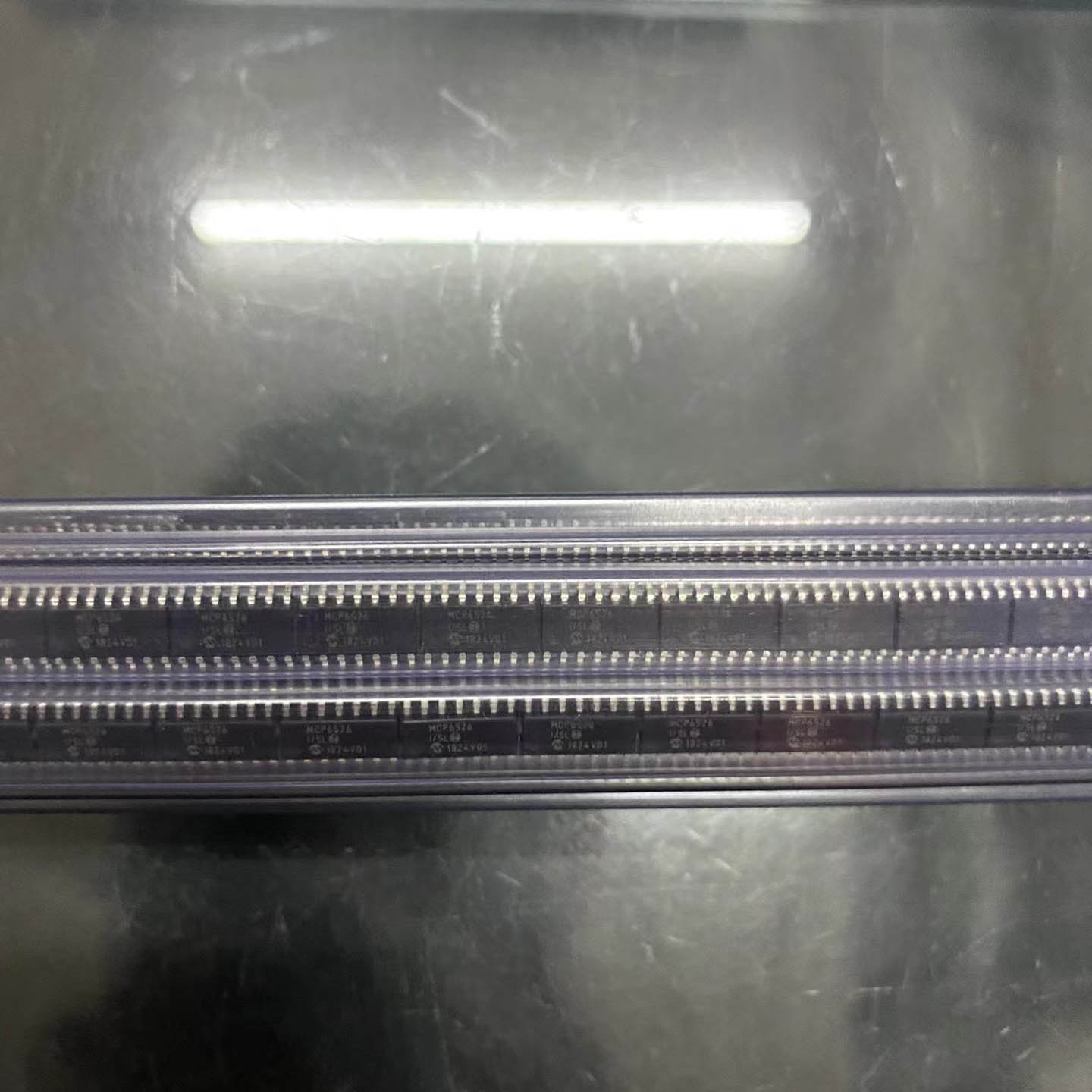

Image for reference only

Manufacturer Part：

MCP6S26-I

Package：

SOIC-14 (150 mils body width)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP4728-E

Description

Product Overview

The MCP6S26-I is a six-channel programmable gain amplifier (PGA) from Microchip Technology with SPI serial interface. This device provides selectable gains of +1, +2, +4, +5, +8, +10, +16, and +32 V/V through an SPI-compatible serial interface. Featuring 10 MHz bandwidth, low offset voltage, and rail-to-rail I/O, the MCP6S26-I is ideal for applications requiring multiple gain settings such as data acquisition systems, sensor interfaces, and industrial instrumentation.

Key Specifications

Manufacturer Microchip Technology
Type Programmable Gain Amplifier (PGA)
Number of Channels 6 single-ended inputs / 1 output
Gain Settings +1, +2, +4, +5, +8, +10, +16, +32 V/V
Gain Accuracy ±0.5% (typical, Gain=+1)
Bandwidth 10 MHz (Gain=+1)
Slew Rate 10 V/µs
Offset Voltage ±500 µV (max)
Supply Voltage 2.5V to 5.5V
Operating Temperature -40°C to +85°C
Interface SPI (up to 20 MHz)
Package PDIP-14 / SOIC-14
I/O Range Rail-to-rail (input and output)

Features

  • Six-channel single-ended input multiplexer
  • Programmable gains: +1, +2, +4, +5, +8, +10, +16, +32 V/V
  • SPI-compatible serial interface (20 MHz max)
  • 10 MHz bandwidth (Gain = +1)
  • Rail-to-rail input and output operation
  • Low offset voltage: ±500 µV max
  • Low gain drift: ±10 ppm/°C
  • Low supply current: 2.5 mA typical
  • Single supply: 2.5V to 5.5V
  • Daisy-chain capability for multiple PGAs
  • Industrial temperature range: -40°C to +85°C

Applications

  • Data acquisition systems and ADC frontends
  • Sensor signal conditioning
  • Industrial instrumentation and test equipment
  • Medical equipment and patient monitoring
  • Audio and signal processing
  • Automotive sensor interfaces

The MCP6S26-I is a six-channel programmable gain amplifier (PGA) from Microchip Technology that combines a 6-channel input multiplexer with a digitally controlled gain amplifier, all controlled via a simple SPI serial interface. This integrated approach eliminates the need for discrete amplifier and multiplexer combinations, simplifying design and reducing board space. The MCP6S26 supports eight programmable gain settings: +1, +2, +4, +5, +8, +10, +16, and +32 V/V, providing flexibility for a wide range of signal conditioning requirements. The input multiplexer selects one of six single-ended input channels, which is then amplified by the PGA to the selected gain level. With a bandwidth of 10 MHz at unity gain and a slew rate of 10 V/µs, the device can handle fast-changing signals while maintaining accuracy. The rail-to-rail input and output architecture allows full utilization of the supply voltage range, maximizing dynamic range in single-supply applications. The SPI interface supports clock speeds up to 20 MHz and features daisy-chain capability, enabling multiple MCP6S26 devices to be controlled through a single serial interface. A shutdown mode is available for power-sensitive applications, reducing supply current to microamp levels. The ‘I’ suffix indicates the industrial temperature range of -40°C to +85°C, ensuring reliable operation in demanding environments.

The MCP6S26-I consists of two main functional blocks: a 6-channel input multiplexer and a programmable gain amplifier, both controlled through the SPI interface. The input multiplexer is a CMOS analog switch array that connects one of the six input channels (CH0 through CH5) to the amplifier input. Channel selection is done by writing to the channel register via SPI. The PGA core is a non-inverting operational amplifier with a digitally controlled feedback network that determines the gain. The gain is set by switching different resistor values in the feedback path, creating precise gain ratios of 1, 2, 4, 5, 8, 10, 16, and 32 V/V. The resistor network is laser-trimmed during manufacturing to achieve tight gain accuracy and low drift. The rail-to-rail input stage uses a complementary PMOS/NMOS input pair to accept signals from the negative supply rail to the positive supply rail. The output stage is also rail-to-rail, capable of driving the output to within millivolts of both supply rails. The SPI interface receives commands for channel selection, gain setting, and device configuration. The daisy-chain mode allows the serial output of one device to feed the serial input of another, enabling control of multiple PGAs with a single chip select line. A shutdown command places the device in a low-power state, with the output going to a high-impedance state. When the device is brought out of shutdown, the output settles rapidly to the correct voltage level.

Pin Name Type Function
1 VDD Power Positive supply voltage (2.5V to 5.5V)
2 CH0 Input Channel 0 analog input
3 CH1 Input Channel 1 analog input
4 CH2 Input Channel 2 analog input
5 CH3 Input Channel 3 analog input
6 CH4 Input Channel 4 analog input
7 CH5 Input Channel 5 analog input
8 VSS Ground Ground
9 CS Input SPI chip select (active-low)
10 SCK Input SPI serial clock input
11 SI Input SPI serial data input
12 SO Output SPI serial data output (daisy-chain)
13 SHDN Input Shutdown input (active-low)
14 VOUT Output Amplified analog output
  • Multi-channel data acquisition and ADC frontend signal conditioning
  • Sensor interface modules with variable gain requirements
  • Industrial instrumentation and test measurement equipment
  • Medical diagnostic devices and patient monitoring systems
  • Audio signal processing and automatic gain control
  • Automotive sensor signal conditioning
Manufacturer Part Number Package Notes
Microchip MCP6S21-I/SN SOIC-8 Single-channel PGA with SPI
Microchip MCP6S22-I/SN SOIC-10 Dual-channel PGA with SPI
Texas Instruments PGA280 TSSOP-20 High-voltage PGA alternative
Analog Devices AD8251 MSOP-10 10MHz JFET-input PGA
MaxLinear x9cxxx series SOIC-8 Digital potentiometer + op-amp solution
