SC33911BAC

LIN System Basis Chip with DC motor pre-driver, 5V 50mA LDO, 1x60mA HS + 2x160mA LS drivers, SPI, 32-LQFP, AEC-Q100

11201

Effective Inventory
Go to Inquiry

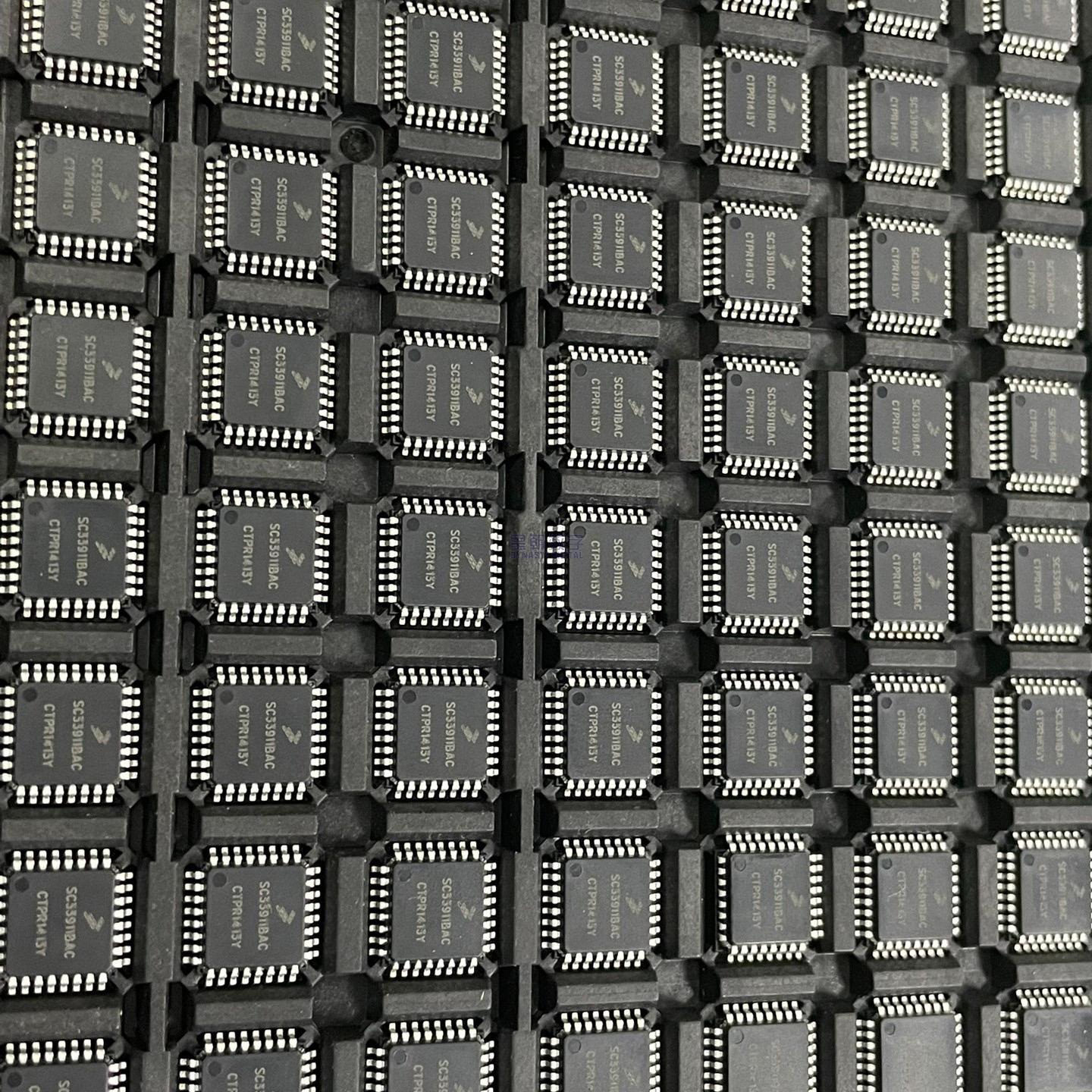

Image for reference only

Manufacturer Part：

SC33911BAC

Package：

LQFP-32 (7x7mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

SST25VF020B-80-4I-SAE

IKW50N60T

FS100R12KT4G

KSZ8081RNBIA TR

SM8S33ATHE3/I

SM8S17AHE3_A/I

NSVBAT54HT1G

BAV70W,115

Description

Product Overview

The SC33911BAC (MC33911BAC) is a LIN System Basis Chip (SBC) with DC motor pre-driver from NXP Semiconductors (formerly Freescale Semiconductor). This highly integrated device combines a LIN transceiver, a 5.0V low-dropout voltage regulator, configurable window watchdog, high-side and low-side drivers, and SPI-controlled diagnostics in a single package. It is specifically designed for automotive body electronics applications such as window lift, mirror control, door lock, and sunroof systems.

Key Specifications

Manufacturer NXP Semiconductors (Freescale)
Product Category LIN System Basis Chip (SBC)
Transceiver Type LIN 2.0/2.1 / SAE J2602-2 compliant
Voltage Regulator 5.0V, 50mA LDO
High-side Switch 1 channel, 60mA
Low-side Switches 2 channels, 160mA each
SPI Interface Full-duplex, up to 4MHz
Watchdog Configurable window watchdog
LIN Data Rate Up to 100 kbps with wave shaping
Operating Voltage Range 5.0V to 28V (typical)
Operating Temperature -40°C to +125°C
Package 32-LQFP (7x7mm)
Qualification AEC-Q100 automotive qualified

Features

  • LIN protocol 2.0 and 2.1 compliant transceiver
  • 5.0V low dropout regulator with fault detection and LVR
  • One 60mA high-side switch with PWM capability
  • Two 160mA low-side switches with PWM capability
  • Two high-voltage analog/logic inputs with wake-up
  • Full-duplex SPI interface up to 4MHz
  • Configurable window watchdog timer
  • Three operating modes: Normal, Sleep, Stop
  • Full SPI-readable diagnostics
  • Wake-up via LIN bus, digital inputs, cyclic sense
  • IEC61000-4-2 ESD performance on LIN pin
  • EMC immunity against RF disturbance
  • AEC-Q100 automotive qualified
  • NXP Product Longevity Program (15-year)

Applications

  • Automotive window lift systems
  • Side mirror control modules
  • Door lock actuators
  • Sunroof control units
  • Automotive lighting control
  • Body electronics modules
  • Seat adjustment systems
  • LIN slave nodes in automotive networks

The SC33911BAC (MC33911BAC) is NXP’s second-generation LIN System Basis Chip designed for automotive body electronics applications. This highly integrated device reduces component count and PCB space by combining multiple functions into a single package: a LIN 2.0/2.1 compliant transceiver, a 5.0V/50mA low-dropout voltage regulator, one 60mA high-side switch, two 160mA low-side switches (all PWM capable), two high-voltage wake-up inputs, a configurable window watchdog, and comprehensive SPI-controlled diagnostics. The 33911 features three operating modes: Normal mode (all functions active), Sleep mode (VDD off, wake-up via LIN, inputs, or cyclic sense), and Stop mode (VDD on with limited current). The LIN transceiver supports baud rates up to 100 kbps with wave-shaping circuitry for improved EMC performance. Automotive qualified to AEC-Q100 standards and backed by NXP’s 15-year Product Longevity Program, the MC33911BAC is ideal for window lift, mirror control, door lock, sunroof, and lighting control applications in modern vehicles.

The MC33911BAC integrates several functional blocks that work together to provide a complete LIN slave node solution. The LIN transceiver block handles the physical layer communication between the MCU and the LIN bus, converting between the single-wire LIN bus signals and the digital TXD/RXD signals of the microcontroller. The internal 5.0V LDO regulator provides a stable supply voltage (VDD) for the MCU and other low-voltage circuitry, with built-in undervoltage detection and reset generation. The high-side and low-side drivers are controlled via SPI and can be pulse-width modulated for motor speed control or dimming applications. The window watchdog monitors MCU activity and resets the system if the MCU fails to toggle the watchdog input within the programmed time window, ensuring fail-safe operation. The two high-voltage inputs (L1, L2) can sense external switch contacts, serve as analog inputs through the internal multiplexer (ADOUT0), or act as wake-up sources from low-power modes. The SPI interface provides full configuration control and diagnostic readback of all device functions, including fault detection and status monitoring.

Pin Name Description
1 RXD LIN Receiver Output (to MCU)
2 TXD LIN Transmitter Input (from MCU)
3 MISO SPI Data Output
4 MOSI SPI Data Input
5 SCLK SPI Clock Input
6 CS SPI Chip Select (active low)
7 ADOUT0 Analog Multiplexer Output
8 PWMIN PWM Input for HS/LS drivers
9 RST Internal Reset I/O (active low)
10 IRQ Interrupt Output (active low)
12 WDCONF Watchdog Configuration Pin
13 LIN LIN Bus Pin
14 LGND LIN Ground
17 LS2 Low-side Output 2
18 PGND Power Ground
22 L2 Wake-up / Analog Input 2
23 L1 Wake-up / Analog Input 1
25 HS1 High-side Switch Output 1
31 VDD 5.0V Regulator Output
32 AGND Analog Ground
  • Automotive power window lift control modules
  • Side mirror adjustment and folding systems
  • Central door locking actuators
  • Power sunroof and moonroof controllers
  • Automotive interior and exterior lighting control
  • Seat position adjustment systems
  • LIN network slave nodes in body electronics
  • HVAC flap and vent control actuators
Model Manufacturer Description
MC33911G5AC NXP Enhanced version, improved ESD/EMC performance
MC33912BAC NXP Dual DC motor driver SBC
MC33931 NXP LIN SBC with multiple high/low side drivers
TJA1028 NXP LIN transceiver with integrated LDO
NCV7430 onsemi LIN RGB LED driver SBC
