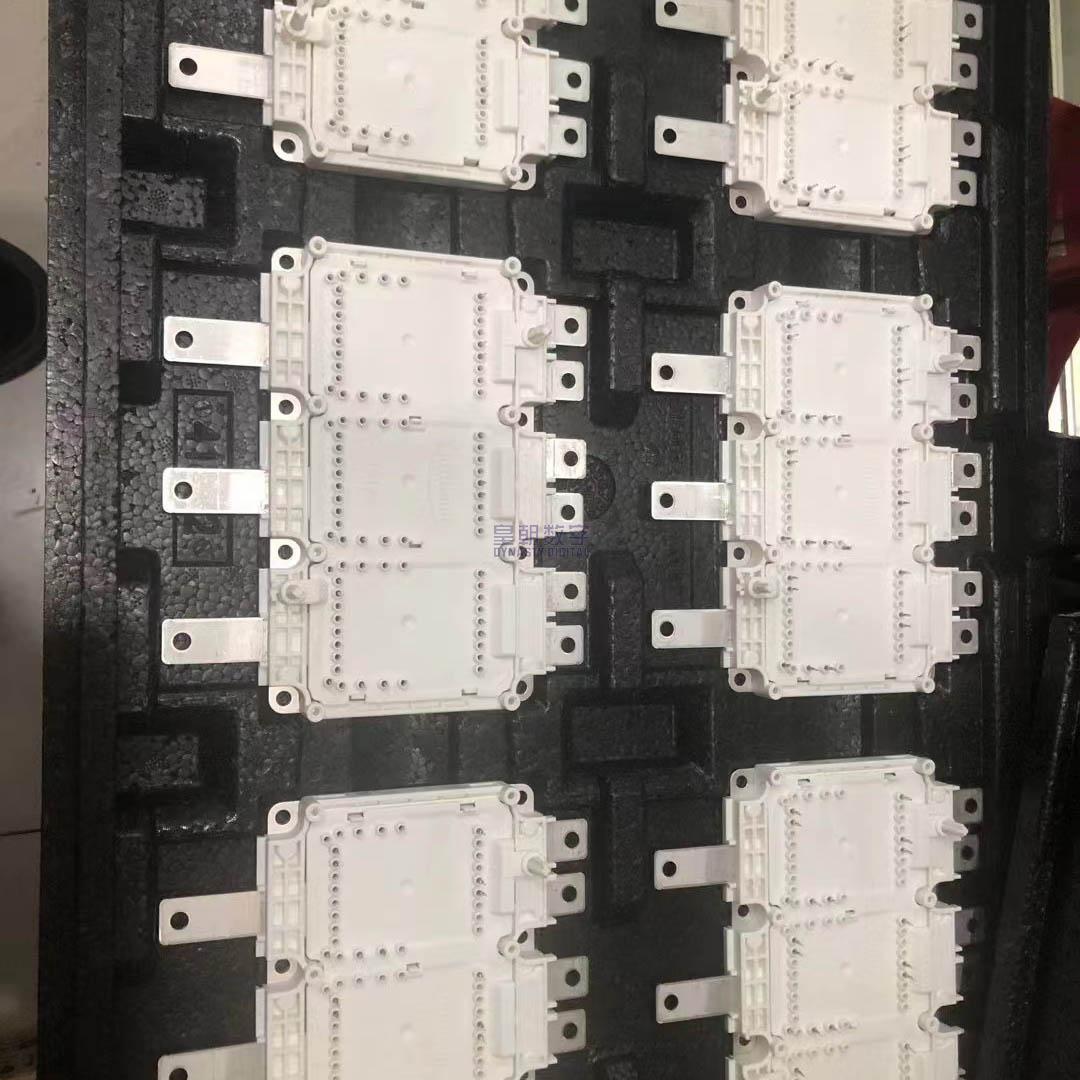

FS100R12KT4G

IGBT Module, 1200V, 100A, Six-Pack, EconoPACK 3, Infineon

11250

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

FS100R12KT4G

Package：

EconoPACK 3 (122x62x30mm, 62mm baseplate)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The FS100R12KT4G is a Infineon product designed for electronic applications. It features compact design with reliable performance characteristics suitable for various industrial and consumer applications.

Key Specifications

Package: EconoPACK 3

Features

High reliability, wide operating range, compact EconoPACK 3 package

Applications

Industrial control, Consumer electronics, Communication equipment, Automotive electronics

The FS100R12KT4G is a six-pack IGBT module from Infineon featuring 1200V collector-emitter voltage and 100A collector current rating in an EconoPACK 3 housing. Part of the TRENCHSTOP IGBT4 series, it combines trench gate field-stop IGBT technology with low VCEsat and soft recovery diodes for optimal switching performance. The six-pack configuration includes three half-bridge stages, making it ideal for three-phase inverter applications. With integrated NTC thermistor for temperature monitoring and high isolation voltage, this module provides a reliable and compact solution for motor drives, UPS, and renewable energy systems.

The FS100R12KT4G contains six IGBTs with anti-parallel freewheeling diodes, configured as three independent half-bridges. Each IGBT employs trench gate technology with a field-stop structure, enabling low saturation voltage (VCEsat ~1.8V) and low switching losses. When the gate-emitter voltage exceeds the threshold (~5.5V), an inversion channel forms allowing current flow between collector and emitter. The field-stop layer at the bottom of the drift region reduces tail current during turn-off, minimizing switching losses. The integrated fast recovery diodes provide freewheeling paths for inductive load currents. The module includes an NTC thermistor embedded in the baseplate for real-time temperature monitoring and thermal protection.

Terminal Name Function
P1-P3 Collector (Plus) Positive DC bus connections for each half-bridge
U, V, W AC Output Three-phase AC output terminals (midpoints)
N1-N3 Emitter (Negative) Negative DC bus / emitter return connections
G1-G6 Gate Gate drive signals for six IGBTs
E1-E6 Auxiliary Emitter Auxiliary emitter for gate drive return (Kelvin connection)
NTC Thermistor Integrated NTC temperature sensor (10kΩ @25°C)
  • Three-phase motor drives and VFDs
  • UPS systems and power conditioning
  • Solar inverter and renewable energy
  • Industrial welding equipment
  • Induction heating systems
  • Active power factor correction
Manufacturer Part Number Package Notes
Infineon FS75R12KT4G EconoPACK 3 Same package, 75A rating
Infineon FS150R12KT4G EconoPACK 3 Same package, 150A rating
Mitsubishi PM100RLA120 Equivalent 100A 1200V six-pack alternative
Fuji Electric 6MBI100U4B-120 U-Series Fuji 100A 1200V IGBT module
Semikron SKM100GB12T4 SEMITRANS 100A 1200V dual/three-phase module
