SUD50P06

P-Channel MOSFET, 60V Vds, 50A Id, 15mΩ Rds(on)@10V, TO-252AA (DPAK), Vishay TrenchFET

13978

Effective Inventory
Go to Inquiry

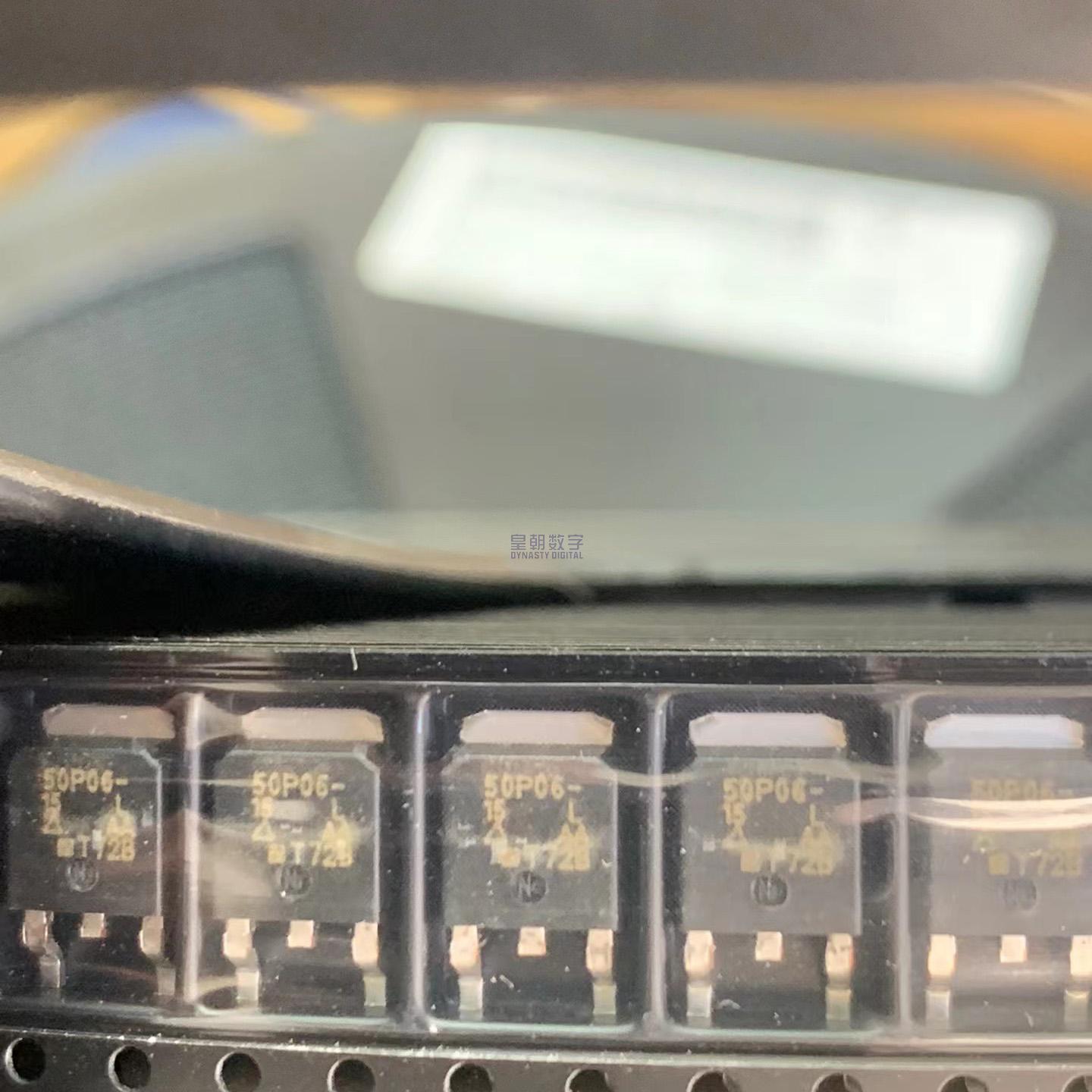

Image for reference only

Manufacturer Part：

SUD50P06

Package：

TO-252AA (DPAK)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TIP35C

SST25VF020B-80-4I-SAE

SN74LVC1G74DCU

SGM4890YMS

SC33911BAC

S-81337HG-KE-T1

OSG95R350HF

MT5016A

Description

Product Overview

The SUD50P06 is a P-channel TrenchFET power MOSFET from Vishay Siliconix, rated for 60 V drain-source voltage and 50 A continuous drain current in a compact TO-252AA (DPAK) surface-mount package. Featuring low on-resistance of 15 mΩ at VGS = -10 V and 20 mΩ at VGS = -4.5 V gate drive, this device is optimized for high-efficiency power management applications. The trench technology provides an excellent balance of low conduction loss and low gate charge for efficient switching performance. With a 175°C junction temperature rating, 125 mJ avalanche energy, and robust thermal performance, the SUD50P06 is suitable for a wide range of applications including load switching, DC-DC converters, motor control, and battery management systems.

Key Specifications

FET Type P-Channel MOSFET
Technology TrenchFET® (Trench)
Drain-Source Voltage (Vdss) -60 V
Continuous Drain Current (Id) -50 A @ 25°C
On-Resistance (Rds(on)) 15 mΩ @ Vgs = -10 V, Id = -17 A
On-Resistance (Rds(on)) 20 mΩ @ Vgs = -4.5 V, Id = -14 A
Gate Threshold Voltage (Vgs(th)) -3 V (max) @ 250 µA
Gate Charge (Qg) 165 nC @ Vgs = -10 V
Gate-Source Voltage (Vgs) ±20 V
Input Capacitance (Ciss) 4950 pF @ Vds = 25 V
Power Dissipation 113 W @ 25°C (Tc)
Operating Temperature -55°C to +175°C (TJ)
Avalanche Energy (EAS) 125 mJ
Package TO-252AA (DPAK)

Features

  • P-channel 60 V TrenchFET power MOSFET
  • Low Rds(on): 15 mΩ @ 10 V, 20 mΩ @ 4.5 V
  • High current capability: 50 A continuous drain
  • Low total gate charge: 165 nC for fast switching
  • Fast switching: 23 ns td(on), 70 ns tr, 175 ns td(off), 260 ns tf
  • 175°C junction temperature rating
  • 125 mJ single pulse avalanche energy
  • Integrated body diode with fast recovery (70 ns trr)
  • TO-252AA surface mount package
  • RoHS compliant, halogen-free
  • MSL Level 1 (unlimited floor life)

Applications

  • Load switching in server and telecom power
  • DC-DC synchronous rectification
  • Battery management and charging systems
  • Motor control and solenoid drives
  • Automotive 12V systems (AEC-Q101 variants available)
  • Industrial power supplies
  • Reverse polarity protection
  • LED lighting drivers
  • Portable device power management

The SUD50P06 is a P-channel TrenchFET power MOSFET from Vishay Siliconix, designed for high-efficiency power management applications. Rated for 60 V drain-source voltage and 50 A continuous drain current, it features a low on-resistance of 15 mΩ at VGS = -10 V and 20 mΩ at VGS = -4.5 V, making it suitable for both 10 V and 4.5 V gate drive applications. Packaged in the surface-mount TO-252AA (DPAK) format, the SUD50P06 is ideal for load switching, DC-DC conversion, and motor control applications where space is at a premium. Its 175°C junction temperature rating and robust avalanche capability ensure reliable operation in demanding environments.

The SUD50P06 uses P-channel trench MOSFET technology where the channel is formed vertically between the source and drain regions. When a negative gate-source voltage (VGS) is applied that exceeds the threshold voltage (typically -3 V), an inversion layer forms in the p-type channel region, allowing current to flow from source to drain. The trench gate structure creates a narrower cell pitch compared to planar MOSFETs, resulting in lower on-resistance per die area and reduced gate charge for faster switching. The device features an integrated body diode that can serve as a freewheeling diode in synchronous rectification and motor drive applications. With a gate charge of 165 nC and fast switching times (23 ns turn-on delay, 175 ns turn-off delay), the SUD50P06 balances conduction and switching losses for optimal efficiency across a wide load range.

Pin Number Pin Name Description
1 Gate (G) Gate terminal. Apply negative voltage relative to source to turn on.
2 Drain (D) Drain terminal. Connects to the higher voltage side in P-channel applications.
3 Source (S) Source terminal. Connects to the lower voltage side; also connected to the tab.
Tab Source (S) Exposed pad, internally connected to Source for improved thermal dissipation.

Package: TO-252AA (DPAK) – 3-lead surface mount package with exposed drain/source tab for enhanced thermal performance. Standard footprint for automated PCB assembly.

  • Load switching in server and telecom power systems
  • Synchronous rectification in DC-DC converters
  • Battery management and charging circuits
  • Motor control and solenoid drivers
  • Automotive electronics (12V systems)
  • Industrial power supplies
  • Reverse polarity protection
  • LED lighting drivers
Model Vds Id Rds(on) Package Description
SUD50P06-15L 60V 50A 15mΩ TO-252 175°C rating variant
Si7137DP 60V 50A 13mΩ PowerPAK SO-8 Vishay similar spec, smaller package
IRF4905 55V 74A 20mΩ TO-220 Infineon through-hole alternative
TJ50S06M3L 60V 50A 12mΩ TO-252 Toshiba equivalent
SUD50N06 60V 50A 15mΩ TO-252 N-channel complement
Recommend Parts
