OSG95R350HF

950V SiC MOSFET, 40A, 350mΩ Rds(on), TO-247-3 package, fast switching

3200

Effective Inventory
Go to Inquiry

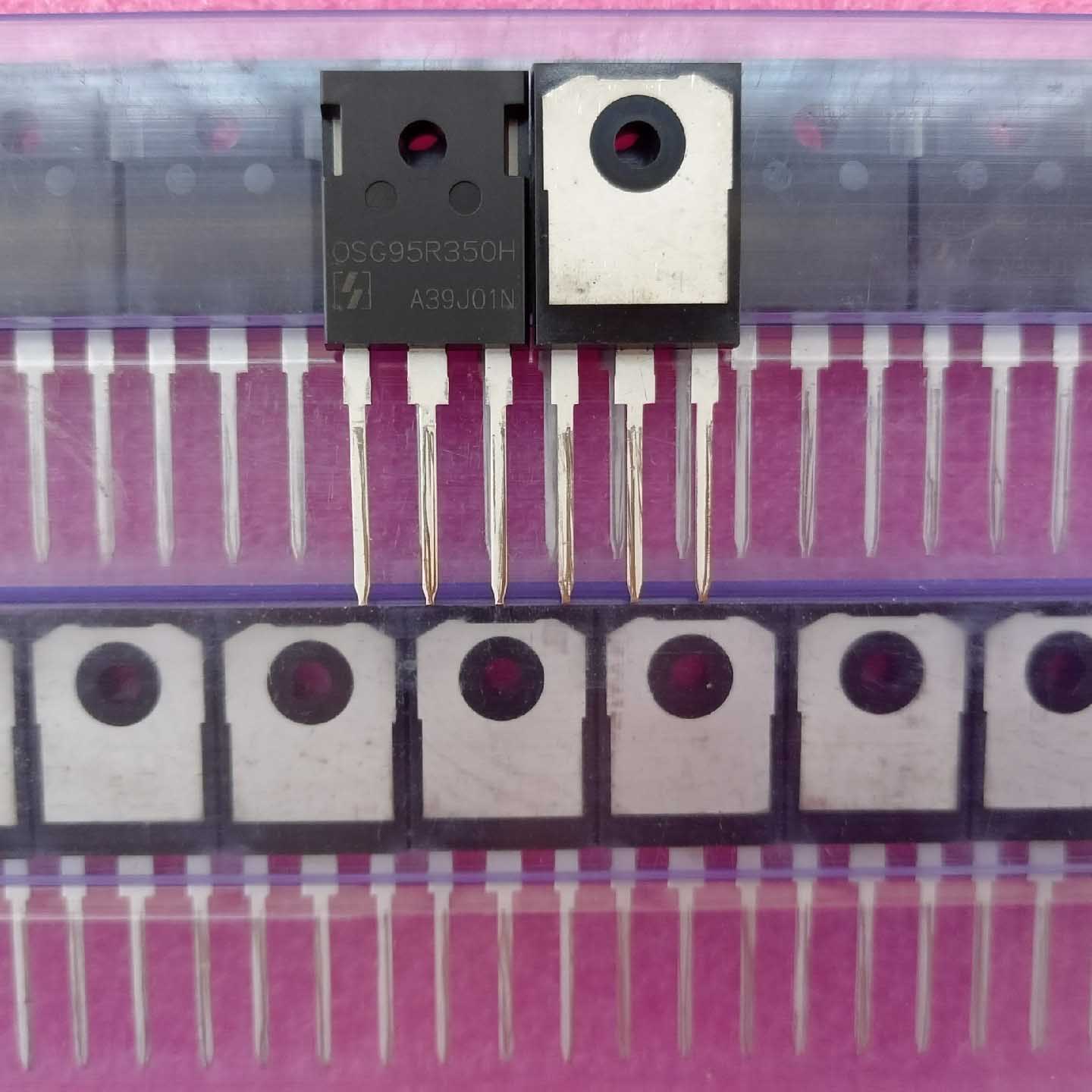

Image for reference only

Manufacturer Part：

OSG95R350HF

Package：

TO-247-3 / HF (15.6 x 5.15 x 20.0 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

SST25VF020B-80-4I-SAE

SN74LVC1G74DCU

SGM4890YMS

SC33911BAC

S-81337HG-KE-T1

MT5016A

MJL4302

MJL4281

Description

Product Overview

The OSG95R350HF is a high-voltage silicon carbide (SiC) power MOSFET designed for high-efficiency power conversion applications. Featuring a 950V drain-source voltage rating and ultra-low on-resistance of 350 mΩ, this SiC MOSFET delivers significantly reduced switching losses compared to conventional silicon MOSFETs, enabling higher operating frequencies and improved power density. The TO-247-3 package provides excellent thermal performance and high-voltage isolation, making it suitable for industrial power supplies, renewable energy inverters, and electric vehicle charging systems.

Key Specifications

Drain-Source Voltage (VDSS) 950 V
Continuous Drain Current (ID) 40 A
On-Resistance (RDS(on)) 350 mΩ @ VGS=10V
Gate-Source Voltage (VGSS) -10V to +20V
Total Gate Charge (Qg) 120 nC
Input Capacitance (Ciss) 2200 pF
Reverse Recovery Charge (Qrr) 200 nC
Thermal Resistance (RthJC) 0.35 °C/W
Operating Temperature -55°C to +175°C
Package Type TO-247-3 (HF)

Features

  • 950V SiC power MOSFET with ultra-low RDS(on)
  • Fast switching speed with low switching losses
  • Low gate charge for efficient driving

Applications

  • Solar inverters and renewable energy systems
  • Electric vehicle battery chargers
  • Industrial power supplies
  • Uninterruptible power supplies (UPS)
  • High-frequency DC-DC converters
  • Motor drives and servo systems

The OSG95R350HF is a 950V silicon carbide (SiC) N-channel enhancement-mode power MOSFET that represents a significant advancement in high-voltage power semiconductor technology. Built on onsemi’s advanced SiC manufacturing process, this device offers dramatically lower switching and conduction losses compared to equivalent silicon IGBTs and super-junction MOSFETs. With a rated on-resistance of 350 mΩ at VGS=10V and a continuous drain current capability of 40A at 25°C, the OSG95R350HF strikes an optimal balance between conduction loss and cost-effectiveness for mid-power applications. The device features a robust body diode with low reverse recovery charge, eliminating the need for external freewheeling diodes in many topologies and reducing overall bill of materials. The TO-247-3 package provides high creepage and clearance distances suitable for 950V operation, combined with a low thermal resistance junction-to-case of 0.35°C/W for efficient heat dissipation. Operating up to a junction temperature of 175°C, this SiC MOSFET enables designers to push switching frequencies higher, reducing the size of magnetic components and capacitors to achieve unprecedented power density in high-voltage power conversion systems.

The OSG95R350HF operates as an N-channel enhancement-mode SiC MOSFET, utilizing the wide-bandgap properties of silicon carbide to achieve superior high-voltage performance. When a positive voltage greater than the threshold voltage (VGS(th) ≈ 2.5V) is applied between the gate and source terminals, an inversion layer forms at the SiC surface beneath the gate oxide, creating a conductive channel between drain and source. The hexagonal cell structure of the device provides a high channel density, minimizing on-resistance per unit area. Unlike silicon MOSFETs, the SiC material supports much higher electric field strengths (approximately 10x that of silicon), allowing for a much thinner drift region for a given voltage rating, which directly translates to lower on-resistance and faster switching speeds. The device’s intrinsic body diode, formed by the P-body/N-drift junction, exhibits significantly faster reverse recovery than silicon counterparts due to the absence of minority carrier injection effects. The gate oxide is carefully engineered to ensure long-term reliability at the rated gate voltage of 20V, with optimized thickness to balance threshold voltage stability against gate charge. Thermal performance is enhanced through the thick copper lead frame of the TO-247 package, which efficiently conducts heat from the die to the heat sink.

Pin Name Type Function
1 Gate (G) Input Gate control terminal, drive with 0-15V PWM
2 Drain (D) Power Drain terminal (high-voltage side)
3 Source (S) Power Source terminal (low-voltage/return side)
Tab Drain (D) Power Mounting tab, electrically connected to drain
  • Photovoltaic string inverters and central inverters
  • On-board and off-board electric vehicle chargers
  • High-efficiency industrial switch-mode power supplies
  • Three-phase UPS and energy storage systems
  • High-frequency isolated DC-DC converters
  • Servo motor drives and industrial automation
Manufacturer Part Number Package Notes
Wolfspeed C3M0032120K TO-247-3 1200V SiC MOSFET, 32mΩ, higher voltage
Infineon IMZA65R048M1H TO-247-3 650V CoolSiC, 48mΩ, lower voltage
STMicro SCTW35N65G2V TO-247-4 650V SiC MOSFET, 35A, 4-pin Kelvin
Rohm SCT3080AL TO-247-3 1200V SiC, 80mΩ, 32A
