S-81337HG-KE-T1

High-accuracy voltage detector IC, 3.7V detection threshold, open-drain output, ultra-low current, SOT-23-3, -40°C to 85°C

7025

Effective Inventory
Go to Inquiry

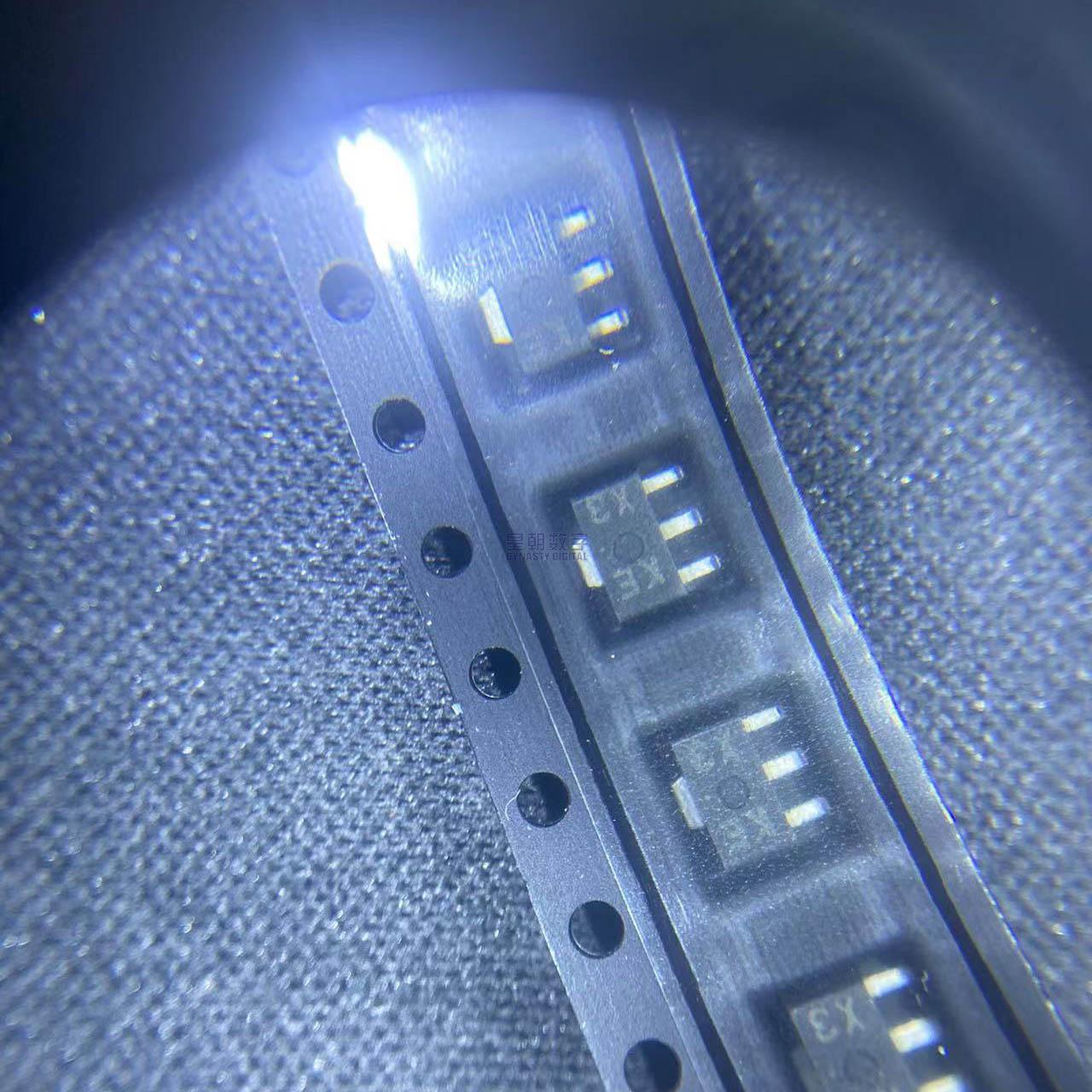

Image for reference only

Manufacturer Part：

S-81337HG-KE-T1

Package：

SOT-23-3

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

SST25VF020B-80-4I-SAE

SN74LVC1G74DCU

SGM4890YMS

SC33911BAC

OSG95R350HF

MT5016A

MJL4302

MJL4281

Description

Product Overview

The S-81337HG-KE-T1 is a high-accuracy voltage detector IC manufactured by ABLIC Inc. (formerly SII Semiconductor Corporation). This device is designed to monitor voltage levels in electronic circuits and provide a reset signal to microcontrollers or other devices when the voltage drops below a preset detection threshold. It features ultra-low current consumption, open-drain output configuration, and built-in hysteresis to prevent oscillation near the threshold voltage. Packaged in a compact SOT-23-3 package, it is ideal for space-constrained applications.

Key Specifications

Manufacturer ABLIC Inc. (SII Semiconductor)
Product Category Voltage Detector / Reset IC
Detection Voltage 3.7V (HG suffix)
Detection Voltage Accuracy High accuracy (±1% typical)
Input Voltage Range 0.8V to 10V (typical)
Supply Current Consumption Ultra-low (μA range)
Output Type Open-drain, N-channel MOSFET
Hysteresis Built-in hysteresis characteristic
Operating Temperature Range -40°C to +85°C
Package SOT-23-3 (TO-236)
Package Marking KE (product code)

Features

  • High-accuracy voltage detection
  • Ultra-low current consumption for extended battery life
  • Open-drain output for flexible interfacing
  • Built-in hysteresis prevents oscillation at threshold
  • Wide operating temperature range: -40°C to +85°C
  • Compact SOT-23-3 package for space-constrained designs
  • Improved system reliability by preventing low-voltage operation
  • Enhanced noise immunity due to hysteresis characteristic
  • Simplified circuit design with integrated functionality
  • No external components required for basic operation

Applications

  • Microcontroller power-on reset circuits
  • Power supply voltage monitoring
  • Battery-operated portable devices
  • Industrial control systems
  • Automotive electronics
  • Consumer electronics
  • Battery level detection
  • Power failure detection circuits

The S-81337HG-KE-T1 is a precision voltage detector IC from ABLIC Inc., designed to monitor supply voltages and generate accurate reset signals in electronic systems. With a detection voltage of 3.7V (indicated by the ‘HG’ suffix), this device is particularly suitable for monitoring 3.3V or 3.7V power supply rails commonly found in microcontroller-based systems. The open-drain N-channel MOSFET output allows flexible interfacing with various logic levels through an external pull-up resistor. Built-in hysteresis prevents output chattering near the detection threshold, ensuring stable and reliable operation even in noisy environments. The ultra-low current consumption makes it ideal for battery-powered applications where power conservation is critical. Packaged in the widely-used SOT-23-3 (TO-236) surface mount package, the S-81337HG provides a compact and cost-effective solution for voltage monitoring and power-on reset applications across consumer, industrial, and automotive electronics markets.

The S-81337HG voltage detector operates by continuously monitoring the input voltage (VDD pin) and comparing it against a precision internal reference voltage. The internal circuit consists of a high-precision bandgap reference, a voltage divider network (to set the detection threshold), a comparator with hysteresis, and an open-drain output driver. When the input voltage falls below the detection threshold (VDET-), the comparator output changes state, turning off the output MOSFET and allowing the output pin to be pulled high by an external pull-up resistor (indicating an undervoltage condition). When the input voltage rises above the detection threshold plus hysteresis (VDET+), the comparator switches back, turning on the output MOSFET which pulls the output low (indicating normal voltage condition). The hysteresis feature ensures that once the voltage crosses the threshold, minor fluctuations won’t cause the output to toggle back and forth, providing clean and stable reset signals. The open-drain output configuration allows the device to interface with systems using different supply voltages by selecting an appropriate pull-up resistor value.

Pin Number Pin Name Description
1 VDD Power Supply Input / Voltage Monitor Input
2 VSS Ground (0V reference)
3 RESET Open-drain Reset Output (active low)

Note: Pin configuration is standard for SOT-23-3 package voltage detectors. Verify exact pinout with official datasheet.

  • Microcontroller power-on reset (POR) circuits
  • Power supply voltage monitoring and supervision
  • Battery-operated portable devices and wearables
  • Industrial control and automation systems
  • Automotive electronics (body electronics, infotainment)
  • Consumer electronics (smartphones, tablets, IoT devices)
  • Battery level detection and low-battery warning systems
  • Power failure detection and brown-out protection
Model Manufacturer Description
S-812C series ABLIC 16V input, 75mA LDO+detector combo
MCP112 Microchip Voltage detector with manual reset
MAX809 Maxim/ADI 3-pin microprocessor reset circuit
APX803 Diodes Inc. 3-terminal voltage detector
XC61CN Torex Voltage detector with delay circuit
