MT5016A

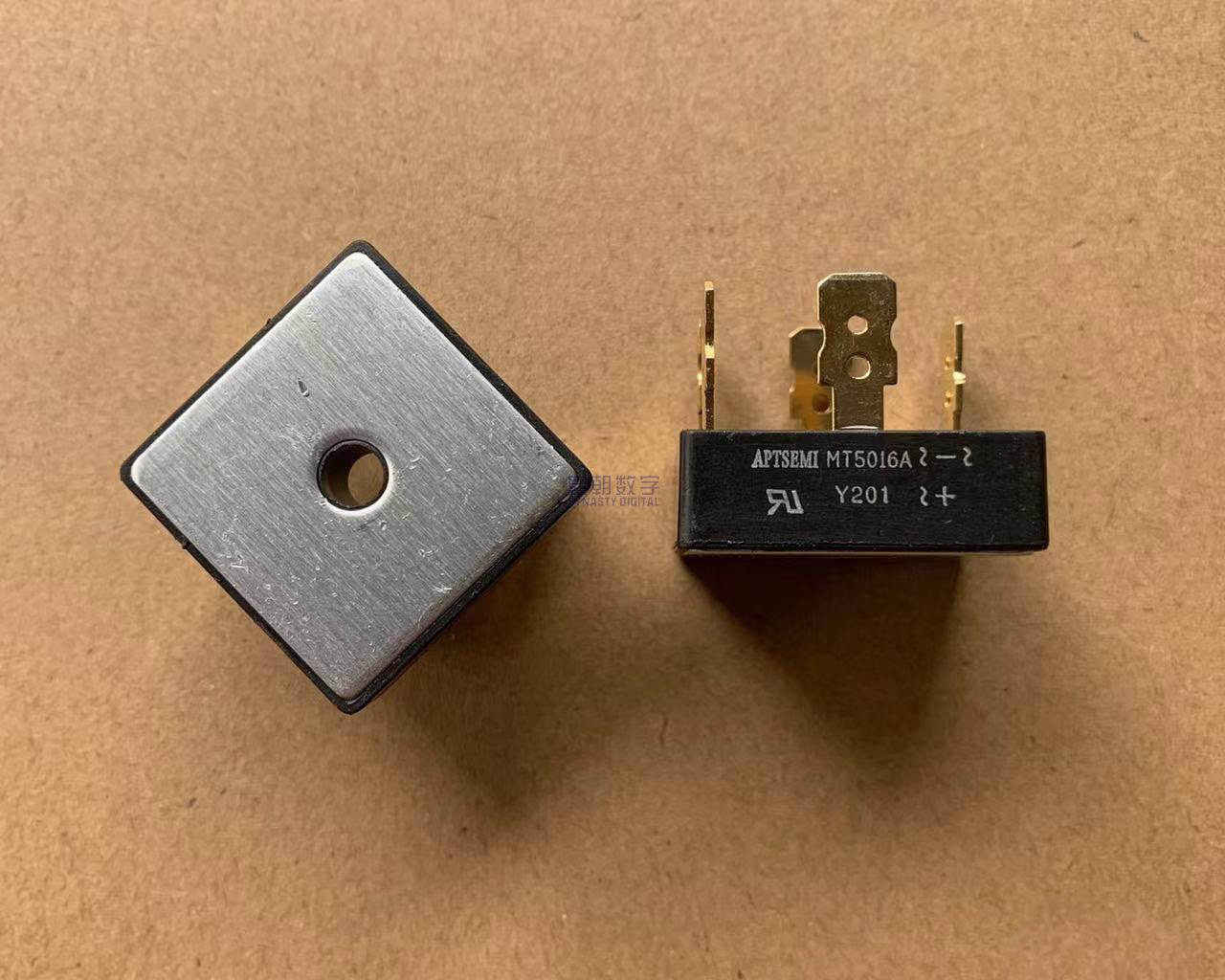

Three-phase bridge rectifier, 50A, 1600V, MT-35A QC terminal package, industrial power supply

5600

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

MT5016A

Package：

MT-35A (4-Square QC terminal, ~35x60mm base)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

KBPC3510W

Description

Product Overview

The MT5016A is a three-phase bridge rectifier from MCC (Micro Commercial Components). This high-power three-phase bridge rectifier features a 1.6kV peak reverse voltage rating and 50A average rectified current capacity. Packaged in the robust MT-35A (four-square QC terminal) package, the MT5016A is designed for industrial three-phase power supply applications including motor drives, welding equipment, and high-power charging systems.

Key Specifications

Manufacturer MCC (Micro Commercial Components)
Type Three-Phase Full-Wave Bridge Rectifier
Technology Standard Silicon Diode
Average Rectified Current (Io) 50 A
Peak Repetitive Reverse Voltage (VRRM) 1600 V
Peak Surge Current (IFSM) 400 A (single half-cycle)
Forward Voltage (Vf) 1.2 V max @ 12A per leg
Operating Temperature -40°C to +150°C (Tj)
Storage Temperature -55°C to +150°C
Package MT-35A (QC Terminal, 4-Square)
Mounting Type QC Terminal (chassis mount)
Phases 3-phase
Configuration 6-diode bridge (3-phase full-wave)
Weight ~120g

Features

  • Three-phase full-wave bridge rectifier
  • 50A average output current
  • 1600V peak reverse voltage rating
  • High surge current capability: 400A
  • Low forward voltage drop
  • MT-35A QC terminal package for high power
  • Internally connected 6-diode bridge configuration
  • Case isolated from internal elements
  • Lead-free and RoHS compliant
  • High thermal conductivity base plate
  • Meets JEDEC standards
  • Suitable for industrial power applications

Applications

  • Three-phase power supplies and rectifiers
  • Industrial motor drives and VFD frontends
  • Welding equipment power supplies
  • High-current battery chargers
  • Industrial automation and machinery
  • Uninterruptible Power Supplies (UPS)
  • DC power supply for electroplating
  • High-power LED drivers

The MT5016A is a three-phase full-wave bridge rectifier module from MCC (Micro Commercial Components), designed for high-power industrial rectification applications. This device integrates six silicon rectifier diodes in a three-phase bridge configuration, accepting three-phase AC input and producing full-wave rectified DC output. With an average rectified current rating of 50A and a peak reverse voltage of 1600V, the MT5016A is suitable for demanding industrial power supply applications including three-phase motor drives, welding equipment, battery chargers, and industrial automation systems. The MT-35A package features four quick-connect (QC) terminals for the three AC inputs and the DC output, with a robust metal base plate for efficient heat dissipation. The package is designed for chassis or heatsink mounting using a center mounting bolt, providing reliable mechanical support and good thermal conduction. The device is fully RoHS compliant and lead-free. The high surge current capability of 400A ensures robust performance during startup and transient load conditions, such as motor startup inrush current or capacitor charging surges. The low forward voltage drop minimizes power dissipation and improves overall system efficiency.

The MT5016A operates as a three-phase full-wave rectifier bridge using six silicon diodes arranged in a bridge configuration. Each phase leg of the three-phase AC input is connected between two diodes – one diode for the positive half-cycle and one for the negative half-cycle. Operation principle: 1) At any instant in a three-phase AC system, one phase has the highest positive voltage and another has the most negative voltage. 2) The diode connected to the most positive phase conducts, allowing current to flow to the positive DC output terminal. 3) The diode connected to the most negative phase also conducts, allowing current to return from the negative DC output terminal. 4) As the AC phases rotate, different diode pairs conduct in sequence, maintaining a relatively smooth DC output voltage with six pulses per AC cycle. 5) The output DC voltage for a three-phase full-wave rectifier is approximately 1.35 × V_L-L (line-to-line RMS voltage). For example, with 208VAC three-phase input, the average DC output is approximately 281V. The diodes are silicon PN junction rectifiers with low forward voltage drop and high reverse breakdown voltage. During the forward conduction state, current flows from anode to cathode with a voltage drop of approximately 1.2V. During the reverse blocking state, the diode withstands the reverse voltage with minimal leakage current. The MT-35A package’s metal base plate serves as a thermal interface, conducting heat from the diode junctions to the external heatsink or chassis. Proper heatsinking is essential to maintain junction temperature within the -40°C to +150°C operating range.

Terminal Name Type Function
~1 (AC1) Phase A Input AC Input Three-phase AC input phase A (R)
~2 (AC2) Phase B Input AC Input Three-phase AC input phase B (S)
~3 (AC3) Phase C Input AC Input Three-phase AC input phase C (T)
+ (DC+) DC Positive Output DC Output Positive DC output terminal
– (DC-) DC Negative Output DC Output Negative DC output terminal
Base Heatsink Base Thermal Metal base plate for heatsink mounting
  • Three-phase industrial power supply front-end rectification
  • Variable frequency drives (VFD) and motor control systems
  • Arc welding and plasma cutting power supplies
  • High-current industrial battery chargers
  • Uninterruptible Power Supply (UPS) systems
  • Industrial electroplating and electrolysis power supplies
  • High-power LED lighting drivers
  • DC power supply for telecommunications equipment
Manufacturer Part Number Package Notes
MCC MT5012A-BP MT-35A 50A 1200V (lower voltage)
MCC MT3516A-BP MT-35A 35A 1600V (lower current)
Vishay VS-50MT160KPBF INT-A-PAK 50A 1600V 3-phase bridge
IXYS VUO52-16NO1 MiniBLOC 52A 1600V alternative
Semikron SKD 51/16 Module 51A 1600V industrial module
