MJL4281

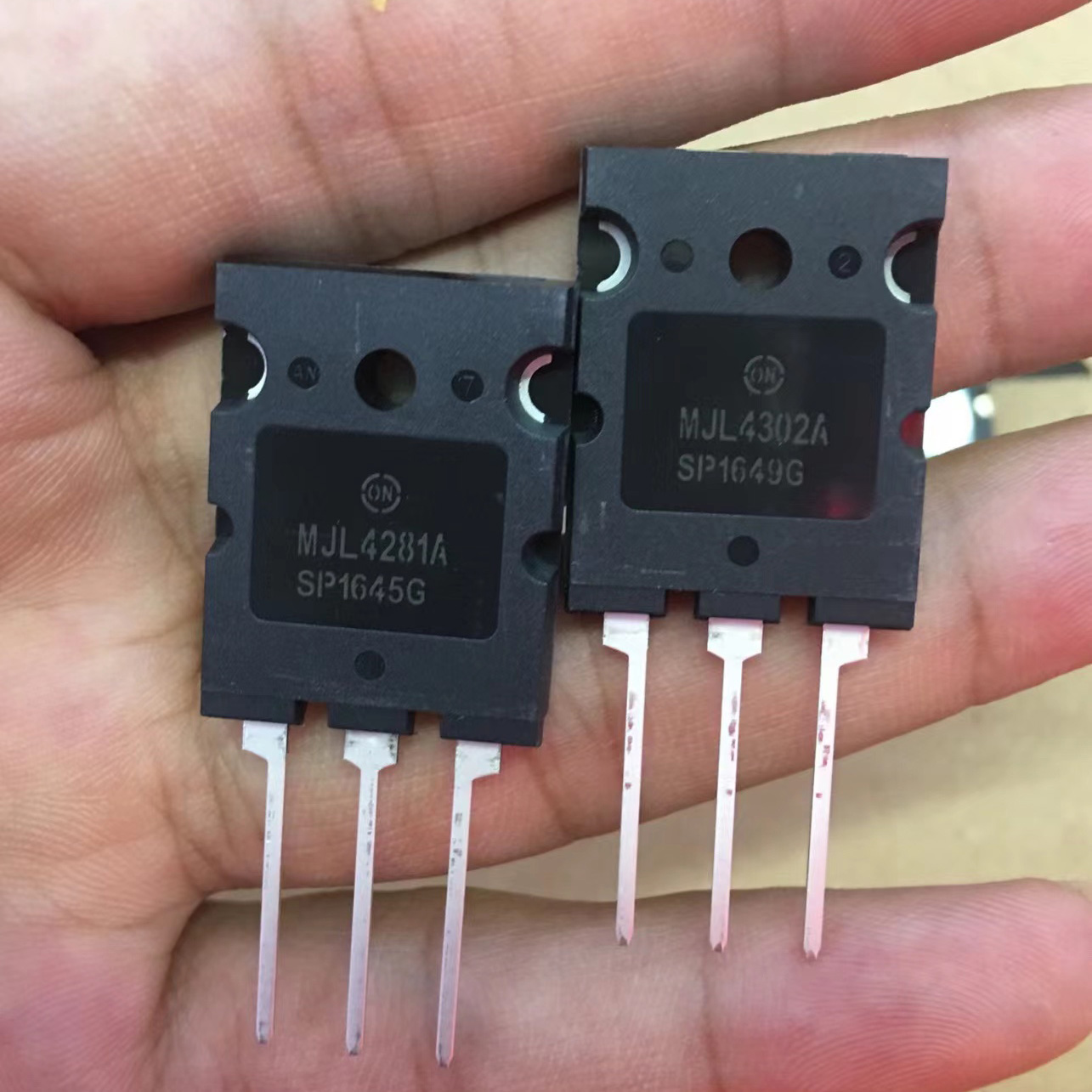

The MJL4281 is a high-performance NPN power transistor from ON Semiconductor, part of the advanced MJL4281/MJL4302 complementary pair designed specifically for high-end audio applications. Building on the heritage of the popular MJL21195/MJL21196 series, the MJL4281 raises the bar with higher voltage ratings (350V VCEO vs 250V), higher transition frequency (30 MHz typical), and improved thermal characteristics, making it suitable for higher-power and wider-bandwidth amplifier designs. The higher VCEO rating of 350V allows for higher supply voltages in push-pull amplifier configurations, enabling greater output power into typical loudspeaker loads. The 30 MHz transition frequency is significantly higher than the MJL21196’s 4 MHz, contributing to better high-frequency response and reduced transient intermodulation distortion. With 15A continuous current capability and 230W power dissipation, these devices can deliver substantial output power when properly heatsunk. The MJL4281/MJL4302 pair is engineered specifically for audio applications, with careful attention to gain matching, linearity, and thermal stability. The devices are frequently used in high-end audiophile amplifier designs where sound quality is paramount. The TO-264 package provides excellent thermal performance with a thermal resistance of only 0.55°C/W from junction to case. The ‘A’ suffix version (MJL4281AG) indicates improved specifications and tighter parameter distribution. These transistors are manufactured using advanced epitaxial planar processes and feature optimized doping profiles for optimal audio performance.

The MJL4281 is an NPN bipolar junction transistor operating as a current-controlled current amplifier. Current flows from the collector to the emitter when the base-emitter junction is forward biased. The base current controls the much larger collector current according to the relationship IC = hFE × IB. The device’s high current gain (typically 50-80 at 8A) means relatively low base drive current is required for high output currents. The 30 MHz transition frequency (fT) indicates the frequency at which the current gain drops to unity. A higher fT means better high-frequency performance and faster switching, which translates to better transient response and lower distortion in audio applications – particularly important for reproducing high-frequency harmonics and fast musical transients. The 350V VCEO rating allows designers to use higher supply voltages (typically ±80V to ±100V or more in push-pull configurations), which directly translates to higher output power capability. With VCC = ±80V into an 8Ω load, theoretical output power approaches 400W per channel – sufficient for large rooms and professional applications. The high safe operating area (SOA) ensures that the transistor can reliably handle the simultaneous high voltage and high current conditions that occur when driving reactive loudspeaker loads. In Class AB push-pull operation with its PNP complement (MJL4302), the MJL4281 handles the positive signal half-cycle while the MJL4302 handles the negative half, with both devices biased at a small idle current to minimize crossover distortion. The complementary pair is carefully matched for gain and VBE characteristics to ensure symmetrical performance.

• High-end audiophile and high-fidelity power amplifiers
• Professional audio amplifiers and studio monitors
• High-voltage push-pull output stage designs
• Concert and PA system power amplifiers
• Linear high-voltage power supply regulators
• Instrumentation and precision measurement amplifiers
