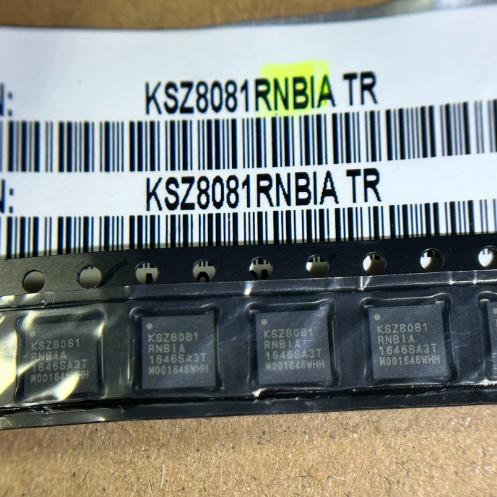

KSZ8081RNBIA TR

10BASE-T/100BASE-TX Ethernet PHY transceiver with RMII interface, 3.3V supply, QFN-32 package

8742

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

KSZ8081RNBIA TR

Package：

QFN-32 EP (5x5mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IKW50N60T

FS100R12KT4G

SM8S33ATHE3/I

SM8S17AHE3_A/I

NSVBAT54HT1G

BAV70W,115

MMBTA92Q-7-F

RM12FT1203

Description

Product Overview

The KSZ8081RNBIA TR is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver manufactured by Microchip Technology. It is designed for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. This highly-integrated PHY solution features RMII v1.2 interface support with a 50MHz reference clock output to MAC, reducing board cost and simplifying board layout with on-chip termination resistors and an integrated low-noise regulator.

Key Specifications

Parameter Value
Manufacturer Microchip Technology
Device Type Ethernet PHY Transceiver
Standard IEEE 802.3 compliant
Data Rate 10Mbps / 100Mbps
Interface RMII v1.2
Supply Voltage 3.135V to 3.465V (3.3V typical)
Supply Current 47mA typical
Package QFN-32 EP (5mm x 5mm)
Operating Temperature -40°C to +85°C (Industrial)
ESD Rating 6kV HBM

Features

  • Single-chip 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet transceiver
  • RMII v1.2 interface with 50MHz reference clock output to MAC
  • HP Auto MDI/MDI-X with disable and enable option
  • MDC/MDIO management interface for PHY register configuration
  • Programmable interrupt output and LED status indicators
  • On-chip termination resistors for differential pairs
  • Baseline wander correction and built-in 1.2V regulator for core
  • LinkMD TDR-based cable diagnostics for faulty copper cabling
  • Parametric NAND tree support for fault detection
  • Power-down and power-saving modes

Applications

  • Game consoles and set-top boxes
  • IP phones and IP TVs
  • Network printers and LOM
  • Industrial Ethernet equipment
  • Embedded systems with networking capability

The KSZ8081RNBIA TR is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver from Microchip Technology. It provides a highly integrated PHY solution that reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and integrating a low-noise regulator to supply the 1.2V core. The device offers RMII v1.2 interface support with a 50MHz reference clock output to MAC, making it ideal for direct connection to RMII-compliant Ethernet MACs in processors and switches. With LinkMD TDR-based cable diagnostics, HP Auto MDI/MDI-X, and comprehensive power management features, the KSZ8081RNBIA TR delivers robust performance for a wide range of Ethernet applications.

The KSZ8081RNBIA TR operates as an Ethernet physical layer transceiver that converts digital data from the MAC layer into analog signals for transmission over twisted pair copper cable, and vice versa. On the transmit side, digital data from the RMII interface is encoded and driven onto the differential pairs using 10BASE-T or 100BASE-TX signaling. On the receive side, incoming analog signals are equalized, decoded, and converted back to digital data for the MAC. The device auto-negotiates the best possible link speed and duplex mode. An integrated 1.2V regulator powers the core, while VDD I/O supports 1.8V, 2.5V, or 3.3V levels for flexible interfacing.

Pin Name Description
1-6 RXI/N, TXO/N Differential receive and transmit pairs
7-10 MDIO, MDC, INTRP, RXD0-2 Management interface and receive data
11-14 RXER, CRS_DV, REF_CLK Receive error, carrier sense, reference clock
15-18 TXEN, TXD0-1 Transmit enable and data
19-22 LED0/1, CONFIG0-2 LED indicators and configuration pins
23-28 VDDA, VDDIO, VDDL Power supply pins
29-32 GND, XTAL1/2 Ground and crystal oscillator
  • IP phones, set-top boxes, and smart TVs
  • Industrial Ethernet and factory automation
  • Network printers and scanners
  • Embedded systems with Ethernet connectivity
  • IoT gateways and edge devices
Model Manufacturer Package
KSZ8081MNXIA Microchip QFN-32 (MII interface)
KSZ8091RNA Microchip QFN-24 (10/100/1000)
LAN8720A Microchip QFN-24
DP83848 TI WQFN-40
Recommend Parts

IKW50N60T

Infineon IKW50N60T TRENCHSTOP IGBT, 600V, 50A, with fast recovery diode, TO-247

Brand:

Package:

TO-247-3

In stock:

4320pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

FS100R12KT4G

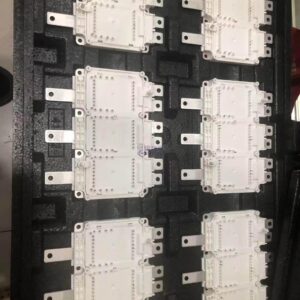

IGBT Module, 1200V, 100A, Six-Pack, EconoPACK 3, Infineon
