Product Overview

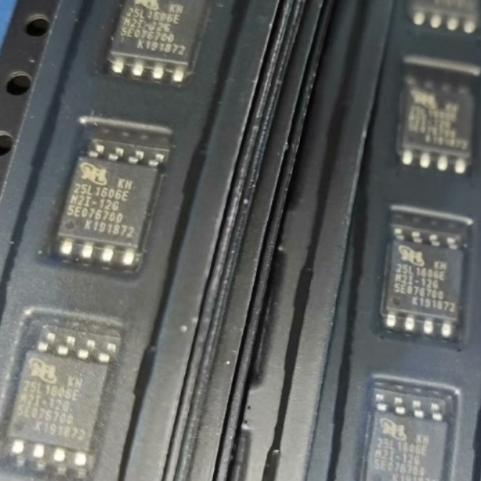

The KH25L1606EM2I-12G is a 16Mbit (2M x 8) NOR Flash memory from KHIC (Macronix-compatible), operating at 2.7V to 3.6V with SPI interface and 86 MHz maximum clock. It supports Single I/O and Dual Output read modes, with 4KB sector and 64KB block erase architecture. The M2I-12G variant is packaged in an 8-pin SOP-208mil for industrial temperature range.
Key Specifications
| Density | 16Mbit (2M x 8) |
| Interface | SPI (Single/Dual Output) |
| Supply Voltage | 2.7V to 3.6V |
| Max Clock Frequency | 86 MHz |
| Sector Size | 4KB (512 sectors) |
| Block Size | 64KB (32 blocks) |
| Page Size | 256 bytes |
| Erase Cycles | 100,000 |
| Data Retention | 20 years |
| Operating Temp | -40°C to +85°C |
| Package | SOP-8 (208mil) |
| Part Status | Active (KHIC brand) |
Features
- 16Mbit SPI NOR Flash with Single/Dual Output
- 86 MHz maximum clock frequency
- 4KB uniform sector and 64KB block erase
- 256-byte page program
- Secured OTP (4Kb x 2) and Unique ID
- Hardware HOLD and WP# write protection
- SFDP support
- Deep power-down mode
- 100,000 program/erase cycles
- 20-year data retention
Applications
- Embedded system firmware storage
- Digital TV and set-top box BIOS
- Industrial automation boot memory
- Networking equipment code storage
- Consumer electronics program memory
