KH25L8006EM2I-12G

8Mb SPI NOR Flash, 86MHz, 2.7~3.6V, 4KB sector/64KB block, SOP-8 208mil, industrial temp

11234

Effective Inventory
Go to Inquiry

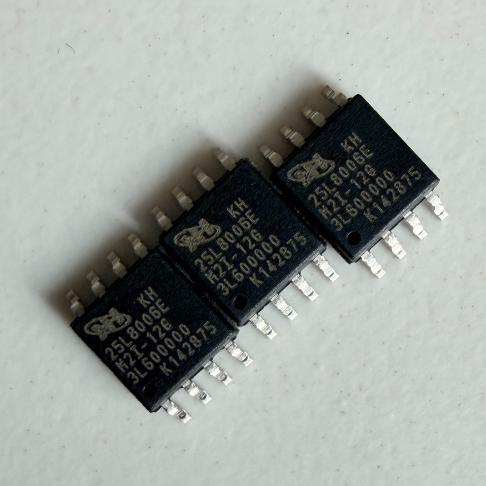

Image for reference only

Manufacturer Part：

KH25L8006EM2I-12G

Package：

SOP-8 (208mil / 5.30mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The KH25L8006EM2I-12G is an 8Mbit (1M x 8) NOR Flash memory from KHIC (Macronix-compatible), operating at 2.7V to 3.6V with SPI interface and 86 MHz maximum clock frequency. It supports Single I/O and Dual Output read modes, with 4KB sector and 64KB block erase architecture. The M2I-12G variant is packaged in an 8-pin SOP-208mil, qualified for industrial temperature range (-40°C to +85°C).

Key Specifications

Density 8Mbit (1M x 8)
Interface SPI (Single/Dual Output)
Supply Voltage 2.7V to 3.6V
Max Clock Frequency 86 MHz
Sector Size 4KB
Block Size 64KB
Page Size 256 bytes
Page Program Time 600 us typ.
Erase Cycles 100,000
Data Retention 20 years
Operating Temp -40°C to +85°C
Package SOP-8 (208mil)
Part Status Active (KHIC brand)

Features

  • 8Mbit SPI NOR Flash with Single/Dual Output read
  • 86 MHz maximum clock frequency
  • 4KB uniform sector and 64KB block erase
  • 256-byte page program
  • Secured OTP (4Kb x 2) and Unique ID
  • Hardware HOLD and write protection
  • SFDP (Serial Flash Discoverable Parameters) support
  • Deep power-down mode for low standby current
  • 100,000 program/erase cycles endurance
  • 20-year data retention

Applications

  • Embedded system code storage
  • Bios/firmware storage for set-top boxes and routers
  • Industrial control firmware
  • Consumer electronics boot memory
  • IoT device configuration storage

The KH25L8006EM2I-12G is an 8Mbit NOR Flash memory from KHIC, a Macronix-compatible brand. It operates at 2.7V to 3.6V with SPI interface supporting Single I/O and Dual Output modes at up to 86 MHz. The device features 4KB sector and 64KB block erase architecture with 256-byte page programming, secured OTP, unique ID, and SFDP support. Packaged in an 8-pin SOP-208mil, it is pin-compatible with the MX25L8006EM2I-12G and qualified for industrial temperature range (-40°C to +85°C).

The KH25L8006E operates via standard SPI commands (Mode 0 and Mode 3). Read operations: standard READ (03h) up to 50MHz, FAST_READ (0Bh) up to 86MHz, Dual Output Read (3Bh) for 2x throughput. Program: Page Program (02h) writes up to 256 bytes per page. Erase: Sector Erase (20h, 4KB), Block Erase (D8h/52h, 64KB), Chip Erase (C7h/60h). Write protection via Status Register bits (BP, CMP) and WP# pin. Deep Power-down (B9h) reduces standby current. The device also supports Read SFDP (5Ah) for parameter discovery, Secured OTP region access (ENSO/EXSO), and unique ID reading.

Pin Name Type Function
1 CS# Input Chip select, active low
2 DO (IO1) I/O Data output / Dual data 1
3 WP# (IO2) I/O Write protect / Dual data 2
4 GND Power Ground
5 DI (IO0) I/O Data input / Dual data 0
6 CLK Input Serial clock
7 HOLD# (IO3) I/O Hold / Dual data 3
8 VCC Power 2.7V to 3.6V supply
  • Set-top box and router firmware storage
  • Industrial MCU boot code memory
  • Consumer electronics BIOS storage
  • IoT device configuration and OTA update storage
Manufacturer Part Number Package Notes
Macronix MX25L8006EM2I-12G SOP-8 208mil Original, pin-to-pin identical
Winbond W25Q80DVSSIG SOIC-8 8Mb SPI flash alternative
Macronix MX25V8035FM2I SOP-8 150mil Recommended replacement (newer)
GigaDevice GD25Q80C SOIC-8 8Mb SPI flash, compatible
