KL4X164CD-C7A

2GB LPDDR4X SDRAM, Dual Channel x32, 3733Mbps, 200-Ball FBGA

5000

Effective Inventory
Go to Inquiry

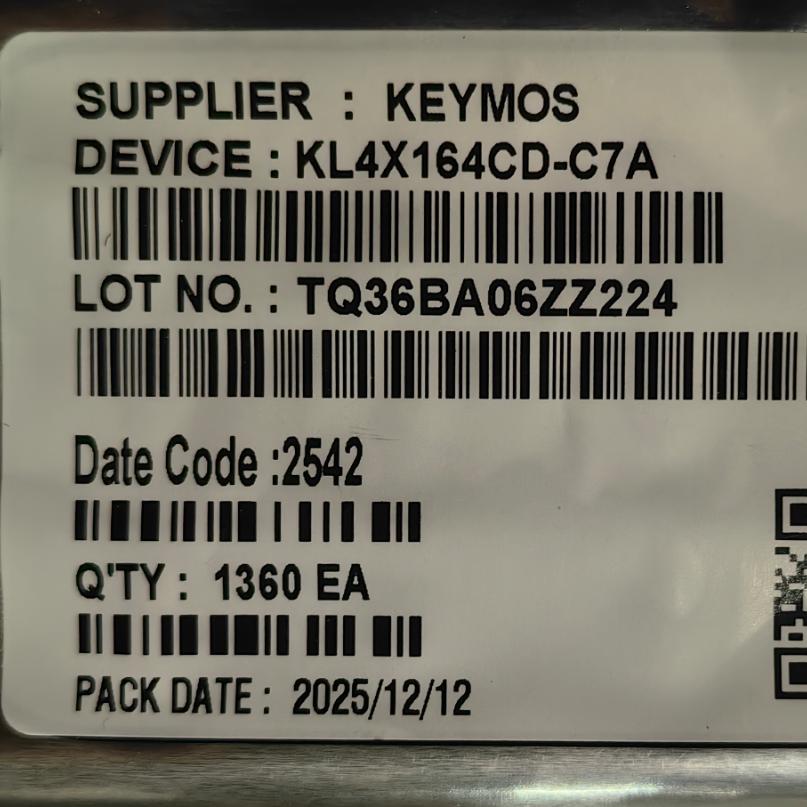

Image for reference only

Manufacturer Part：

KL4X164CD-C7A

Package：

200-Ball FBGA

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The KL4X164CD-C7A is a 2GB LPDDR4X SDRAM from Keymos (Key MOS Memory), organized as dual-channel x32 bits (2CH x 16-bit x 2 ranks). It supports data rates up to 3733 Mbps with LPDDR4X low-voltage operation (0.6V I/O). Packaged in a 200-ball discrete FBGA package, it features dual-die dual-channel architecture for high-bandwidth mobile and embedded applications.

Key Specifications

Type LPDDR4X SDRAM
Capacity 2GB (16Gbit)
Organization Dual Channel x32 (2CH x 16-bit x 2 dies)
Data Rate Up to 3733 Mbps
VDD2 Core 1.1V (LPDDR4X)
VDDQ I/O 0.6V (LPDDR4X low voltage)
Die Config 512Mb x 16 per die
Bank Address BA0-BA2 (8 banks per die)
Row Address A0-A15 (64K rows)
Package 200-Ball FBGA (discrete)
Ball Pitch 0.8mm x-axis, 0.65mm y-axis

Features

  • 2GB LPDDR4X dual-channel x32 SDRAM
  • Up to 3733 Mbps data rate (-C7A)
  • 0.6V I/O voltage for ultra-low power
  • Dual-die dual-channel architecture
  • 16n-prefetch DDR architecture
  • Multiplexed CA bus (command/address)
  • ZQ impedance calibration
  • 8 banks per die (BA0-BA2)
  • 200-ball FBGA package
  • Industrial and consumer applications

Applications

  • Smartphones and tablets
  • Portable electronics
  • IoT gateways
  • Wearable devices
  • Automotive infotainment
  • Industrial handhelds

The KL4X164CD-C7A is a 2GB LPDDR4X SDRAM from Keymos (Key MOS Memory), organized as dual-channel x32 bits (2CH x 16-bit x 2 ranks). It supports data rates up to 3733 Mbps with LPDDR4X low-voltage operation (0.6V I/O). Packaged in a 200-ball discrete FBGA package, it features dual-die dual-channel architecture for high-bandwidth mobile and embedded applications.

The KL4X164CD-C7A uses LPDDR4X (Low Power Double Data Rate 4X) memory architecture with 16n-prefetch. It operates with a multiplexed command/address bus on both clock edges. Two independent channels share VDD1/VDD2/VDDQ power supplies but have separate control signals. The dual-die package stacks two 512Mb x16 dies per channel for total 2GB capacity. ZQ calibration provides impedance matching for signal integrity.

Pin Group Name Description
Data Ch A DQ0A-DQ15A 16-bit channel A data
Data Ch B DQ0B-DQ15B 16-bit channel B data
Strobes DQSU/DQSD (per byte) Per-byte data strobes
Address/Command CA0-CA5 Multiplexed command/address
Clock CK_t/CK_c Differential clock (per channel)
Control CS, CKE, ODT Chip select, clock enable, termination
Calibration ZQ1, ZQ2 ZQ calibration resistors
Power VDD1, VDD2, VDDQ, VSS Core, I/O, and ground
  • Smartphones and tablets
  • Portable electronics
  • IoT gateways
  • Wearable devices
  • Automotive infotainment
  • Industrial handhelds
Manufacturer Part Number Description
Samsung K4U6E3S4AB-MGCL 64Gb LPDDR4X x32
Micron MT53E256M32D1 8GB LPDDR4X equivalent
ISSI IS43/46LQ32128 256Mb LPDDR4 alternative
