MX25L51245GMI-08G

512Mb Serial NOR Flash, Quad SPI, 133MHz, 64MB, SOIC-8, -40~85°C

5678

Effective Inventory
Go to Inquiry

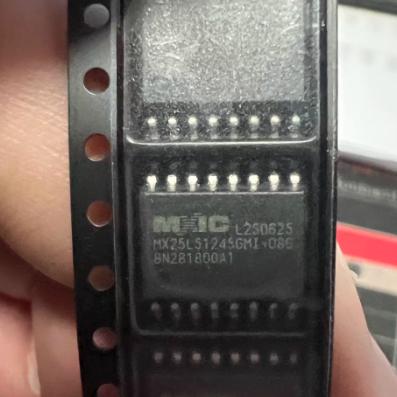

Image for reference only

Manufacturer Part：

MX25L51245GMI-08G

Package：

SOIC-8 (208mil)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX25L51245GMI-08G is a 512Mbit (64MB) Serial NOR Flash from Macronix operating at 2.7V to 3.6V with Standard/Dual/Quad SPI interface and 133 MHz clock rate. The 64MB capacity is among the largest available in 8-pin SPI NOR Flash, suitable for large firmware, Linux rootfs, and data logging. The GMI suffix indicates SOIC-8 (208mil) package with -40°C to +85°C industrial temperature range.

Key Specifications

Density 512Mbit (64MB)
Supply Voltage 2.7V to 3.6V
Interface Standard/Dual/Quad SPI
Max Clock Rate 133 MHz
Page Size 256 bytes
Sector Size 4KB uniform
Endurance 100,000 P/E cycles
Operating Temp -40°C to +85°C
Package SOIC-8 (208mil)
Part Status Active

Features

  • 512Mbit Serial NOR Flash — large 8-pin density
  • Standard/Dual/Quad SPI, 133 MHz
  • 4KB uniform sectors, 256-byte pages
  • 4-byte address mode for full 64MB access
  • Security registers and OTP area
  • 100K P/E endurance, 20-year retention

Applications

  • Large firmware and Linux rootfs storage
  • Embedded OS + application code
  • Industrial data logging
  • Networking equipment boot Flash

The MX25L51245GMI-08G is a 512Mbit (64MB) Serial NOR Flash from Macronix with Standard/Dual/Quad SPI and 133 MHz clock. The 64MB capacity is among the largest available in an 8-pin SPI NOR Flash, suitable for large firmware, embedded Linux rootfs, and data logging. The 4-byte address mode supports the full 64MB space. SOIC-8 (208mil) package with industrial temperature grade.

Serial NOR Flash with Standard/Dual/Quad SPI. 4-byte address commands required for 512Mbit density to address the full 64MB space. Fast Read Quad I/O with 6 dummy cycles provides optimal random access at 133 MHz. Read/program/erase follow standard SPI NOR Flash protocol. Quad SPI provides 4x read bandwidth for fast XIP boot.

Pin Name Type Function
1 CS# Input Chip select
2 DO/IO1 I/O Data out / IO1
3 WP#/IO2 I/O WP / IO2
4 GND Power Ground
5 DI/IO0 I/O Data in / IO0
6 CLK Input Clock
7 HOLD#/IO3 I/O Hold / IO3
8 VCC Power 3.3V supply
  • Embedded Linux rootfs (64MB)
  • Large firmware + OTA partition
  • Industrial data logging file system
  • Networking equipment boot Flash
Manufacturer Part Number Package Notes
Winbond W25Q512JVSIQ SOIC-8 512Mb QSPI alternative
GigaDevice GD25B512MEYIG SOIC-8 512Mb QSPI alternative
