MX25U12872FZNI02

128Mb Octal SPI NOR Flash, 1.8V, 200MHz, 200MB/s, WSON-8 (6x5mm), -40~85°C

3456

Effective Inventory
Go to Inquiry

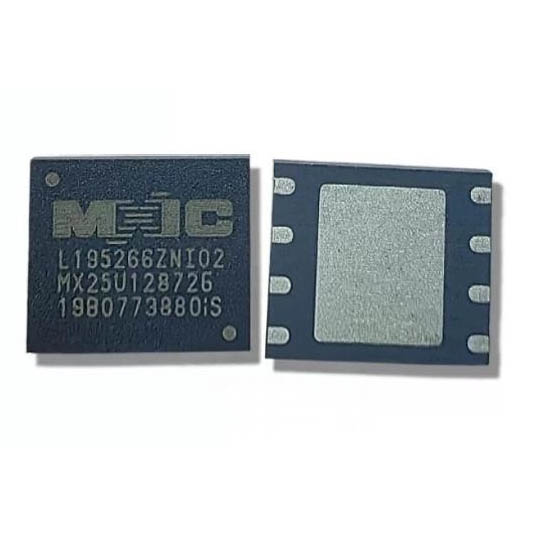

Image for reference only

Manufacturer Part：

MX25U12872FZNI02

Package：

WSON-8 (6mm x 5mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX25U12872FZNI02 is a 128Mbit (16MB) Serial NOR Flash from Macronix operating at 1.65V to 1.95V with Octal SPI (8-bit) interface and 200 MHz clock rate. The U prefix denotes 1.8V operation. The Octal SPI interface provides 8x data bandwidth (200MB/s read) compared to standard SPI, making it ideal for XIP (Execute-in-Place) applications. The ZNI suffix indicates WSON-8 (6x5mm) package with industrial temperature range.

Key Specifications

Density 128Mbit (16MB)
Supply Voltage 1.65V to 1.95V
Interface Octal SPI (8-bit I/O)
Max Clock Rate 200 MHz
Max Read Throughput 200 MB/s (Octal SPI DDR)
Page Size 256 bytes
Sector Size 4KB uniform
Endurance 100,000 P/E cycles
Operating Temp -40°C to +85°C
Package WSON-8 (6x5mm)
Part Status Active

Features

  • 128Mbit Serial NOR Flash at 1.8V
  • Octal SPI (8-bit) interface — 8x bandwidth
  • 200 MHz clock, 200 MB/s read in DDR Octal
  • Standard/Dual/Quad/Octal SPI modes
  • DDR and SDR Octal read support
  • 4KB uniform sectors, 256-byte pages
  • Security registers and OTP area
  • 100K P/E endurance, 20-year retention

Applications

  • High-performance XIP firmware storage
  • Automotive MCU boot Flash (Octal SPI)
  • AI/ML edge inference model storage
  • 5G and networking SoC code storage

The MX25U12872FZNI02 is a 128Mbit Serial NOR Flash from Macronix at 1.8V with Octal SPI (8-bit) interface and 200 MHz clock rate. Octal SPI provides 8x data bandwidth for up to 200 MB/s read throughput in DDR mode, enabling high-performance XIP (Execute-in-Place) operation. The 1.8V supply reduces power consumption by ~40% vs 3.3V variants. Standard/Dual/Quad/Octal SPI modes provide backward compatibility. The WSON-8 (6x5mm) package and industrial temperature range suit automotive, networking, and AI edge applications.

Serial NOR Flash with Octal SPI (OSPI) interface. In Octal SPI mode, all 8 data I/O lines transfer data simultaneously for 8x bandwidth vs standard SPI. DDR (Double Data Rate) Octal mode transfers data on both clock edges for up to 200 MB/s at 200 MHz. SDR Octal provides 100 MB/s at 100 MHz. The device supports standard SPI, Dual SPI (2x), Quad SPI (4x), and Octal SPI (8x) modes for backward compatibility. 4-byte address mode supports full 128Mbit density. XIP mode allows the MCU to execute code directly from Flash without copying to RAM.

Pin Name Type Function
1 CS# Input Chip select
2 SIO1 I/O Data I/O1
3 SIO2 I/O Data I/O2
4 VSS Power Ground
5 SIO0 I/O Data I/O0
6 SCLK Input Clock
7 SIO3 I/O Data I/O3
8 VCC Power 1.8V supply
  • Automotive MCU XIP boot (Octal SPI, 200MB/s)
  • 5G networking SoC firmware storage
  • AI edge inference model storage (128Mbit)
  • High-performance embedded Linux XIP
Manufacturer Part Number Package Notes
GigaDevice GD25LQ128ETYIG WSON-8 128Mb 1.8V Octal SPI alternative
Winbond W25Q128JVSIQ SOIC-8 128Mb Quad SPI (4x only)
