MX30LF1GE8AB

1Gbit Parallel SLC NAND Flash, x8, 2KB page, 1-bit ECC, 2.7-3.6V, 48-TSOP

5678

Effective Inventory
Go to Inquiry

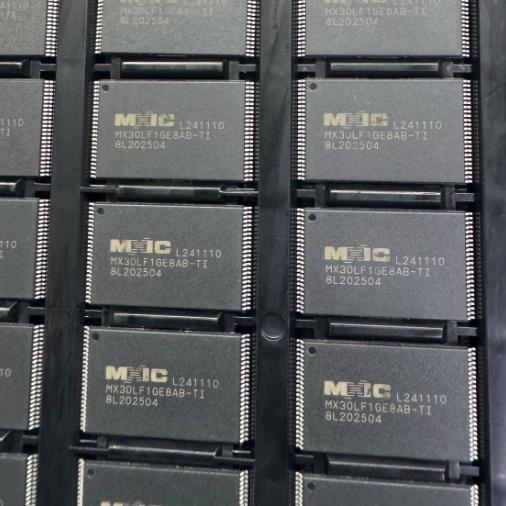

Image for reference only

Manufacturer Part：

MX30LF1GE8AB

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX30LF1GE8AB is a 1Gbit SLC NAND Flash memory from Macronix featuring a standard parallel NAND interface with x8 bus width. It operates from 2.7V to 3.6V supply voltage and supports industrial temperature range of -40°C to +85°C. The device features 2KB page size, 128KB block size, and requires 1-bit ECC for data integrity. It is compatible with ONFI 1.0 standard and is available in 48-TSOP and VFBGA packages. This SLC NAND provides reliable high-density non-volatile storage for embedded applications requiring fast read/write performance.

Key Specifications

Memory Type FLASH – NAND SLC (Non-Volatile)
Memory Size 1Gbit (128MB)
Interface Parallel NAND (ONFI 1.0)
Bus Width x8
Page Size 2048 + 64 bytes
Block Size 128K + 4K bytes
ECC Requirement 1-bit ECC
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP / 63-VFBGA

Features

  • 1Gbit SLC (Single Level Cell) NAND Flash
  • x8 data bus width
  • ONFI 1.0 compliant interface
  • Page size: (2048 + 64) bytes
  • Block size: (128K + 4K) bytes
  • 1-bit ECC requirement
  • Fast sequential read: 30ns cycle
  • Page read latency: 25us typical
  • Page program: 200us typical
  • Block erase: 1ms typical
  • 100,000 program/erase cycles
  • 10 years data retention
  • Hardware block protection
  • Unique ID (ONFI standard)
  • RoHS compliant

Applications

  • Embedded system data storage
  • Industrial control and automation
  • Consumer electronics
  • Set-top boxes and digital TVs
  • Automotive infotainment
  • Medical devices
  • Networking equipment
  • Multimedia and gaming devices

The MX30LF1GE8AB is a 1Gbit 3V SLC NAND Flash memory from Macronix’s MX30LF series. It provides high-density non-volatile storage using Single-Level Cell (SLC) NAND technology for superior reliability and endurance compared to MLC NAND. The device features a standard parallel NAND interface with x8 data bus width and is compliant with the Open NAND Flash Interface (ONFI) 1.0 specification. The memory has a page size of 2048+64 bytes and a block size of 128K+4K bytes. It requires only 1-bit ECC (Error Correction Code), simplifying host controller design. Performance specifications include 25us typical page read latency, 200us page program time, and 1ms block erase time. The device supports standard NAND commands including page read, page program, block erase, status read, and unique ID read. Hardware block protection is available via the WP# pin and PT pin with BP bits for software-configurable protection. With 100K program/erase cycle endurance and 10-year data retention, it is well-suited for a wide range of embedded storage applications in industrial, consumer, and automotive markets.

The MX30LF1G08AA operates as a standard parallel NAND Flash memory. It uses an 8-bit bidirectional data bus (I/O0-I/O7) for commands, addresses, and data transfer. Addresses are latched sequentially via the command latch enable (CLE) and address latch enable (ALE) signals. A read operation begins by issuing a read command and column/row addresses, after which the device transfers the requested page from the NAND array to the internal page buffer (tR = 25us typical). Data is then read out sequentially via the I/O bus. Program operations work similarly – data is loaded into the page buffer, then programmed into the selected page. Erase operations are performed at the block level. Since it’s SLC NAND, each memory cell stores one bit of data, providing higher reliability, faster access, and better endurance than MLC NAND. The device requires external 1-bit ECC to maintain data integrity. Status operations allow the host to monitor operation progress and results. Bad block management is handled by the host system, with factory-marked bad blocks identified during initial device initialization.

Pin Type Count Description
I/O0-I/O7 8 Data input/output – commands, addresses, data
CLE 1 Command Latch Enable
ALE 1 Address Latch Enable
CE# 1 Chip Enable, active low
RE# 1 Read Enable, active low
WE# 1 Write Enable, active low
WP# 1 Write Protect, active low
RY/BY# 1 Ready/Busy status output (open drain)
VCC 2+ Power supply 2.7V-3.6V
VSS 2+ Ground connections
NC Remaining No internal connections
  • Embedded system data and code storage
  • Industrial PLC and control systems
  • Consumer electronics products
  • Digital set-top boxes and media players
  • Automotive infotainment systems
  • Medical equipment data logging
  • Network routers and switches
  • Gaming and multimedia devices
Manufacturer Part Number Description
Micron MT29F1G08ABAEAWP-IT:E 1Gb SLC NAND, x8, 3V, TSOP
ISSI IS34ML01G081-TLI 1Gb SLC NAND Flash, x8, 3V, TSOP
Toshiba/Kioxia TC58NVG0S3HTAI0 1Gb SLC NAND, x8, 3V, TSOP
Macronix MX30LF1G18AC 1Gb SLC NAND, 4-bit ECC, enhanced version
