Product Overview

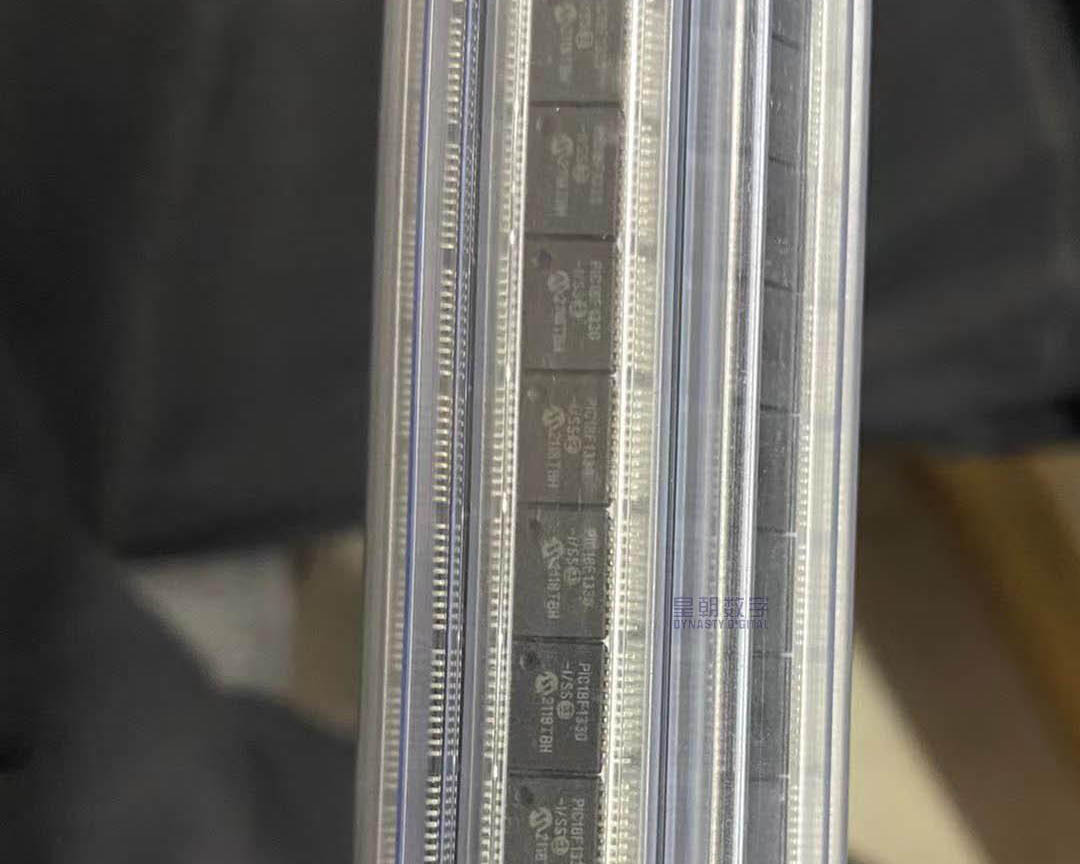

The PIC18F1330-I is an 18-pin, 8-bit high-performance Flash microcontroller from Microchip Technology featuring the PIC18 architecture with specialized motor control peripherals. With 4096 single-word instructions and a 31-level deep hardware stack, this compact MCU offers 8KB (4K x 16) of Flash program memory, 256 bytes of RAM, and 128 bytes of data EEPROM. Operating at up to 40 MHz (10 MIPS), it integrates a 4-channel 10-bit ADC, three analog comparators, six PWM outputs with power control features, a 16-bit EUSART with LIN support, and an 8 MHz internal oscillator. Designed specifically for motor control and power conversion applications, the PIC18F1330’s Power Control PWM module provides flexible half-bridge/full-bridge drive capabilities with auto-shutdown on fault conditions. Its small 18-pin footprint makes it ideal for space-constrained motor control, power supply, lighting, and automotive applications.
Key Specifications
| Core Architecture | 8-bit PIC18 RISC Architecture |
| Program Memory | 8KB Flash (4K x 16 words) |
| RAM | 256 bytes |
| Data EEPROM | 128 bytes |
| Maximum Speed | 40 MHz (10 MIPS) |
| Operating Voltage | 4.2V to 5.5V |
| I/O Pins | 16 |
| ADC | 10-bit, 4 channels, 200 Ksps |
| Comparators | 3 analog comparators |
| Timers | 2 timers (Timer0 8-bit, Timer1 16-bit) |
| PWM | 6 PWM outputs (Power Control PWM module), 14-bit |
| Communication | EUSART (UART/LIN) |
| Internal Oscillator | 8 MHz, with 6 selectable frequencies |
| PLL | 4x PLL (available with internal and HS modes) |
| Stack Levels | 31-level hardware stack |
| Hardware Multiplier | 8 x 8 single-cycle hardware multiplier |
| Low Power | nanoWatt technology |
| Debug | In-Circuit Debug (ICD) |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Package | 18-pin PDIP / SOIC / SSOP / QFN |
Features
- High-performance PIC18 RISC CPU with 4096 single-word instructions
- 10 MIPS operation at 40 MHz
- 16-bit wide instructions, 8-bit wide data path
- 31-level deep software accessible hardware stack
- 8 x 8 single-cycle hardware multiplier
- Priority levels for interrupts
- Power Control PWM Module: 6 PWM outputs, 14-bit resolution
- Half-bridge, full-bridge, and push-pull PWM modes
- Programmable dead time and auto-shutdown on fault
- 4-channel 10-bit ADC with 200 Ksps conversion rate
- Three analog comparators with programmable voltage reference
- Enhanced Addressable USART with LIN/J2602 support
- Auto-baud detect and auto-wake-up on Start bit
- Internal 8 MHz oscillator with 6 selectable frequencies (31 kHz-8 MHz)
- 4x PLL for up to 32 MHz operation from internal oscillator
- Fail-Safe Clock Monitor for reliable operation
- Two-Speed Oscillator Start-up
- Timer0: 8-bit timer/counter with 8-bit prescaler
- Timer1: 16-bit timer/counter with prescaler
- Power-managed modes: Run, Idle, Sleep
- Extended Watchdog Timer (WDT) with 16-bit prescaler
- Brown-out Reset (BOR) and Power-on Reset (POR)
- Self-programmable under software control
- In-Circuit Serial Programming (ICSP) via two pins
- In-Circuit Debug (ICD) support
- Programmable code protection
- Recommended for Automotive Design
Applications
- Brushless DC (BLDC) motor control
- Switch-mode power supplies (SMPS) and DC-DC converters
- LED lighting drivers and ballasts
- Automotive motor control and sensor interfaces
- Fan and pump control systems
- Power management and battery chargers
- Industrial small motor drives
