PIC32MZ1024ECG100-I

32-bit MIPS microAptiv DSP MCU, 1MB Flash, 512KB RAM, 200MHz/330DMIPS, 16KB I-cache+4KB D-cache, MMU, 12-bit ADC 40ch, 1

8972

Effective Inventory
Go to Inquiry

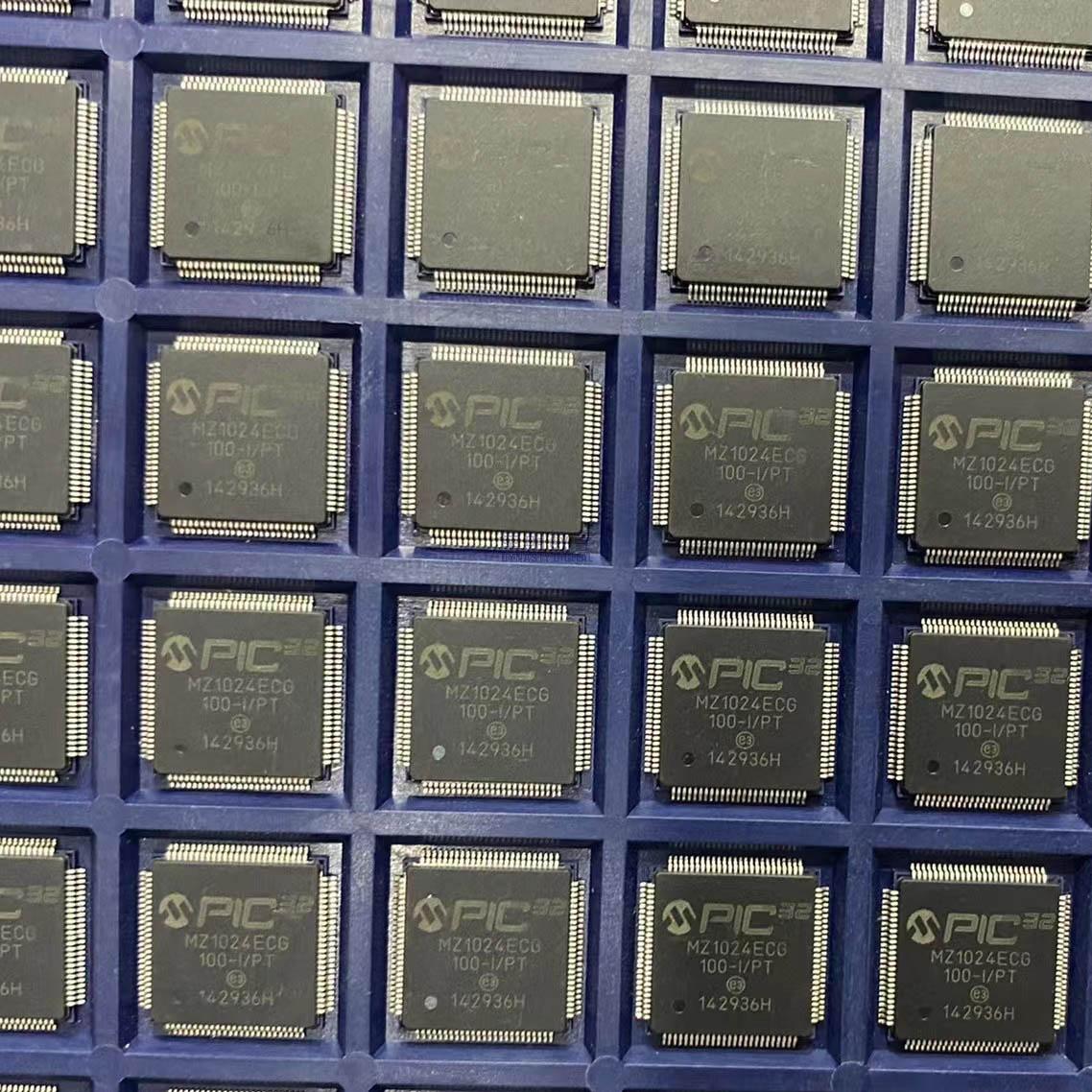

Image for reference only

Manufacturer Part：

PIC32MZ1024ECG100-I

Package：

100-pin TQFP (12x12x1.05mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC32MZ1024ECG100-I is a high-performance electronic component from Microchip, featuring a 100-pin TQFP (12x12x1.05mm) package. It is designed for a wide range of applications including industrial, consumer, and communication systems, delivering reliable performance and excellent value.

Key Specifications

Parameter 32-bit MIPS microAptiv DSP MCU
Parameter 1MB Flash
Parameter 512KB RAM
Parameter 200MHz/330DMIPS
Parameter 16KB I-cache+4KB D-cache
Parameter MMU
Parameter 12-bit ADC 40ch
Parameter 10/100 Ethernet
Parameter Hi-Speed USB OTG
Parameter 6UART/7SPI/5I2C
Parameter I2S audio
Parameter PMP
Parameter 2.2-3.6V
Parameter -40~85C
Package 100-pin TQFP (12x12x1.05mm)

Features

  • 200MHz MIPS32 microAptiv DSP-enhanced core (330 DMIPS)
  • 16KB I-cache + 4KB D-cache, MMU for OS support
  • DSP extensions: 4×64-bit accumulators, single-cycle MAC
  • microMIPS mode for up to 35% code compression
  • 1MB Flash program memory, 512KB RAM
  • 12 DMA channels (8 general + 4 dedicated)
  • 10/100 Ethernet MAC with dedicated DMA
  • Hi-Speed USB 2.0 OTG with dedicated DMA
  • 40-channel 12-bit ADC up to 18 Msps total
  • Two analog comparators with programmable Vref
  • On-chip temperature sensor (+/-2C accuracy)
  • Nine 16-bit timers, 9 IC/OC PWM channels
  • Six UART (25Mbps, LIN 1.2, IrDA)
  • Six SPI + SQI (50MHz) = 7 SPI ports
  • Five I2C (1 Mbaud, SMBus compatible)
  • I2S/LJ/RJ audio interfaces with fractional N clock
  • Parallel Master Port (PMP) for external memory/display
  • Serial Quad Interface (SQI) for serial Flash
  • Peripheral Pin Select (PPS) for flexible I/O
  • Hardware RTCC
  • Windowed WDT and Deadman Timer

Applications

  • High-performance industrial control and automation
  • Audio processing and digital audio equipment
  • Connected HMI with graphical displays
  • IoT gateways and edge computing
  • Industrial Ethernet and protocol conversion
  • Advanced motor control with DSP algorithms
  • Multi-channel high-speed data acquisition

The PIC32MZ1024ECG100-I is a high-performance electronic component manufactured by Microchip. Packaged in a 100-pin TQFP (12x12x1.05mm), this device offers an excellent balance of performance, power efficiency, and cost-effectiveness for demanding electronic applications.

Key characteristics include: 200MHz MIPS32 microAptiv DSP-enhanced core (330 DMIPS); 16KB I-cache + 4KB D-cache, MMU for OS support; DSP extensions: 4×64-bit accumulators, single-cycle MAC; microMIPS mode for up to 35% code compression; 1MB Flash program memory, 512KB RAM. It is well-suited for use in High-performance industrial control and automation, Audio processing and digital audio equipment, Connected HMI with graphical displays.

With its robust design and reliable performance across the specified operating range, the PIC32MZ1024ECG100-I is an excellent choice for both new designs and drop-in replacement applications.

The PIC32MZ1024ECG100-I operates based on semiconductor principles optimized for its specific function. It receives input signals or power, processes them according to its internal circuitry, and delivers the expected output with high accuracy and reliability.

Internal blocks may include signal conditioning, power regulation, and protection circuits to ensure stable operation across the full range of specified operating conditions. The device is designed to minimize power consumption while maximizing performance efficiency.

For detailed operational characteristics, timing diagrams, and electrical specifications, please refer to the official datasheet.

Pin Group Function
Power Pins VDD/VCC (positive supply), VSS/GND (ground)
Signal I/O Pins Input/output signals for device operation
Control Pins Configuration and control interface pins

Note: Exact pin assignment varies by package variant (100-pin TQFP (12x12x1.05mm)). Refer to the official datasheet for complete pin descriptions and package dimensions.

  • High-performance industrial control and automation
  • Audio processing and digital audio equipment
  • Connected HMI with graphical displays
  • IoT gateways and edge computing
  • Industrial Ethernet and protocol conversion
  • Advanced motor control with DSP algorithms
  • Multi-channel high-speed data acquisition
Part Number Description
PIC32MZ2048ECG100-I 2MB Flash, same pinout
PIC32MZ1024ECH100-I adds 2x CAN 2.0b
PIC32MX795F512L-80I lower cost PIC32MX, 80MHz
STM32F767VGT6 Cortex-M7, 216MHz, 1MB Flash
