PJA3409-AU

PNP BJT Transistor, General Purpose, SOT-23

50000

Effective Inventory

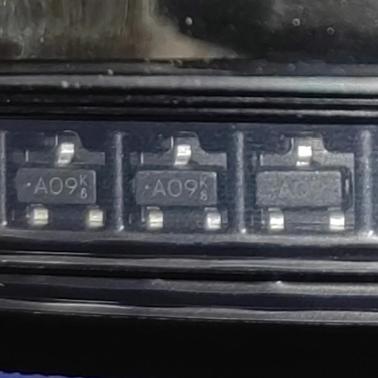

Image for reference only

Manufacturer Part：

PJA3409-AU

Package：

SOT-23

Brand：

on-semiconductor

Product Categories：

Integrated Circuits ICs

Other recommendations you may be interested in.

MSP430F5304IRGZR

Description

Product Overview

The PJA3409-AU is a surface-mount PNP silicon epitaxial planar transistor. It is designed for general purpose amplification and switching applications. The AU suffix typically indicates SOT-23 or similar small surface mount package with lead-free termination.

Key Specifications

Type	PNP Bipolar Transistor (BJT)
Polarity	PNP
Package	SOT-23 (SMD)
VCEO	Up to -40V (typical)
IC (max)	Up to -500mA (typical)
PD	~200mW
hFE	100-300 (typical)
Ft	~100MHz

Features

PNP silicon planar transistor
SOT-23 SMD package
High current gain
Low saturation voltage
Suitable for switching and amplification
Lead-free / RoHS compliant
Note: Verify detailed specs with manufacturer datasheet

Applications

General purpose amplification
Signal switching
Interface circuits
Load driving
Power management
Consumer electronics

Product Introduction:PJA3409-AU Product Introduction

The PJA3409-AU is a surface-mount PNP silicon epitaxial planar transistor. It is designed for general purpose amplification and switching applications. The AU suffix typically indicates SOT-23 or similar small surface mount package with lead-free termination.

Working Principle:PJA3409-AU Working Principle

PNP bipolar junction transistors operate with current flowing from emitter to collector when the base-emitter junction is forward biased. The PJA3409 uses the base current to control a larger collector-emitter current, enabling amplification and switching functions.

Pin Description:PJA3409-AU Pin Definition and Functions

Pin	Name	Description
1	Base (B)	Base terminal – control input
2	Emitter (E)	Emitter terminal
3	Collector (C)	Collector terminal

Application Scenarios:In which products and applications isPJA3409-AU used

General purpose amplification
Signal switching
Interface circuits
Load driving
Power management
Consumer electronics
