R5F109BCK

RL78/F13 16-bit automotive MCU, 48KB Flash, 4KB data Flash, 3KB RAM, 32MHz (1.6DMIPS/MHz), LIN 2.1 (RLIN3), 16ch 10-bit

13982

Effective Inventory
Go to Inquiry

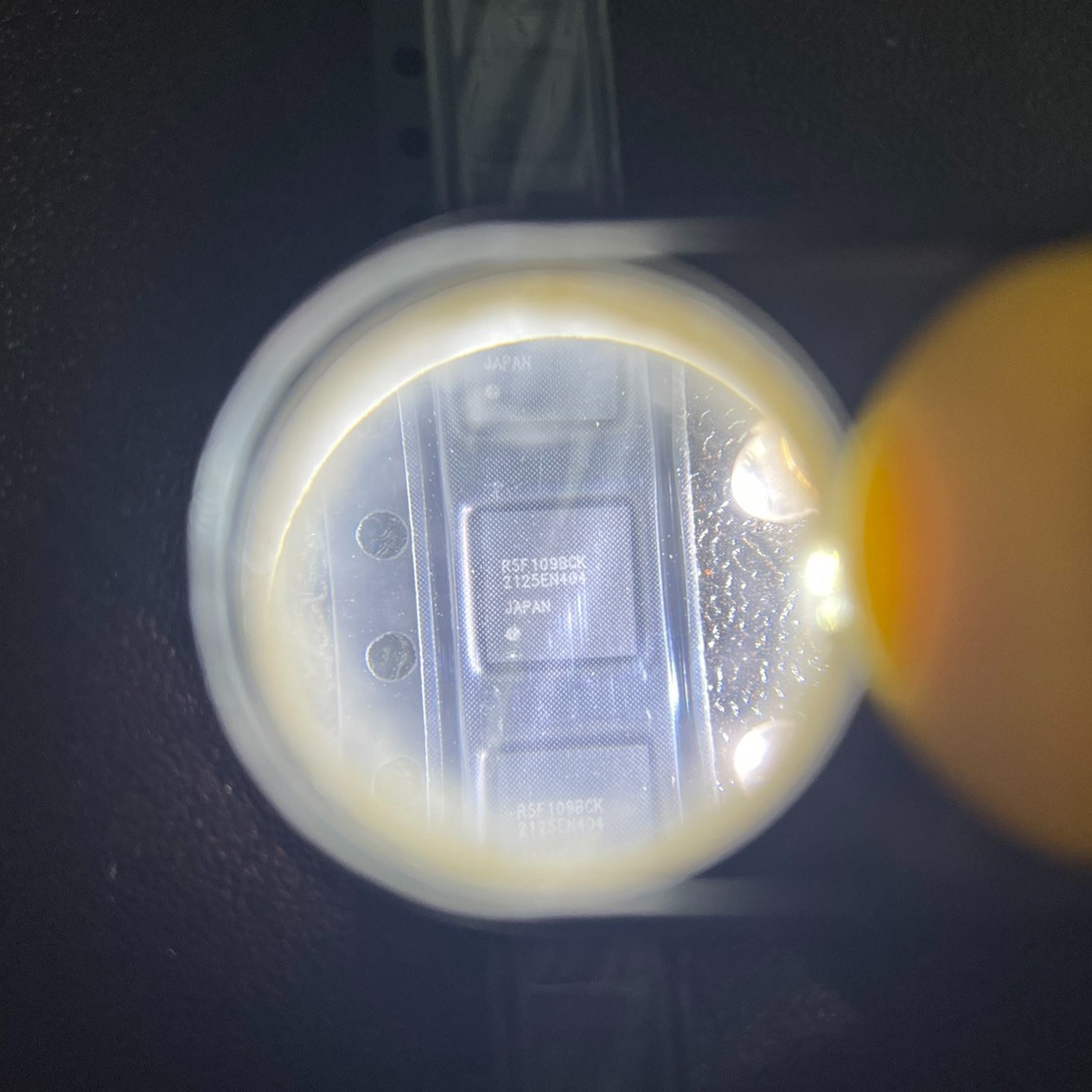

Image for reference only

Manufacturer Part：

R5F109BCK

Package：

32-pin HWQFN (5x5mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The R5F109BCK is a high-performance electronic component from Renesas, featuring a 32-pin HWQFN (5x5mm) package. It is designed for a wide range of applications including industrial, consumer, and communication systems, delivering reliable performance and excellent value.

Key Specifications

Parameter RL78/F13 16-bit automotive MCU
Parameter 48KB Flash
Parameter 4KB data Flash
Parameter 3KB RAM
Parameter 32MHz (1.6DMIPS/MHz)
Parameter LIN 2.1 (RLIN3)
Parameter 16ch 10-bit ADC
Parameter 12-ch TAU timers
Parameter 3 comparators
Parameter op-amp
Parameter AEC-Q100
Parameter -40~105C
Package 32-pin HWQFN (5x5mm)

Features

  • RL78 16-bit core (78K0R derived), 1.6 DMIPS/MHz
  • True low-power: 66uA/MHz active, 230nA STOP mode
  • 32MHz high-speed on-chip oscillator (+/-1% accuracy)
  • 48KB code Flash, 4KB data Flash (background operation)
  • 3KB RAM with 1-bit ECC error correction
  • 16-channel 10-bit SAR ADC (3.4us conversion)
  • Timer Array Unit: 8+4 channels 16-bit
  • RTC with calendar function
  • RLIN3 module: LIN 2.1 / UART, autobaud
  • CSI/SPI, UART, simplified I2C serial interfaces
  • Data Transfer Controller (DTC) – 36 sources
  • Three analog comparators with timer interlock
  • Integrated operational amplifier
  • 16×16 multiply, 32/32 divide, MAC unit
  • Window Watchdog Timer (WWDT)
  • Flash CRC operation
  • Illegal instruction execution detection
  • Clock monitor and frequency detection
  • SNOOZE mode (ADC/UART op while CPU sleeps)
  • Peripheral I/O redirection
  • AEC-Q100 automotive qualified

Applications

  • Automotive body electronics and LIN bus nodes
  • Automotive sensor modules and smart sensors
  • Motor control (brushed DC, stepper, BLDC)
  • Industrial automation and sensor interfaces
  • Power supply control and monitoring
  • Appliance motor control and user interface
  • LIN-connected lighting control modules
  • Battery-powered industrial sensors

The R5F109BCK is a high-performance electronic component manufactured by Renesas. Packaged in a 32-pin HWQFN (5x5mm), this device offers an excellent balance of performance, power efficiency, and cost-effectiveness for demanding electronic applications.

Key characteristics include: RL78 16-bit core (78K0R derived), 1.6 DMIPS/MHz; True low-power: 66uA/MHz active, 230nA STOP mode; 32MHz high-speed on-chip oscillator (+/-1% accuracy); 48KB code Flash, 4KB data Flash (background operation); 3KB RAM with 1-bit ECC error correction. It is well-suited for use in Automotive body electronics and LIN bus nodes, Automotive sensor modules and smart sensors, Motor control (brushed DC, stepper, BLDC).

With its robust design and reliable performance across the specified operating range, the R5F109BCK is an excellent choice for both new designs and drop-in replacement applications.

The R5F109BCK operates based on semiconductor principles optimized for its specific function. It receives input signals or power, processes them according to its internal circuitry, and delivers the expected output with high accuracy and reliability.

Internal blocks may include signal conditioning, power regulation, and protection circuits to ensure stable operation across the full range of specified operating conditions. The device is designed to minimize power consumption while maximizing performance efficiency.

For detailed operational characteristics, timing diagrams, and electrical specifications, please refer to the official datasheet.

Pin Group Function
Power Pins VDD/VCC (positive supply), VSS/GND (ground)
Signal I/O Pins Input/output signals for device operation
Control Pins Configuration and control interface pins

Note: Exact pin assignment varies by package variant (32-pin HWQFN (5x5mm)). Refer to the official datasheet for complete pin descriptions and package dimensions.

  • Automotive body electronics and LIN bus nodes
  • Automotive sensor modules and smart sensors
  • Motor control (brushed DC, stepper, BLDC)
  • Industrial automation and sensor interfaces
  • Power supply control and monitoring
  • Appliance motor control and user interface
  • LIN-connected lighting control modules
  • Battery-powered industrial sensors
Part Number Description
R5F10BBFK 64KB Flash, LIN+CAN
R5F10AGC 32KB Flash, LIN only
R5F109FCK 96KB Flash, 48-pin
Microchip PIC16F18855 8-bit, LIN
NXP S32K116 Cortex-M0+, CAN FD
Recommend Parts
