SAK-TC1782F-320F180HR

AURIX TC1782 32-bit TriCore MCU, 180MHz, 2.5MB Flash, 176-LQFP

12422

Effective Inventory
Go to Inquiry

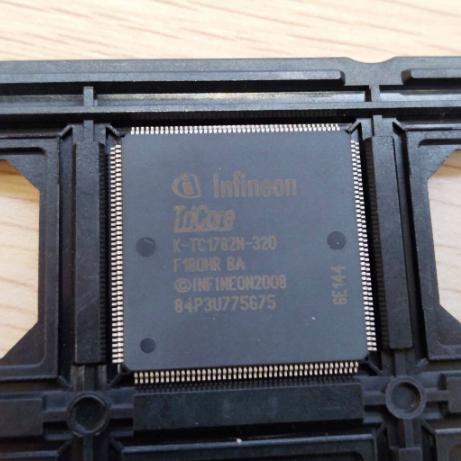

Image for reference only

Manufacturer Part：

SAK-TC1782F-320F180HR

Package：

PG-LQFP-176-2

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The SAK-TC1782F-320F180HR is a 32-bit AURIX TC1782 MCU from Infineon with TriCore V1.3.1 at 180MHz. 2.5MB Flash, 176KB RAM, 128KB EEPROM, 86 I/Os, CAN/FlexRay, 36-ch ADC. 176-LQFP, AEC-Q100.

Key Specifications

Manufacturer Infineon Technologies
Core TriCore V1.3.1, 32-bit
CPU Frequency 180 MHz
Flash 2.5 MB
RAM 176 KB
EEPROM 128 KB
GPIO 86
Interfaces ASC, CAN, FlexRay, MLI, MSC, SSC
ADC 8×10-bit + 32×12-bit
Temperature -40°C to +125°C
Package 176-LQFP
Qualification AEC-Q100

Features

  • TriCore 32-bit superscalar pipeline
  • 180MHz CPU with single-precision FPU
  • 2.5MB Flash, 176KB RAM
  • CAN, FlexRay connectivity
  • 36-channel ADC
  • AEC-Q100 automotive qualified

Applications

  • Automotive powertrain control
  • Chassis and safety systems
  • Industrial real-time control
  • Motor drive inverters

AURIX TC1782 32-bit TriCore MCU, 180MHz, 2.5MB Flash, 176-LQFP, AEC-Q100.

TriCore V1.3.1 superscalar CPU at 180MHz. FPU handles single-precision floating point. CAN and FlexRay controllers provide automotive networking.

Pin Name Function
1-86 GPIO 86 I/O Pins
  • Automotive powertrain control
  • Chassis and safety systems
  • Industrial real-time control
  • Motor drive inverters
Part Notes
TC1782F320F180HRBAKXUMA2 Full ordering code
