ST16C550CJ

Single UART with 16-byte FIFO, 1.5Mbps, 5V/3.3V, PLCC-44

5000

Effective Inventory
Go to Inquiry

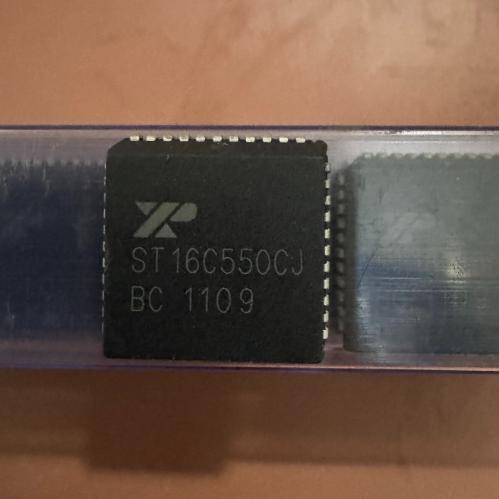

Image for reference only

Manufacturer Part：

ST16C550CJ

Package：

PLCC-44

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The ST16C550CJ is a universal asynchronous receiver and transmitter (UART) from Exar (MaxLinear) with 16-byte transmit and receive FIFOs. It is pin-to-pin compatible with the industry standard 16C550. The CJ suffix denotes a 44-pin PLCC package for commercial temperature range (0°C to +70°C). Supports data rates up to 1.5Mbps at 5V operation.

Key Specifications

Type Single UART (16C550 compatible)
Channels 1
FIFO 16-byte TX / 16-byte RX
Max Data Rate 1.5 Mbps (5V), 1 Mbps (3.3V)
Voltage 2.97V ~ 5.5V
Package 44-pin PLCC (CJ)
Temp Range 0°C ~ 70°C (commercial)

Features

  • Industry standard 16C550 pin compatible
  • 2.97V to 5.5V wide supply range
  • 16-byte transmit/receive FIFOs
  • Up to 1.5Mbps data rate at 5V
  • Four selectable RX FIFO interrupt triggers
  • Full modem control interface
  • Internal loopback diagnostics
  • 44-pin PLCC package

Applications

  • Serial communication interfaces
  • Industrial control systems
  • Embedded systems
  • Network equipment
  • POS terminals
  • Battery powered devices

The ST16C550CJ is a universal asynchronous receiver and transmitter (UART) from Exar (MaxLinear) with 16-byte transmit and receive FIFOs. It is pin-to-pin compatible with the industry standard 16C550. The CJ suffix denotes a 44-pin PLCC package for commercial temperature range (0°C to +70°C). Supports data rates up to 1.5Mbps at 5V operation.

The ST16C550 operates on a 16C550 compatible architecture. It converts parallel data from the CPU bus into serial data for transmission, and converts received serial data back into parallel form. The 16-byte FIFOs reduce CPU interrupt overhead compared to the 16C450. A programmable baud rate generator divides the input clock to generate standard and custom baud rates from 50bps to 1.5Mbps.

Pin Group Name Description
Data Bus D0-D7 8-bit bidirectional data bus
Address A0-A2 Register select
Control IOR#, IOW#, CS0, CS1, CS2# Read/write and chip select
Serial RX, TX Receive/transmit data
Modem CTS#, RTS#, DSR#, DTR#, DCD#, RI# Modem control signals
Interrupt INT, RXRDY#, TXRDY# Interrupt and status
Clock XTAL1, XTAL2, RCLK Crystal oscillator/receive clock
Other RESET, VCC, GND Reset and power
  • Serial communication interfaces
  • Industrial control systems
  • Embedded systems
  • Network equipment
  • POS terminals
  • Battery powered devices
Manufacturer Part Number Description
TI TL16C550C Compatible single UART
NXP SC16C550B Equivalent UART
Exar ST16C550CQ TQFP-48 package
