ST16C550CQ

Single UART with 16-byte FIFO, 1.5Mbps, 5V/3.3V, TQFP-48

5000

Effective Inventory
Go to Inquiry

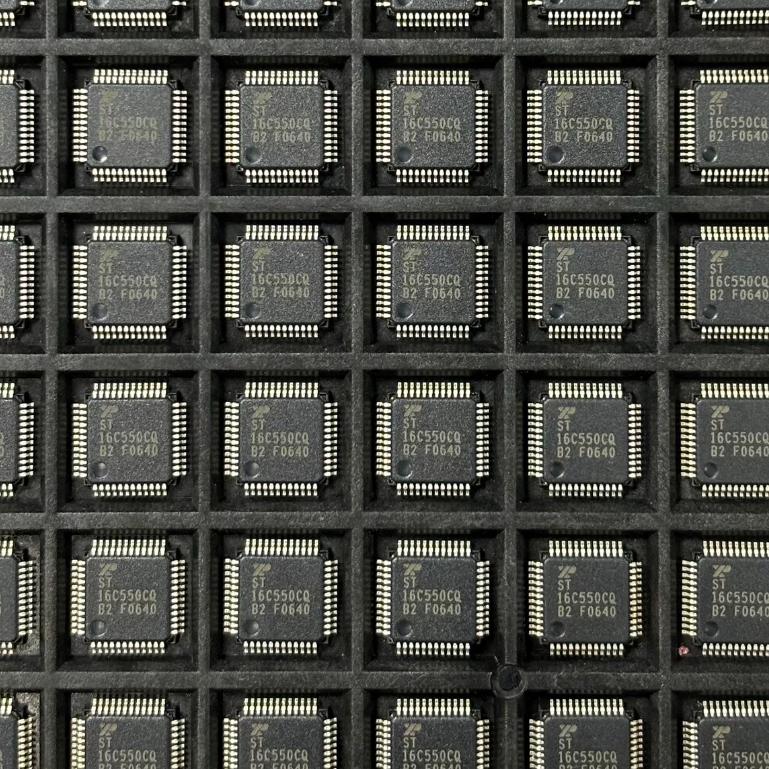

Image for reference only

Manufacturer Part：

ST16C550CQ

Package：

TQFP-48

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The ST16C550CQ is the 48-pin TQFP package variant of the Exar ST16C550 UART series. It offers the same 16-byte FIFO, 1.5Mbps maximum data rate, and full 16C550 compatibility in a compact surface-mount package. Commercial temperature range (0°C to +70°C).

Key Specifications

Type Single UART (16C550 compatible)
Channels 1
FIFO 16-byte TX/RX
Max Data Rate 1.5 Mbps (5V)
Voltage 2.97V ~ 5.5V
Package 48-pin TQFP (CQ)
Temp Range 0°C ~ 70°C (commercial)

Features

  • 16C550 pin compatible
  • Compact 48-pin TQFP package
  • 16-byte FIFOs
  • Up to 1.5Mbps at 5V
  • 2.97V-5.5V operation
  • Full modem interface
  • Low operating current

Applications

  • Compact serial interfaces
  • Portable electronics
  • Handheld terminals
  • PDAs
  • Battery powered devices
  • Network appliances

The ST16C550CQ is the 48-pin TQFP package variant of the Exar ST16C550 UART series. It offers the same 16-byte FIFO, 1.5Mbps maximum data rate, and full 16C550 compatibility in a compact surface-mount package. Commercial temperature range (0°C to +70°C).

Same architecture as ST16C550CJ: 16C550 compatible UART with 16-byte FIFOs, programmable baud rate generator, and full modem interface.

Pin Group Name Description
Data Bus D0-D7 8-bit data
Address A0-A2 Register select
Control IOR#, IOW#, CS0, CS1, CS2# Bus control
Serial RX, TX Serial data
Modem CTS#, RTS#, DSR#, DTR#, DCD#, RI# Modem control
Interrupt INT Interrupt output
Clock XTAL1, XTAL2 Crystal oscillator
  • Compact serial interfaces
  • Portable electronics
  • Handheld terminals
  • PDAs
  • Battery powered devices
  • Network appliances
Manufacturer Part Number Description
TI TL16C550CPF TQFP-48 compatible
Exar ST16C550CJ PLCC-44 package
Exar ST16C550IQ Industrial temp TQFP
